Fitment

Fit For Fiat 500 Old Model 2 Cylinder 130mm
Notice: Other options C/C: 118/120/124/126mm

Specification

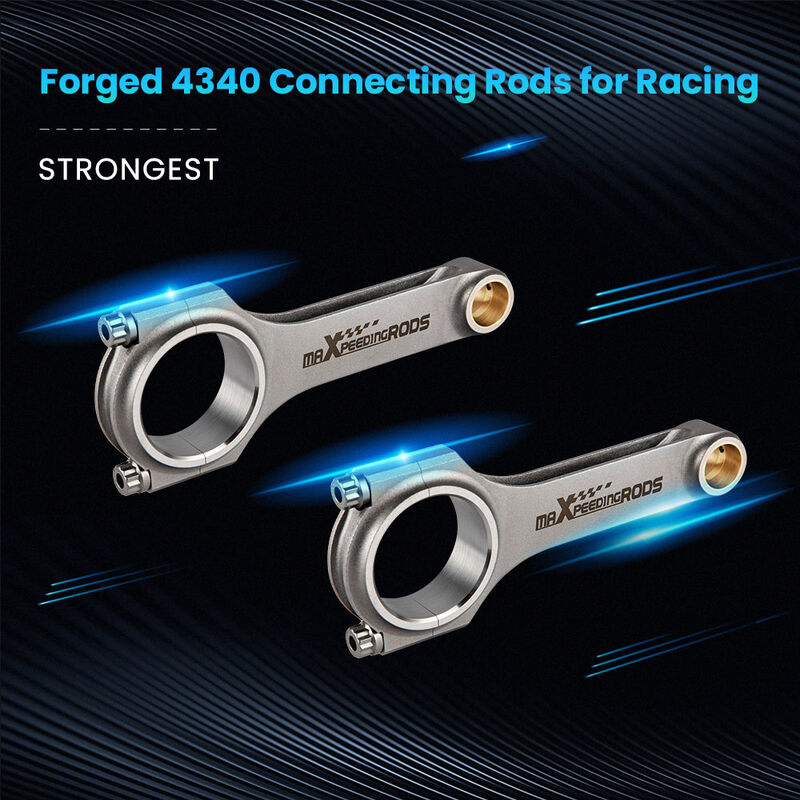

Type: Forged 4340 aircraft chrome moly quality steel for racing

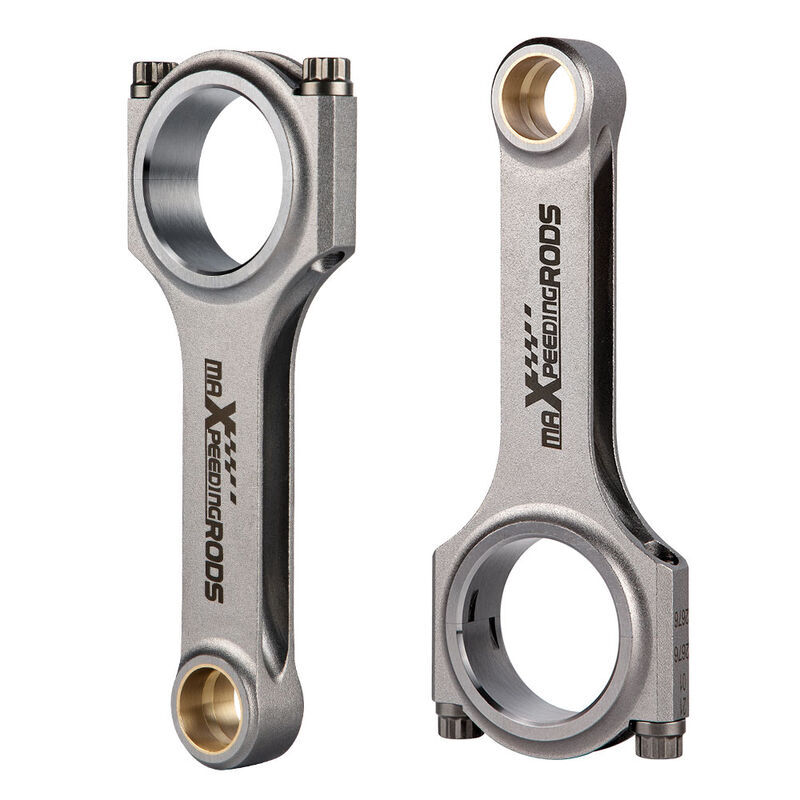

H-beam Conrods Quantity: 2 Pieces a set
Bolts: Including Genuine 5/16" ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 5/16"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm

Dimensions

Center to center length: 130mm/5.118"
Big end diameter: 47.13mm/1.856"
Small end diameter: 20mm/0.787"
Big end width: 24.7mm/0.972"
Small end width: 18.5mm/0.728"

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

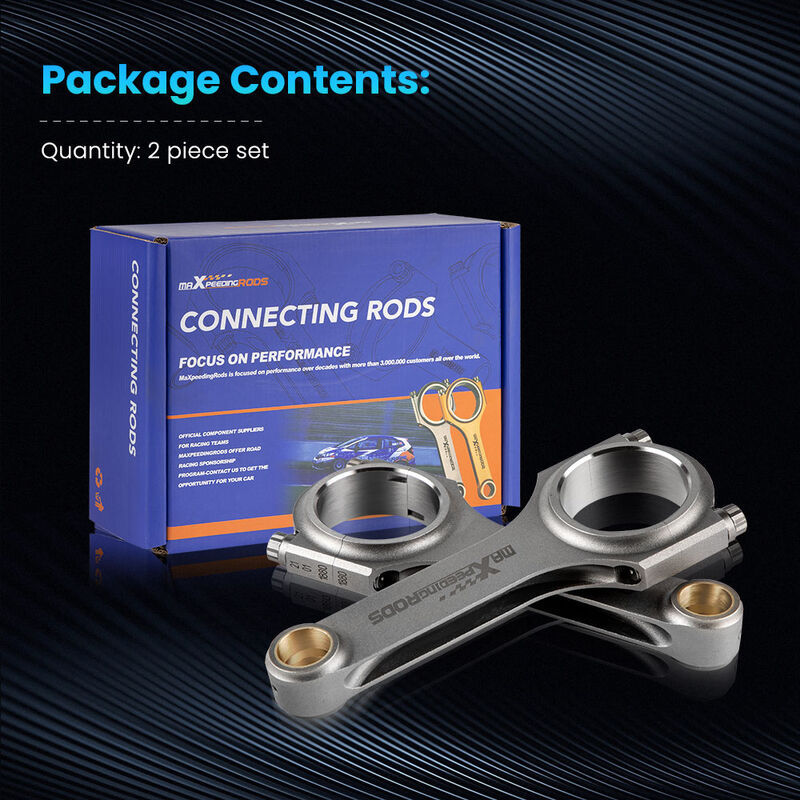

Package

2 x Connecting Rods



Note

There are titanium-plated upgrade models;
Professional installation is highly recommended ;
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-FIA-130
Brand MAX PEEDING RODS
Shipping Weight 2.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
