**Supplier Stock

• Ships Directly From Our Supplier
• No Pickup Available
• Not Eligible For Same-Day Dispatch



Fitment

Fit For Volvo B230 engines
Fit For Volvo 740 B230 engines 2.3 1984–1992
Fit For Volvo 760 B230 engines 2.3 1982–1990
Fit For Volvo 940 B230 engines 2.3 1990–1998
Fit For Volvo 240 B230 engines 2.3 1983–1993

Specification

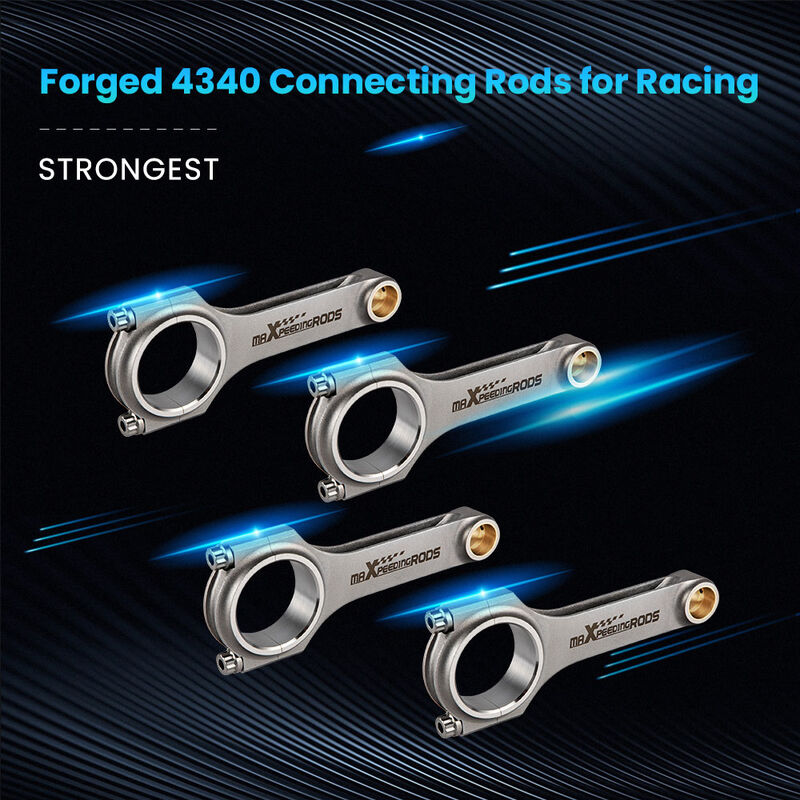

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for Racing
H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm

Dimensions

Center to center length:152mm/5.984"
Big end diameter:52mm/2.047"
Small end diameter:23mm/0.906"
Big end width:24.8mm/0.976"
Small end width:24.8mm/0.976"

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

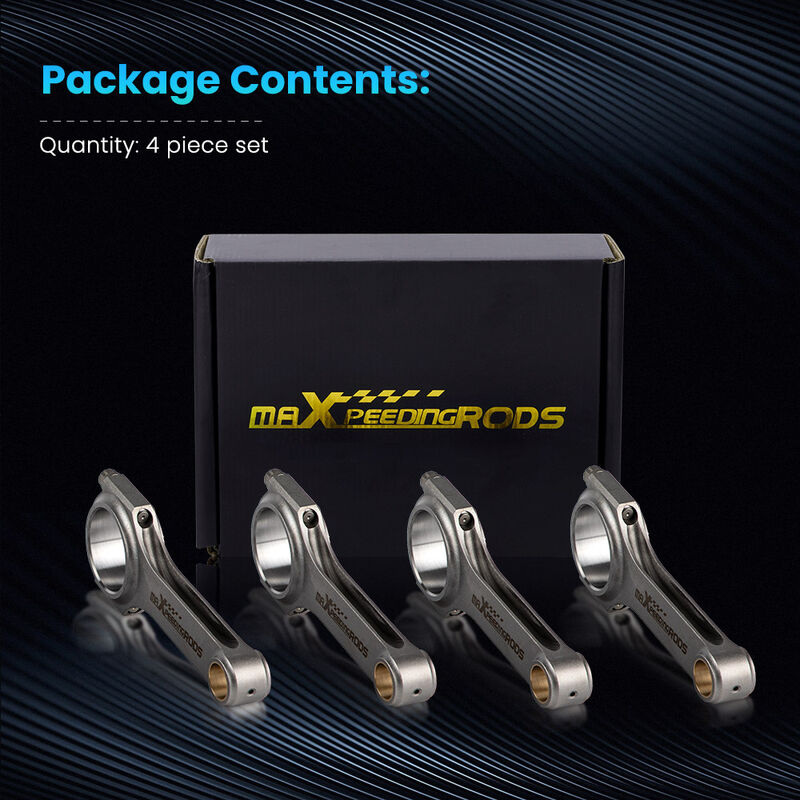

Package

4 x Connecting Rods



Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-VOL-152
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.210m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006300000m3
