Fitment

Fit For BMW B38A15M0 / B38B15M0 1.5T 3 cylinder
Fitment Details:
75 kW (101 hp):
Fit For BMW F45/F46 216i Active Tourer / Gran Tourer 2015-on
Fit For BMW F55/F56 compatible for Mini One 2018-on
80 kW (107 hp):
Fit For BMW F20/F21 116i 2015-on
100 kW (134 hp):
Fit For BMW F20/F21 118i 2015-on
Fit For BMW F22/F23 218i coupe / convertible 2015-on
Fit For BMW F45/F46 218i Active Tourer / Gran Tourer 2014-on
Fit For BMW F30/F31 318i 2015-on
Fit For BMW F48 X1 sDrive18i 2015-on
Fit For BMW F55/F56 Fit For Mini Cooper 2014-on
Fit For BMW F54 Fit For Mini Clubman 2015-on
Fit For BMW F60 Fit For Mini Countryman 2017-on
Fit For BMW F39 X2 sDrive18i 2017-on
Pin Type: Floating Pin Piston

Specification

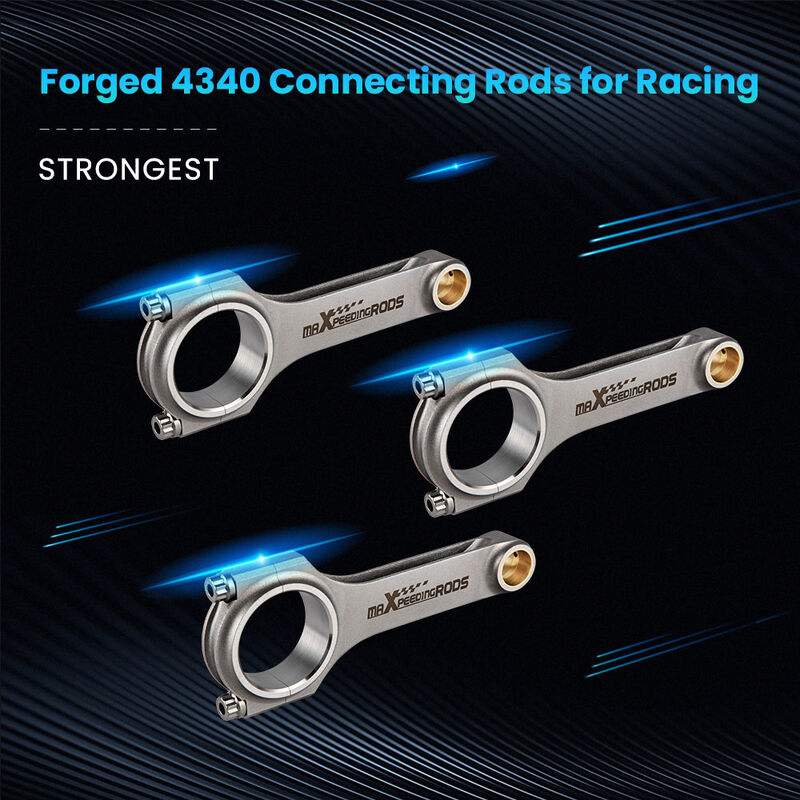

Type: Forged 4340 aircraft chrome moly quality steel for racing

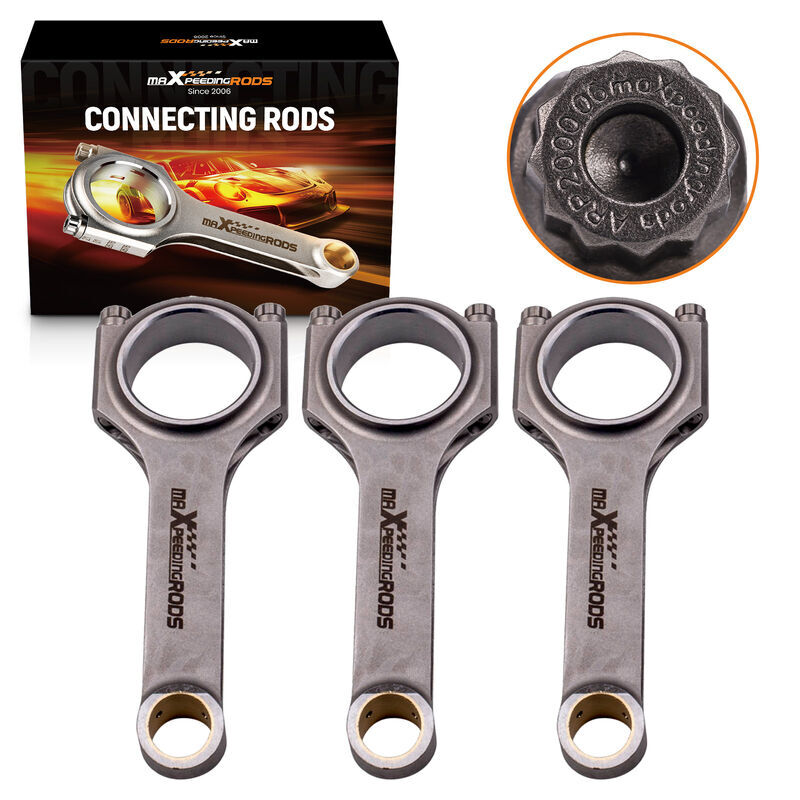

H-beam Conrods Quantity: 3 Pieces as showing in picture
Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Advertised Horsepower Rating:200HP/piece
Top acceleration: 9000rpm

Dimension

Center to center length:148.2mm/5.835"
Big end diameter:48.6mm/1.913"
Small end diameter:22mm/0.866"
Big end width:24mm/0.945"
Small end width:21mm/0.827"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

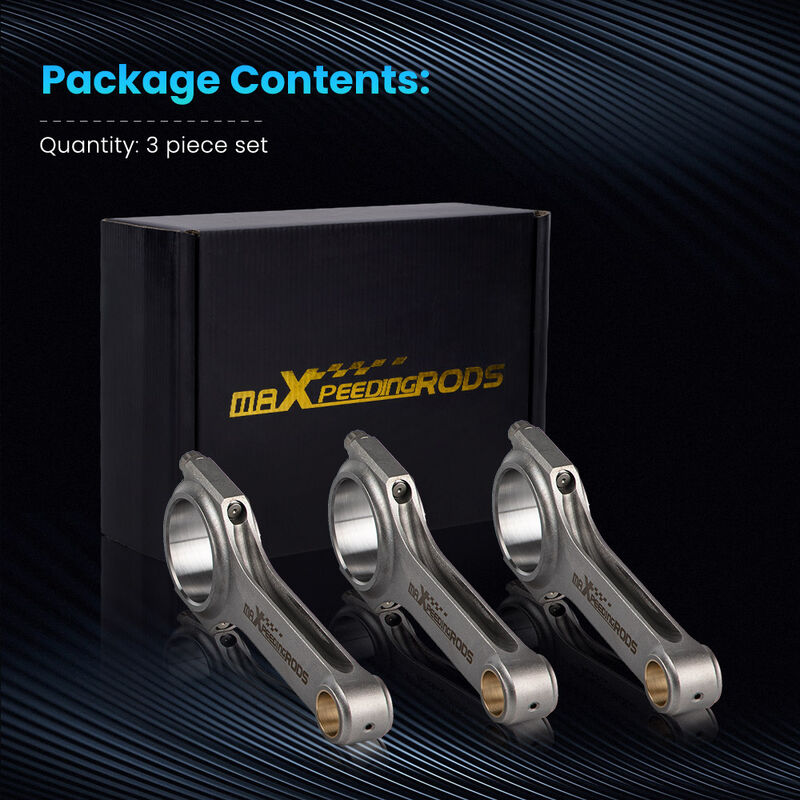

Package

3 x Connecting Rods

Note

There are titanium-plated upgrade models；
Professional installation is highly recommended ；
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
