Fitment

Fit For Datsun 1200 A12
Fit For Nissan Sunny B120 all year
Fit For Nissan Vanette C120 A12 C22 A12S
Don't fit for B310 A12 Van

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Dimensions

Center to center length: 121.5mm
Big end diameter: 48mm
Small end diameter: 17.45mm
Big end width: 24.3mm
Small end width: 21.6mm

Specification

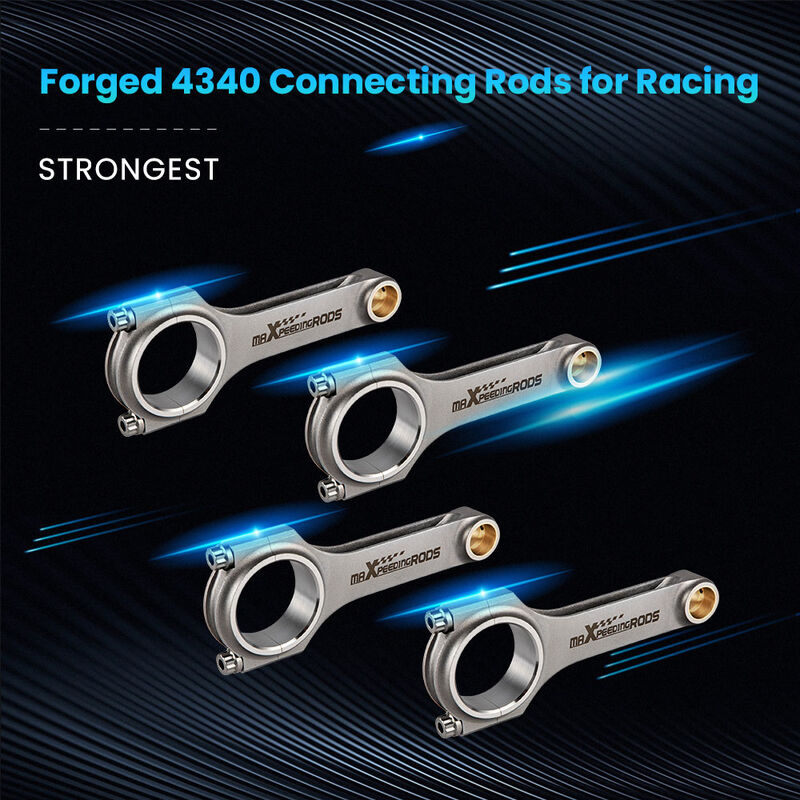

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel
H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000rpm

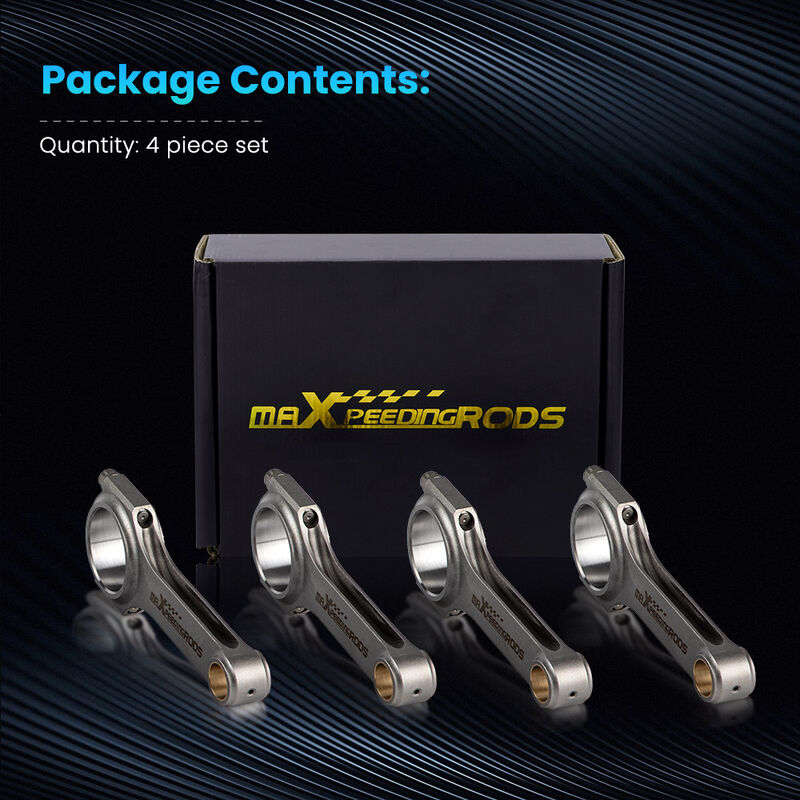

Package

4 x Connecting Rods



Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-DAT-121.5
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.007500000m3
