Fitment

Fit For Fiat 500 Old Model 2 cylinder 126mm
Notice: Other options C/C: 118/120/124/130mm

Specification

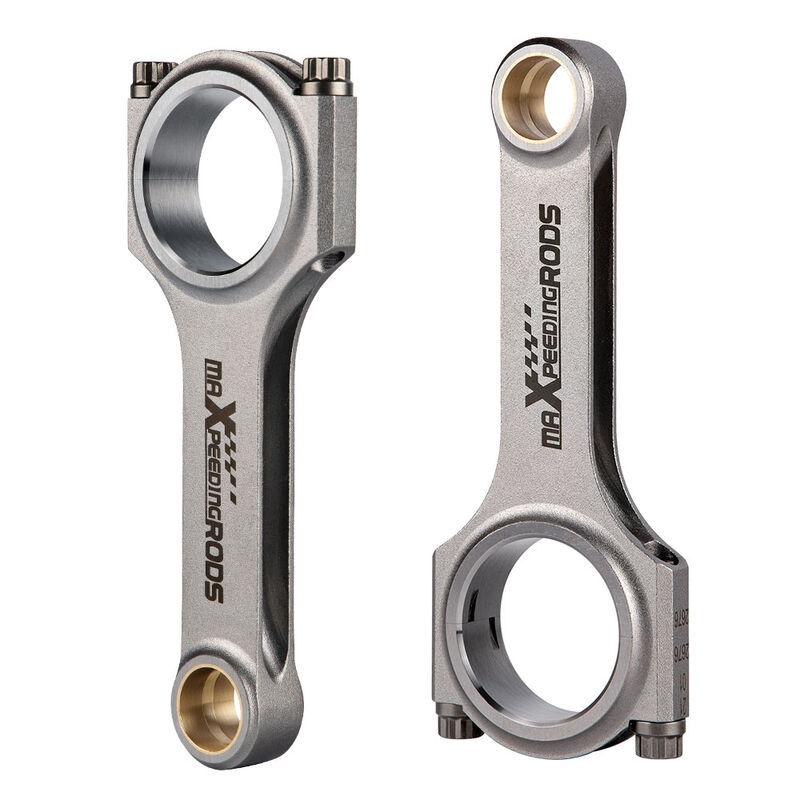

Performance Con Rods

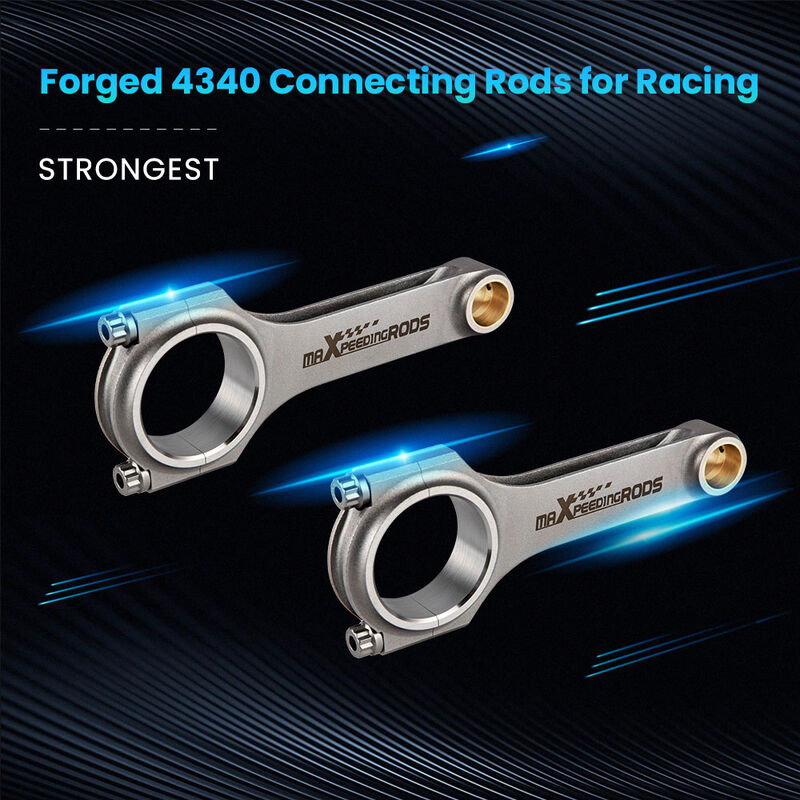

Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 2 Pieces a set
Bolts: Including Genuine 5/16" ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 5/16"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Advertised Horsepower Rating:200HP/piece
Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm

Dimensions

Center to center length:126mm/4.961"
Big end diameter: 47.13mm/1.856"
Small end diameter: 20mm/0.787"
Big end width: 24.7mm/0.972"
Small end width: 18.5mm/0.728"

Feature

1. TüV Certification Con Rods;
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing;
3. Genuine ARP 2000 bolts,Optional ARP L19 fasteners available as an upgrade;
4. H-Beam design reduces weight without compromising strength;
5. Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove the potential for stress risers;
6.100% CNC machined, Precision rod cap alignment dowels;
7. Bores finished to +/- .01 mm;
8. Balanced to within +/- 1 g per rod;
9. Each rod is magnetic particle tested to ensure free of flaws;
10.100% X-rayed, sonic tested;
11. Custom Service.

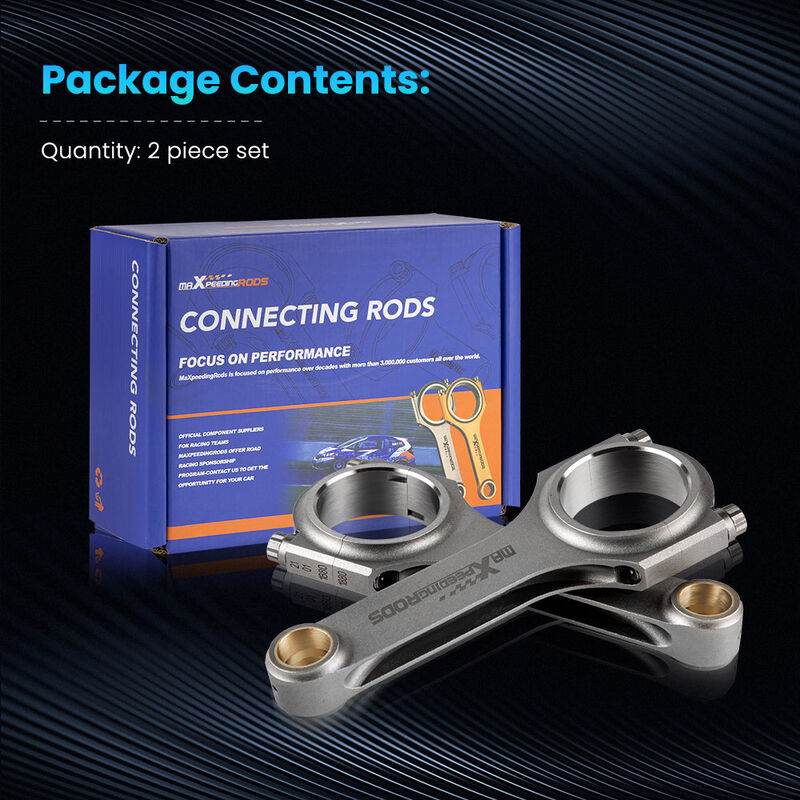

Package

2 x Connecting Rods



Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-FIA-126
Brand MAX PEEDING RODS
Shipping Weight 2.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
