**Supplier Stock

• Ships Directly From Our Supplier
• No Pickup Available
• Not Eligible For Same-Day Dispatch



Fitment

Fit For Isuzu Fargo Fit For Holden 4ZB1 1.8L, 4ZC1 2.0L
Fit For Isuzu Gemini G180 4ZB1 1.8L
Fit For Isuzu Bellett G180 1.8L
Fit For Isuzu Aska 4ZC1 2.0L
Fit For Isuzu Piazza G200 4ZC1 2.0L
Fit For Isuzu Trooper G200 2.0L

Specification

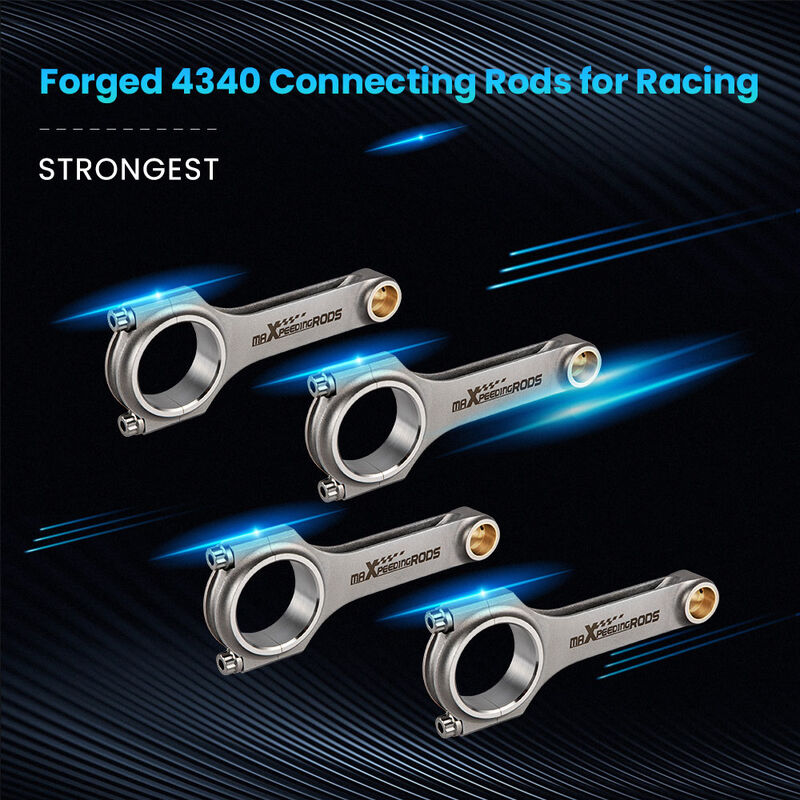

Performance Con Rods

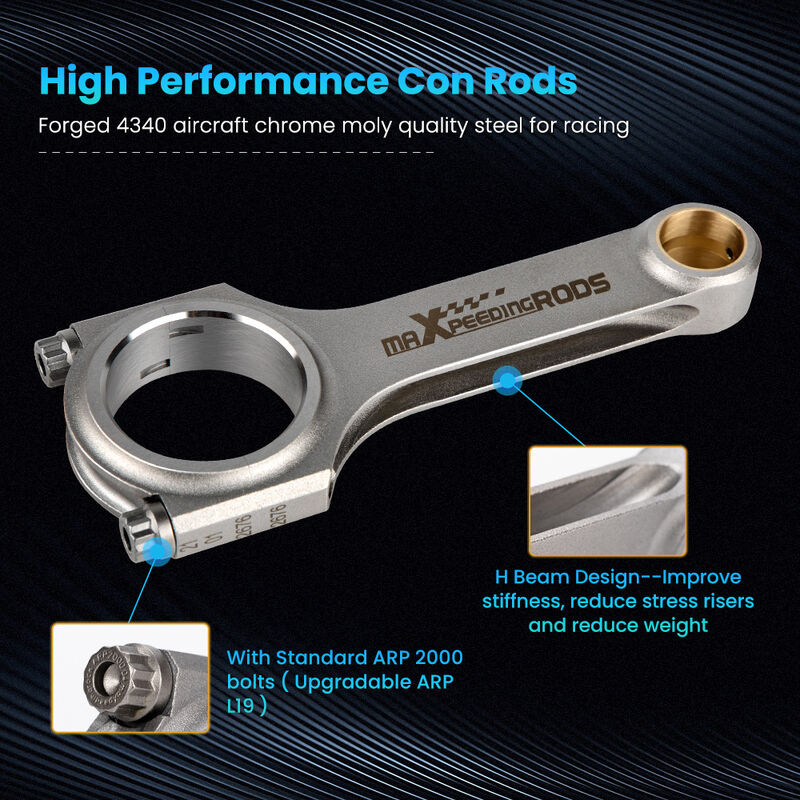

Type: Forged 4340 aircraft chrome moly quality steel for racing

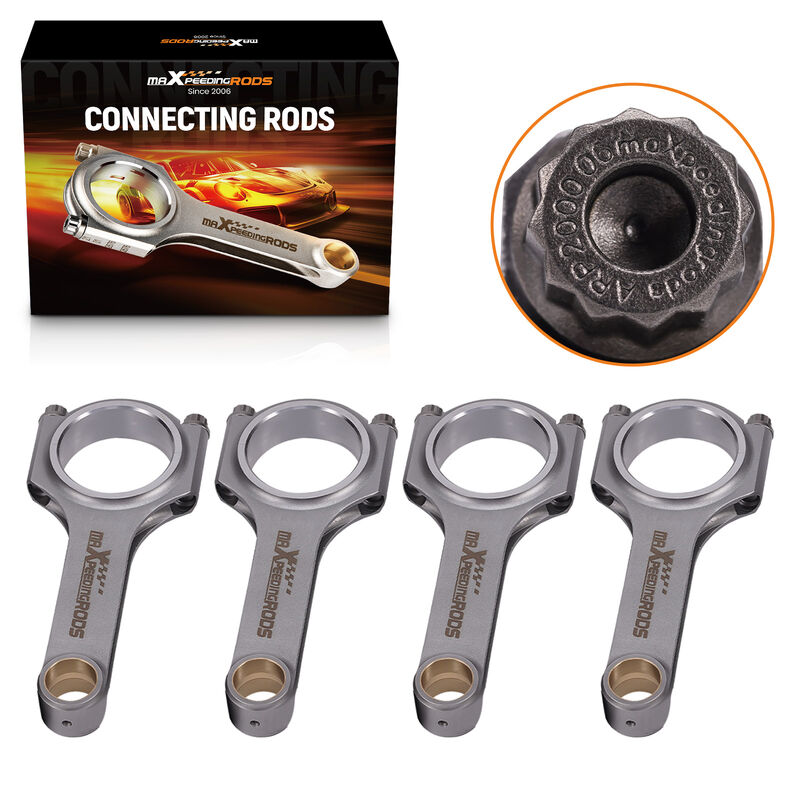

H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"

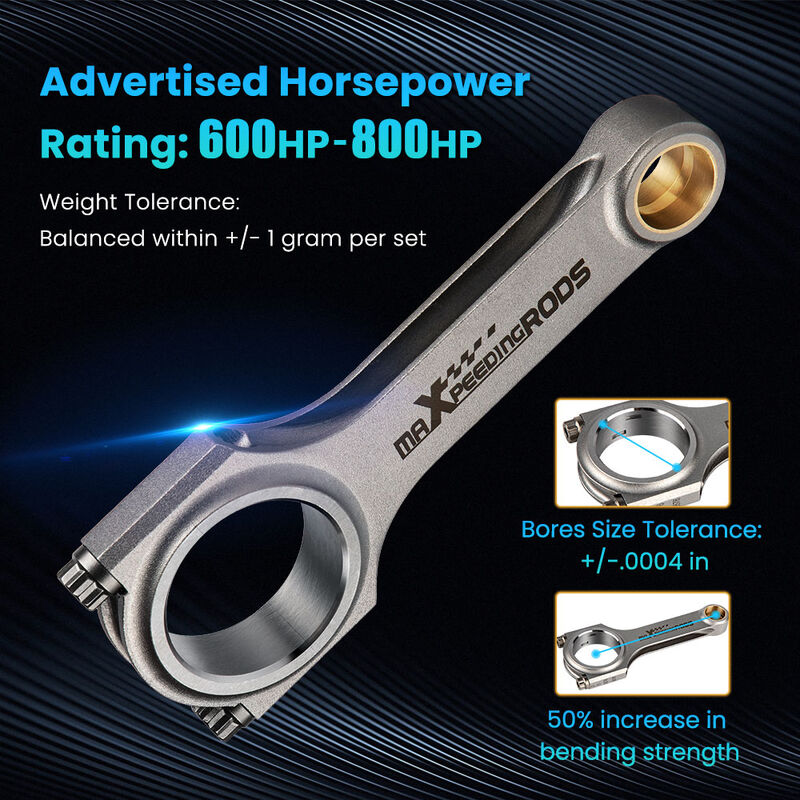

Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm

Dimensions

Center to center length: 133.5mm
Big end diameter: 52mm
Small end diameter: 21.97mm
Big end width: XX
Small end width: XX

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine

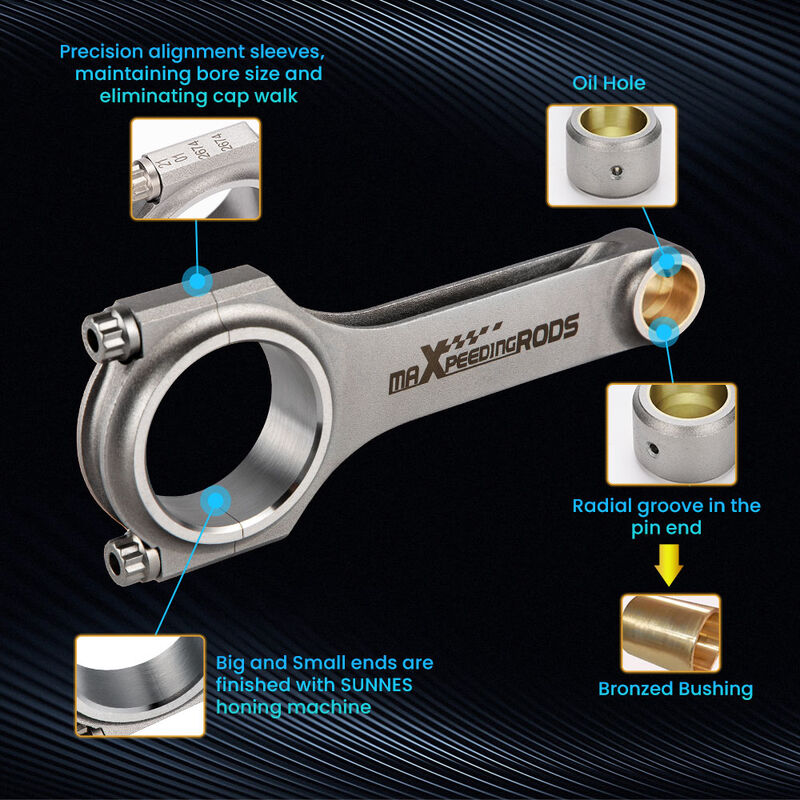

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

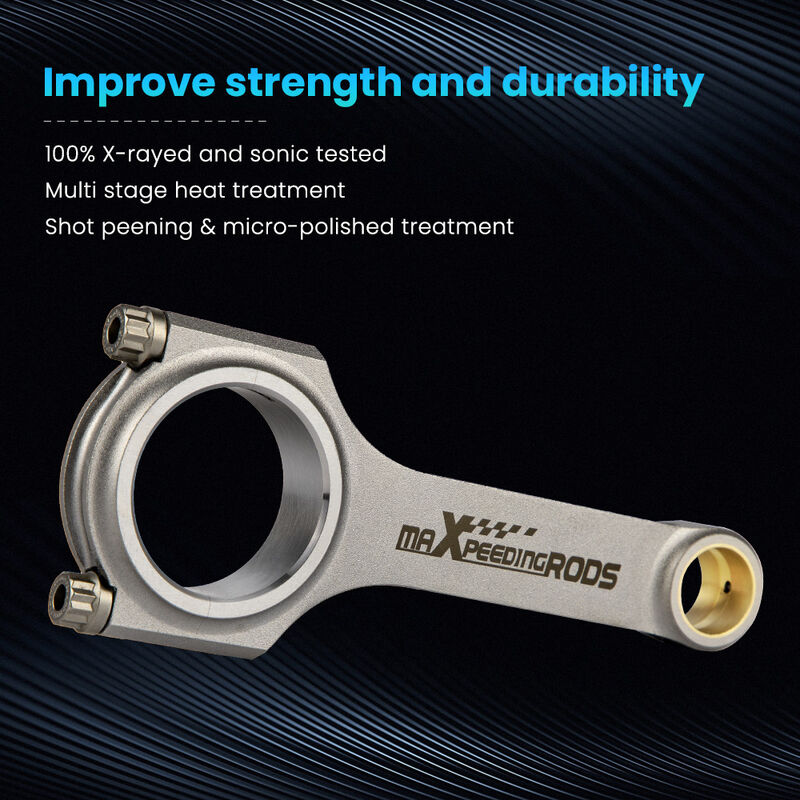

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

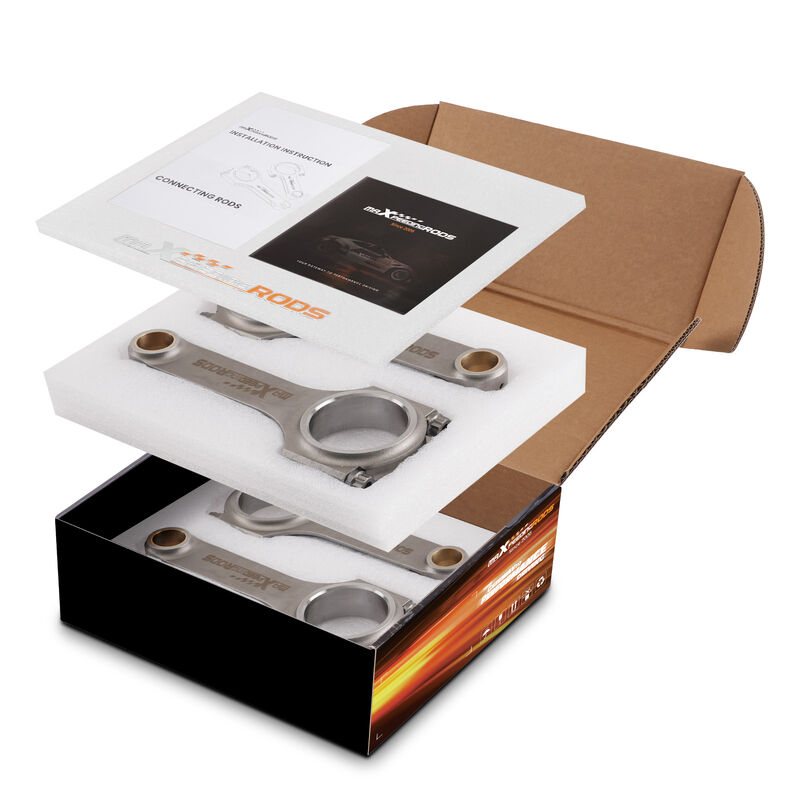

Package

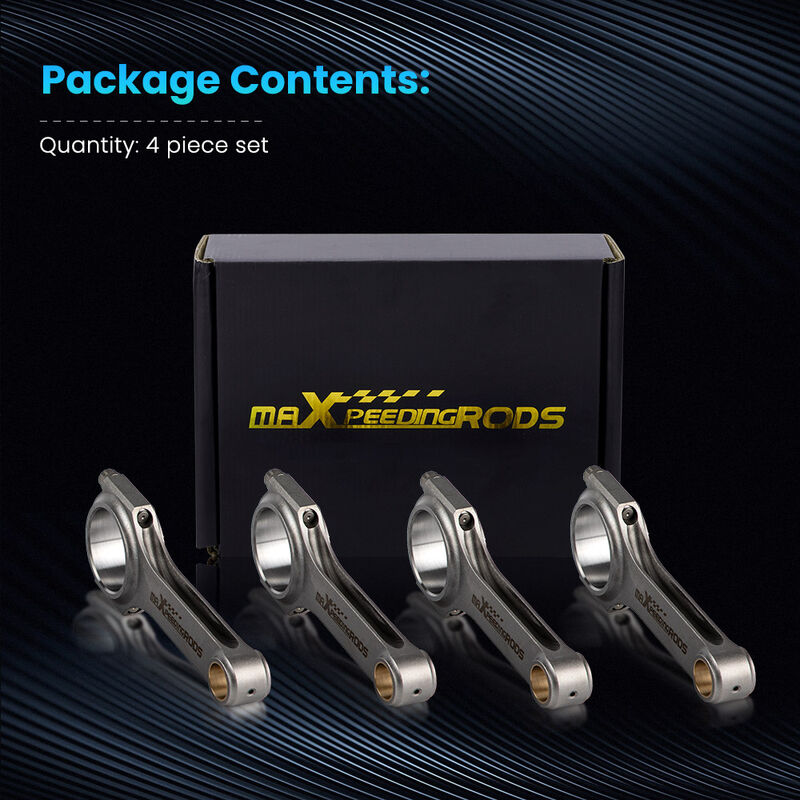

4 x Connecting Rods



Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-ISU-133.5
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
