Fitment

Please Carefully check the Size of the Rods in Specific and Description
Fit For BMW S54B32 E46 M3 3.2L 2001-2006
Fit For BMW S54B32 Z3 M Roadster 3.2L 2001-2002
Fit For BMW S54B32 Z3 M Coupé 3.2L 2001-2002
Fit For BMW S54B32 E85 Z4 M Roadster 3.2L 2006-2008
Fit For BMW S54B32 E86 Z4 M Coupé 3.2L 2006-2008
Fit For BMW S54B32 compatible for Wiesmann Roadster MF3 3.2L 2002-On

Specification

TÜV Certification Con Rods
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220.000/230.000 PSI
Torque: 48ft ≈ 65 NM
Top speed: 9000rpm

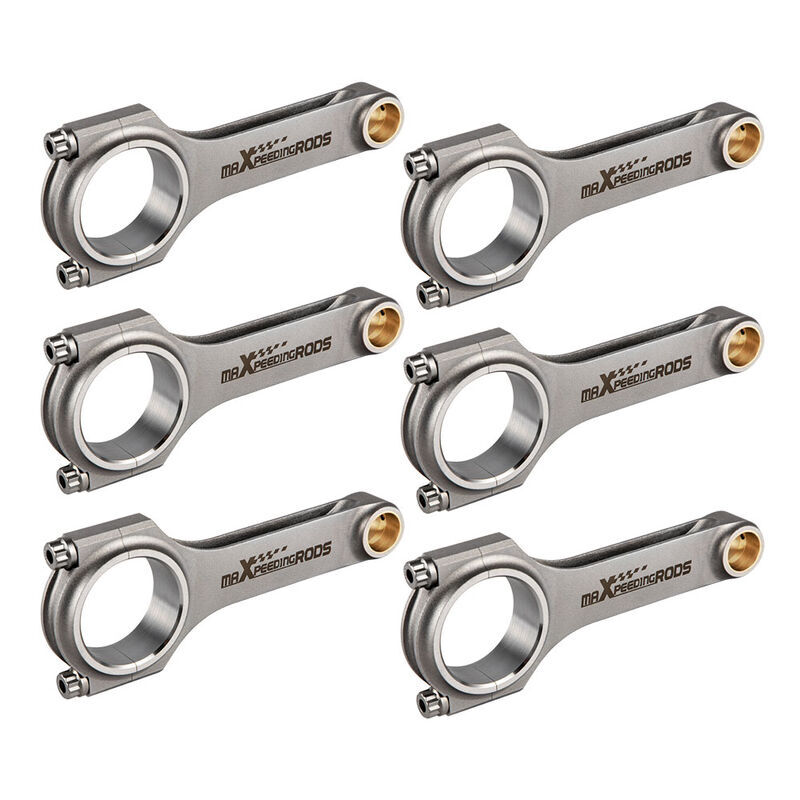

Quantity: 6 Pieces as showing in picture
Bolts:  Including Genuine ARP 2000 3/8" bolts (Note Extra cost for upgrading to ARP L19 bolts)

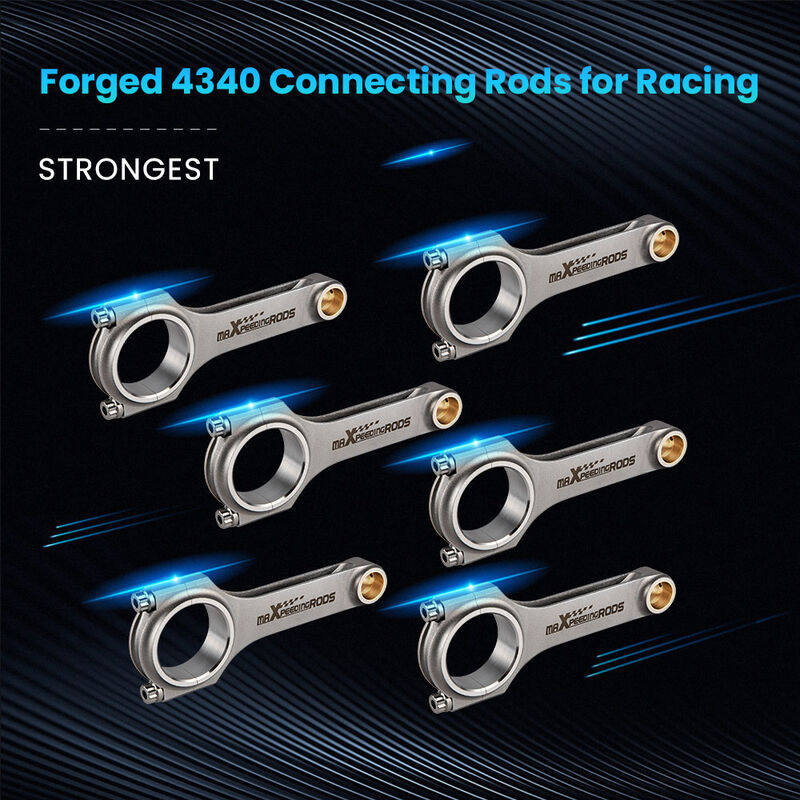

Type:  4340 EN24 H-Beam Connecting Rod
Weight Tolerance:  Balanced to +/- 1 gram in set

Dimensions

Center to center length: 139mm(5.472'')
Big end diameter: 53mm
Small end diameter: 21mm
Big end width: 19.8mm
Small end width: 19.8mm

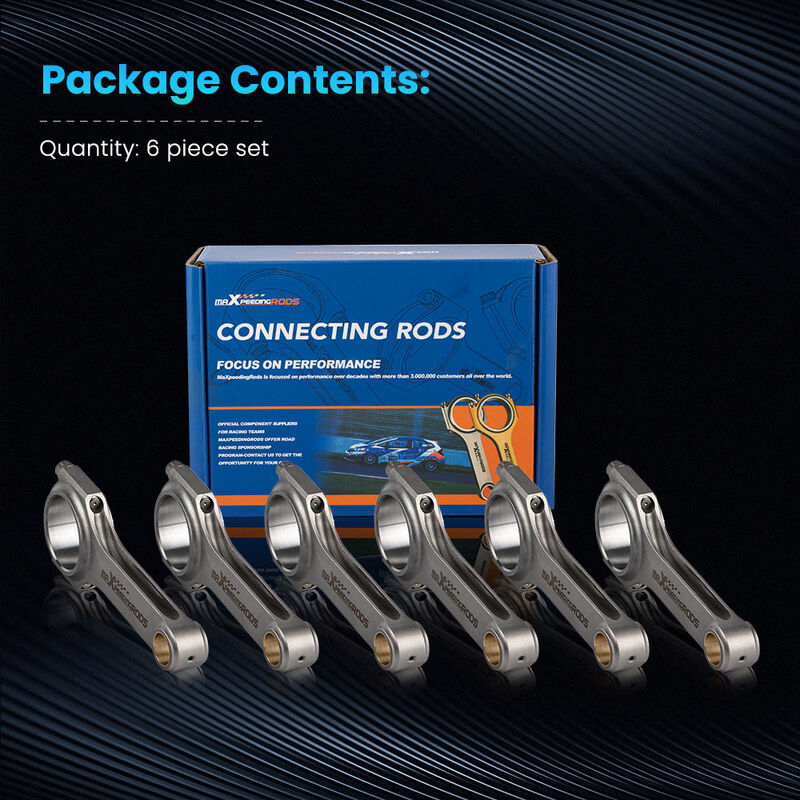

Package

6 x Connecting Rods



Note

Professional installation is highly recommended (No Instruction Included)
For any needs please contact us

SKU MPR-CR-BW-139B
Brand MAX PEEDING RODS
Shipping Weight 4.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
