Fitment

Fit For Peugeot 207 RC / 308
Fit For MINI Cooper S 1.6T EP6DTS / EP6CDTS
Fit For BMW N13 / N14 1.6T
Fitment Details:
Engine: For the THP175 (EP6DTS, later EP6CDTS)
Fit For Peugeot 207 RC 2006–2010
Fit For MINI Cooper S 2007–2010
Fit For MINI JCW  2007-2011 (154 kW version of engine - only used by Fit For BMW)
Fit For Peugeot 308 2008–on
Fit For Citroën DS3 Racing - EP6CDTS - 202 hp 2010–on
Fit For BMW 1 Series F20 114i 75 kW version 2012–2015
Fit For BMW 1 Series F20 116i 100 kW version 2011–2015
Fit For BMW 3 Series F30 316i 100 kW version 2012–2015
Fit For BMW 1 Series F20 118i 125 kW version 2011–2015
Fit For BMW 3 Series F30 320i ED 125 kW version 2012–2015
Fit For BMW 1 Series F20 120i 130 kW version 2015-2016

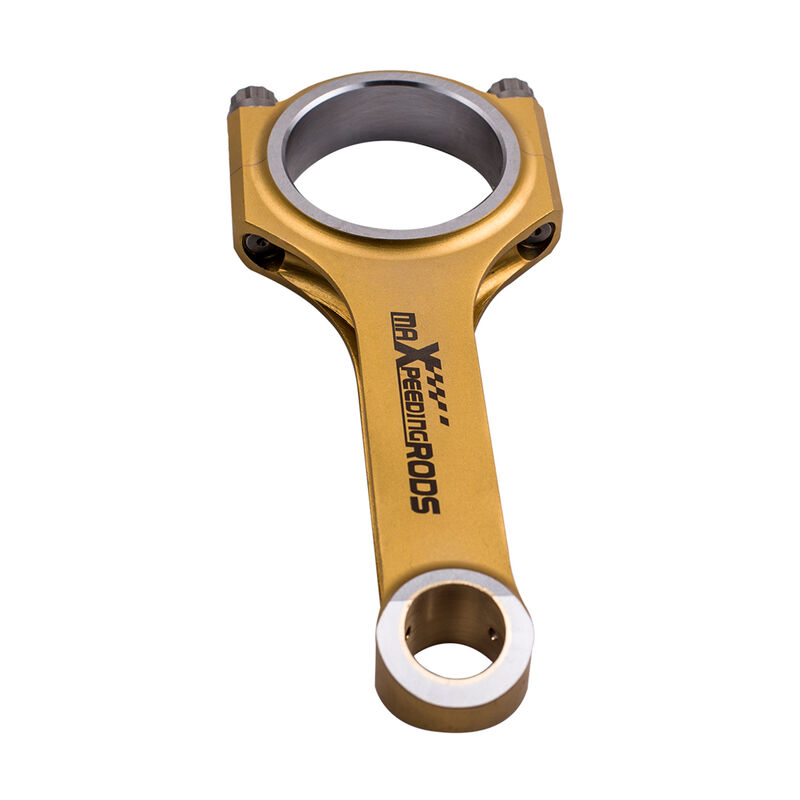

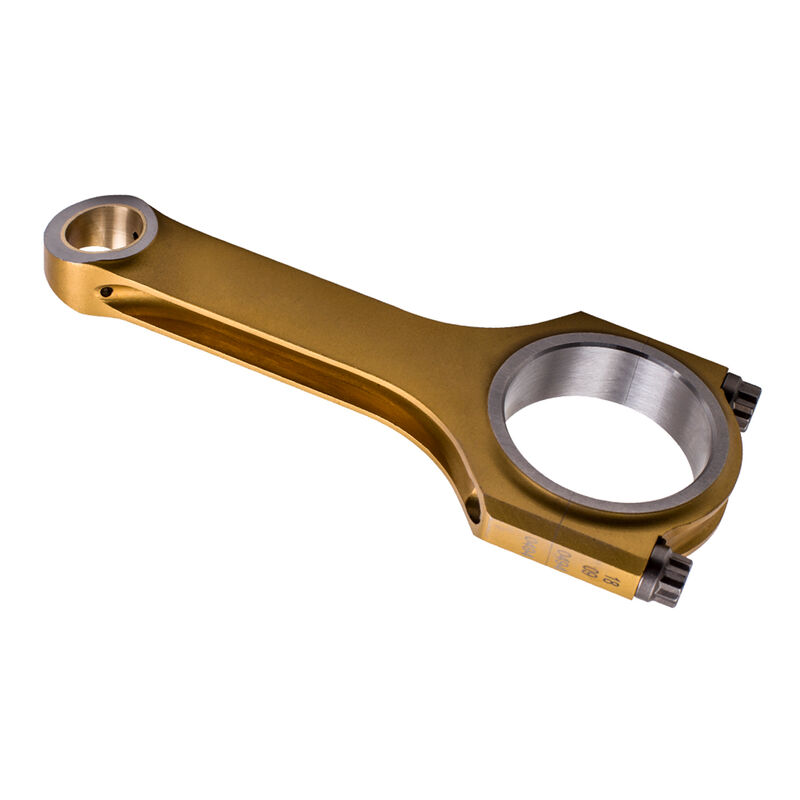

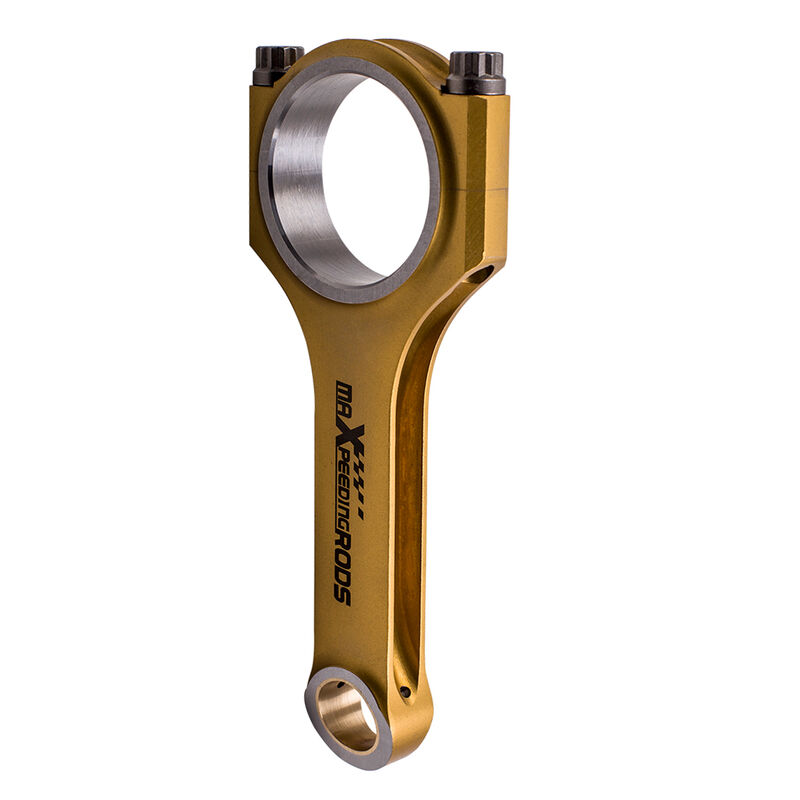

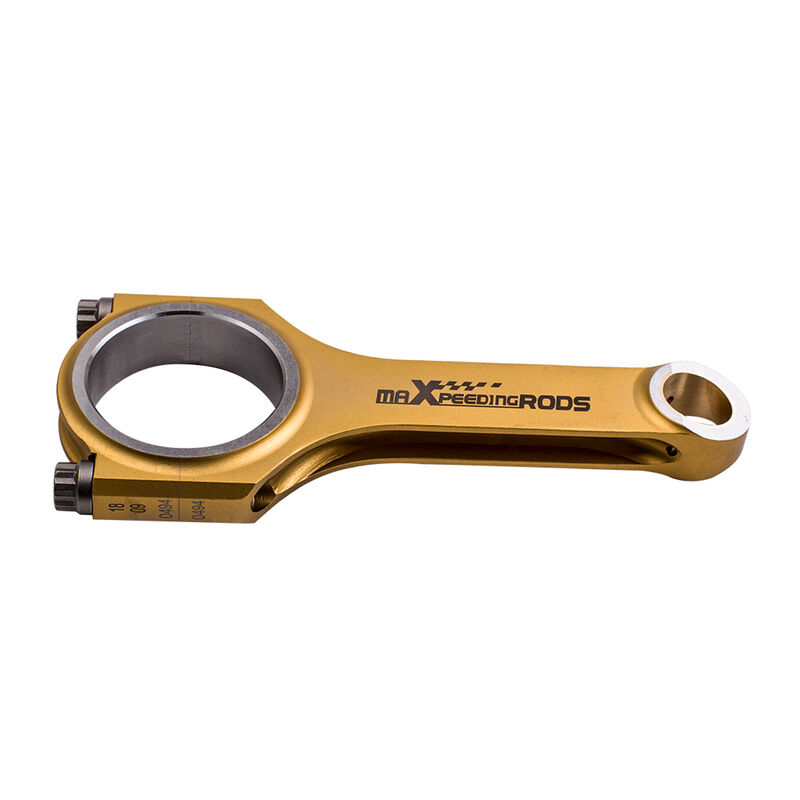

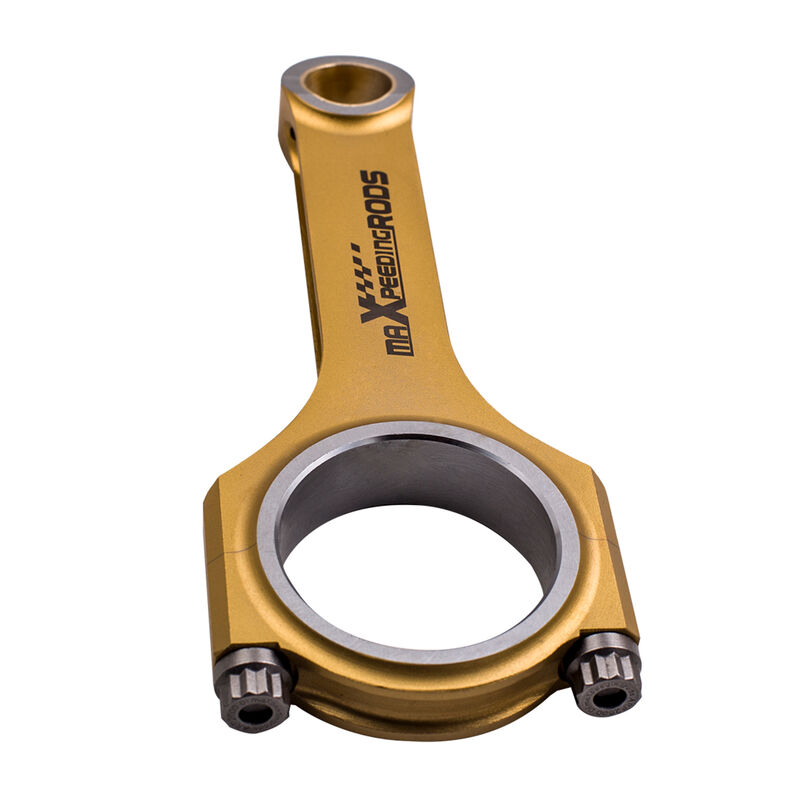

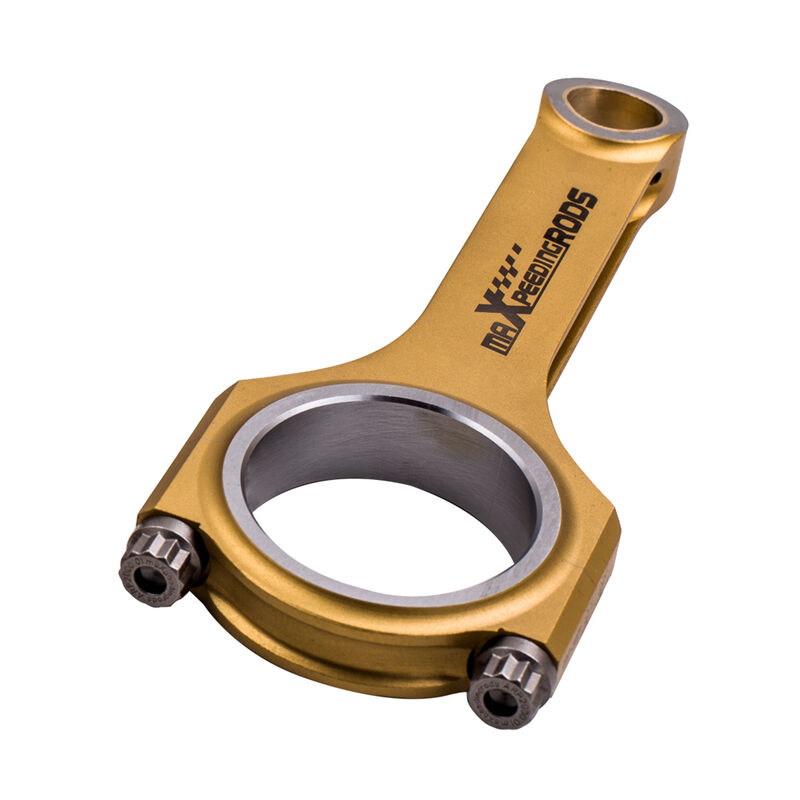

Specification

TÜV Certification Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

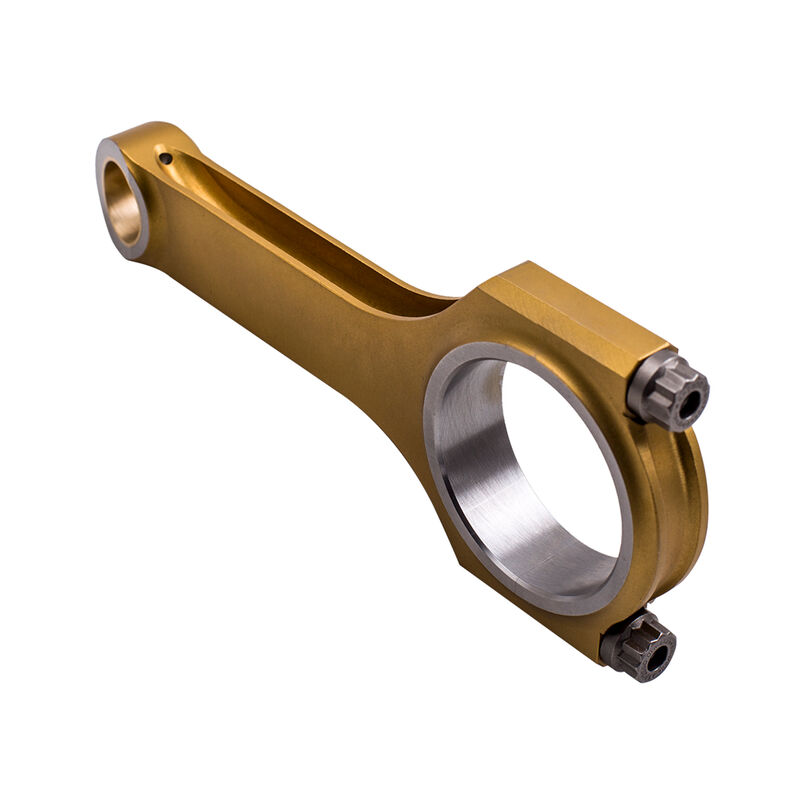

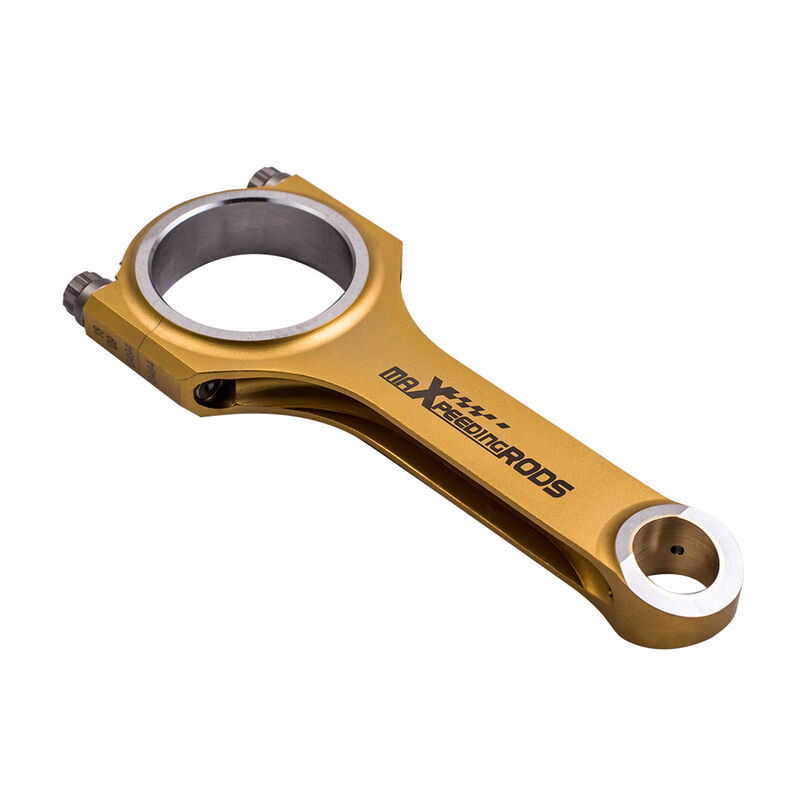

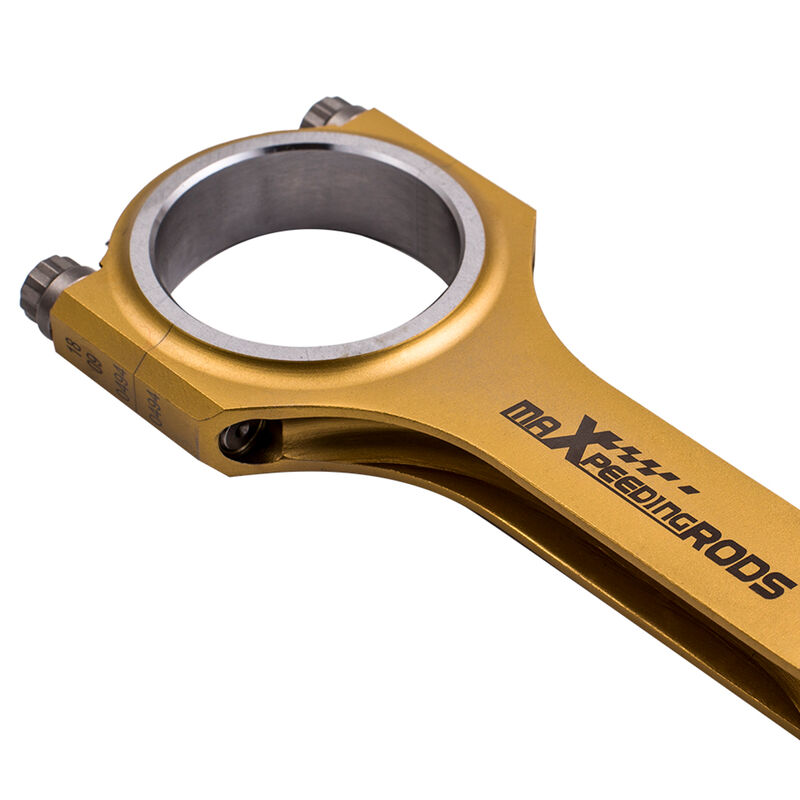

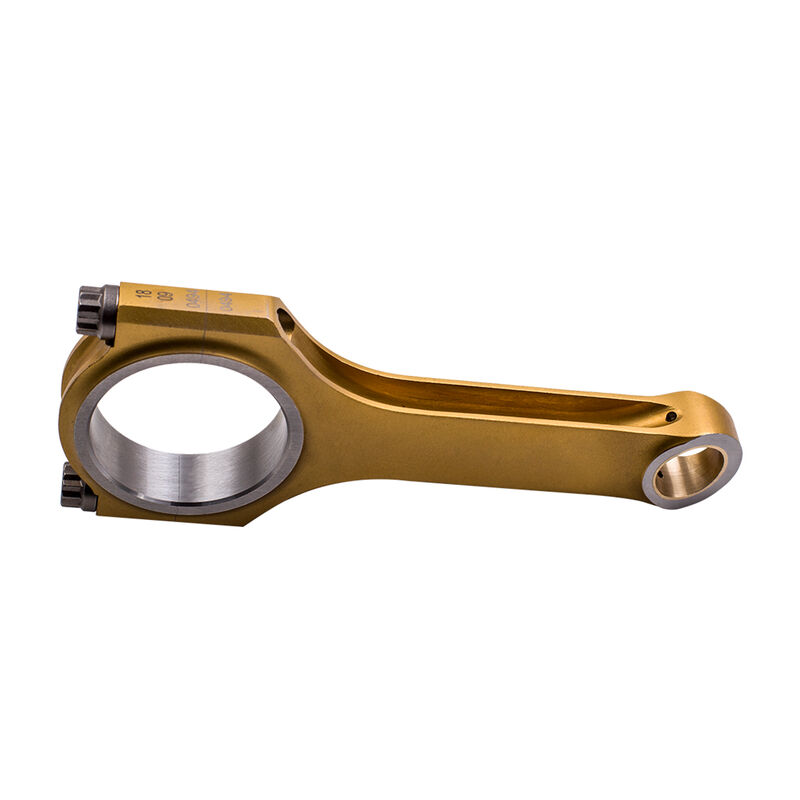

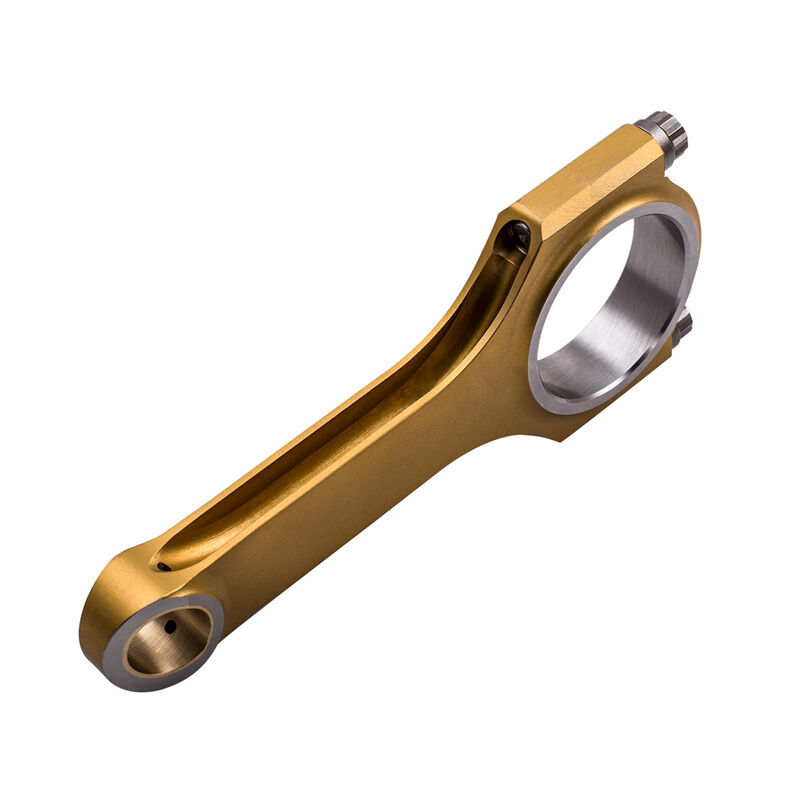

H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine 3/8" ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm

Dimensions

Center to center length: 138.5 mm
Big end diameter: 48mm
Small end diameter: 20mm
Big end width: 20.8mm
Small end width: 20.8mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine

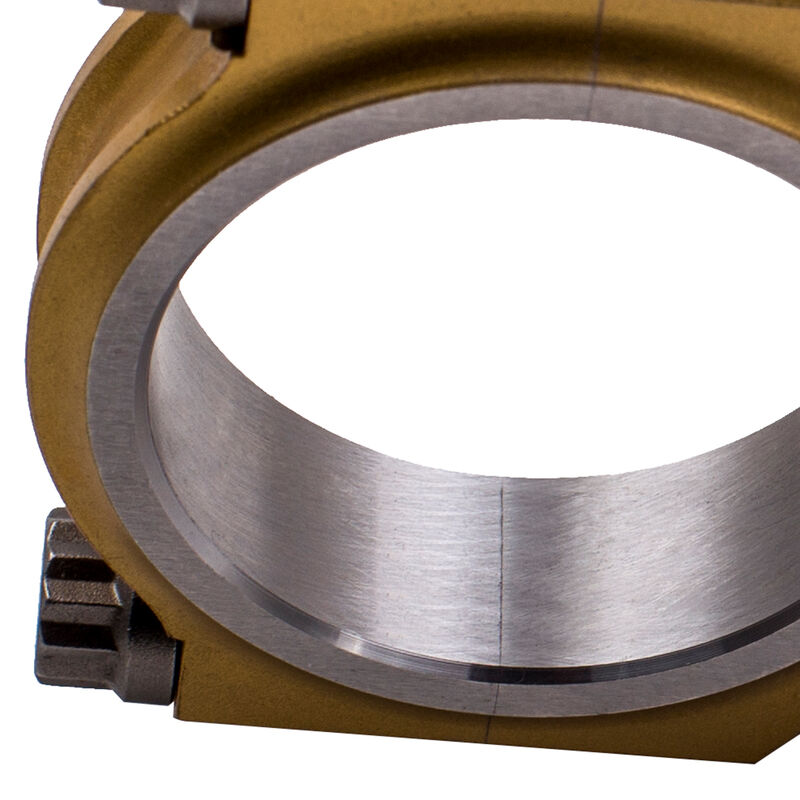

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
-Shot peened to relieve stress

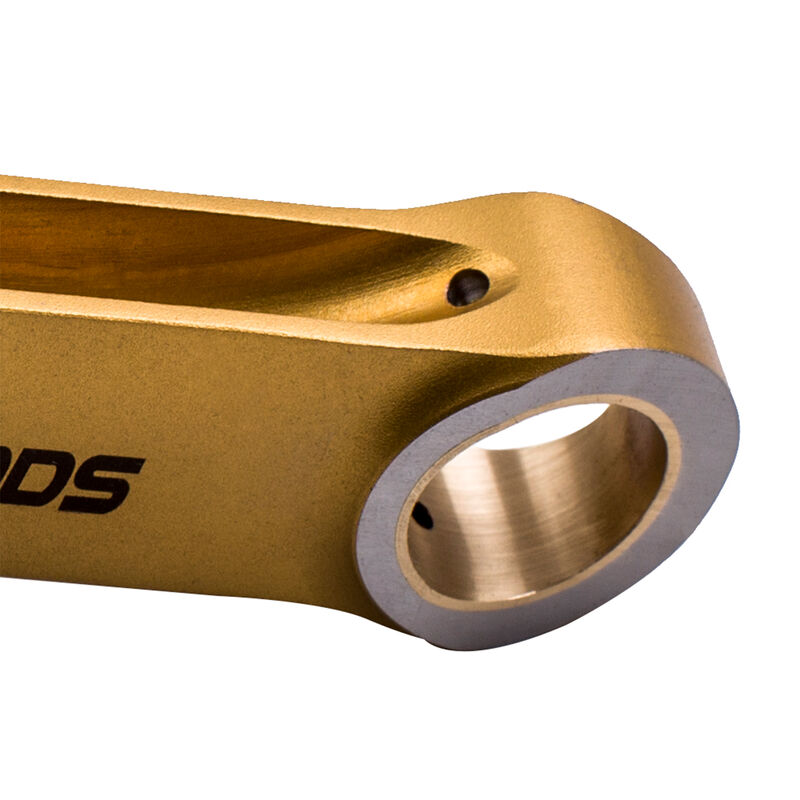

- Come with the bronzed bushing suitable for the floating piston pin

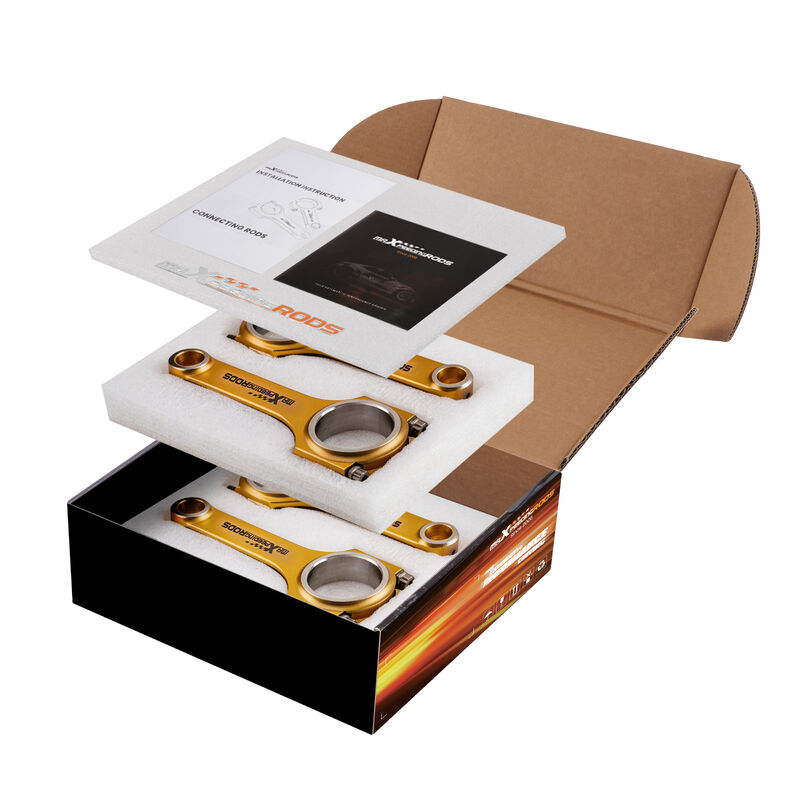

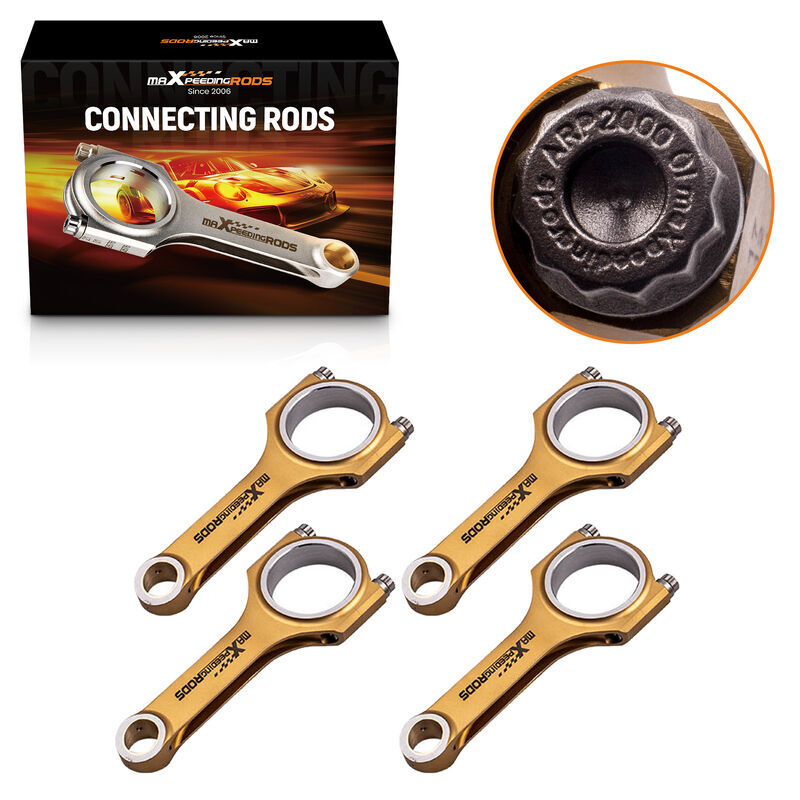

Package

4 x Connecting Rods

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
