Fitment

Fit For Fiat Punto GT 1.4 1.6L Turbo 4340 Forged Steel

Specification

- Performance Con Rods

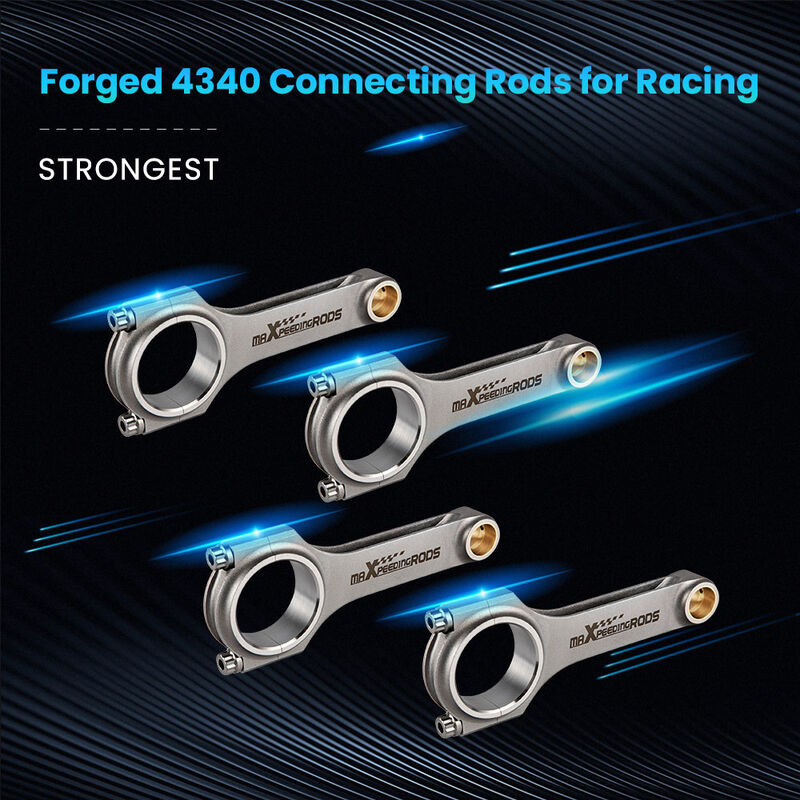

- Type: Forged 4340 aircraft chrome moly quality steel for racing
- H-beam Conrods Quantity: 4 Pieces as showing in picture
- Bolts: Including ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 3/8" bolts
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Advertised Horsepower Rating:200HP/piece
- Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 7000-9000rpm

Dimensions

Center to center length: 128.52mm/5.06"
Big end diameter: 48.63mm/1.9145"
Small end diameter: 22mm/0.866"
Big end width: 25.40mm/1.0"
Small end width: 25.40mm/1.0"

Feature

1. TüV Certification Con Rods；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. Genuine ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5. Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.100% CNC machined,Precision rod cap alignment dowels；
7. Bores finished to +/- .01 mm；
8. Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.100% X-rayed, sonic tested；
11. Custom Service.

Package

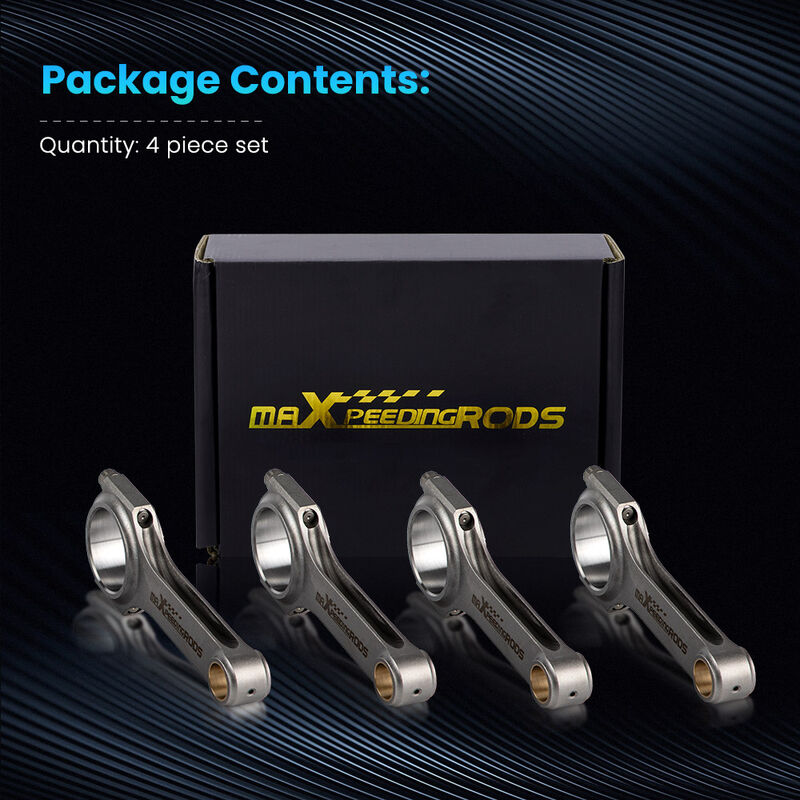

4 x Connecting Rods

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
