Fitment

Fit For Audi RS2 Quattro 2.2 L 5-cylinder 20v turbo
Fit For Audi 80 8C, B4 Saloon S2 quattro 2226ccm 230HP 1993-1994
Fit For Audi 80 8C, B4 Estate RS2 quattro 2226ccm 315HP 1994-1995

Specification

Advertised Horsepower Rating：200HP/piece
Type: Forged 4340 aircraft chrome moly quality steel for racing

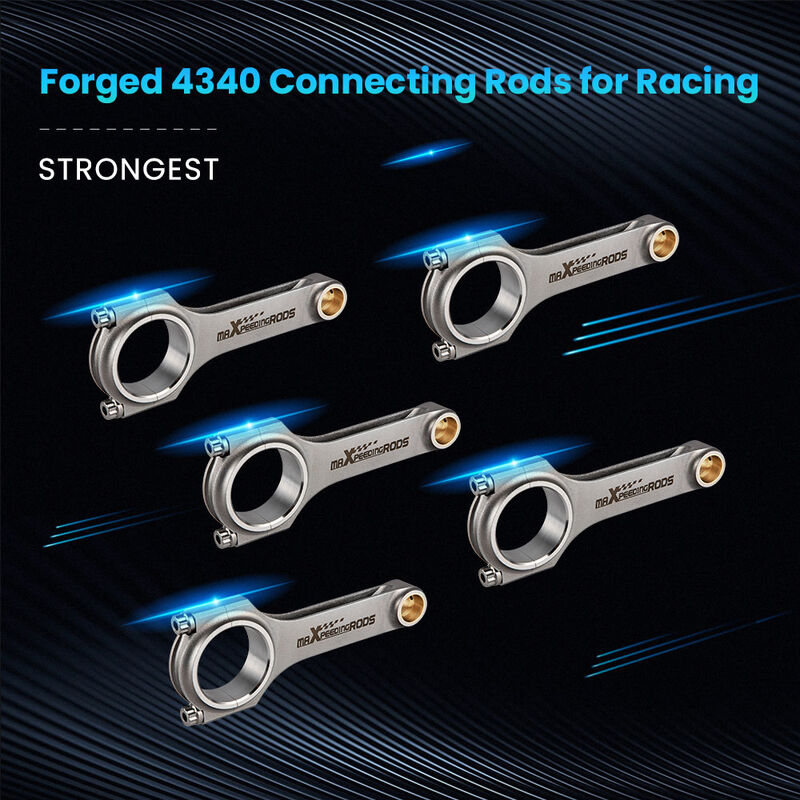

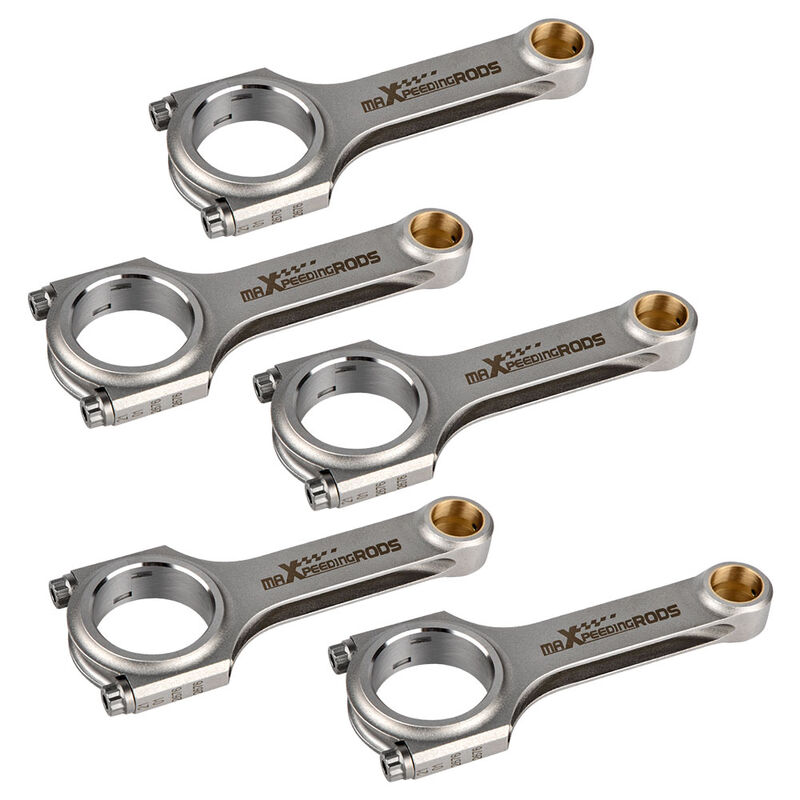

H-beam Conrods Quantity: 5 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts
Note: Extra cost for upgrading to ARP L19 bolts
The big end bores are honed to a +/-.01mm tolerance
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Top acceleration: 9000rpm
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm

Dimensions

Center to center length: 144mm/≈5.66929 in.
Big end diameter: 50.6mm/≈1.99212 in.
Small end diameter: 20mm/≈0.7874 in.
Big end width: 24.9mm/≈0.98032 in.
Small end width: 24.9mm/≈0.98032 in.

Feature

- Performance Con Rods
- Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Genuine ARP 2000 bolts ,Optional ARP L9 fasteners available as an upgrade
- H-Beam design reduces weight without compromising strength
- Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers

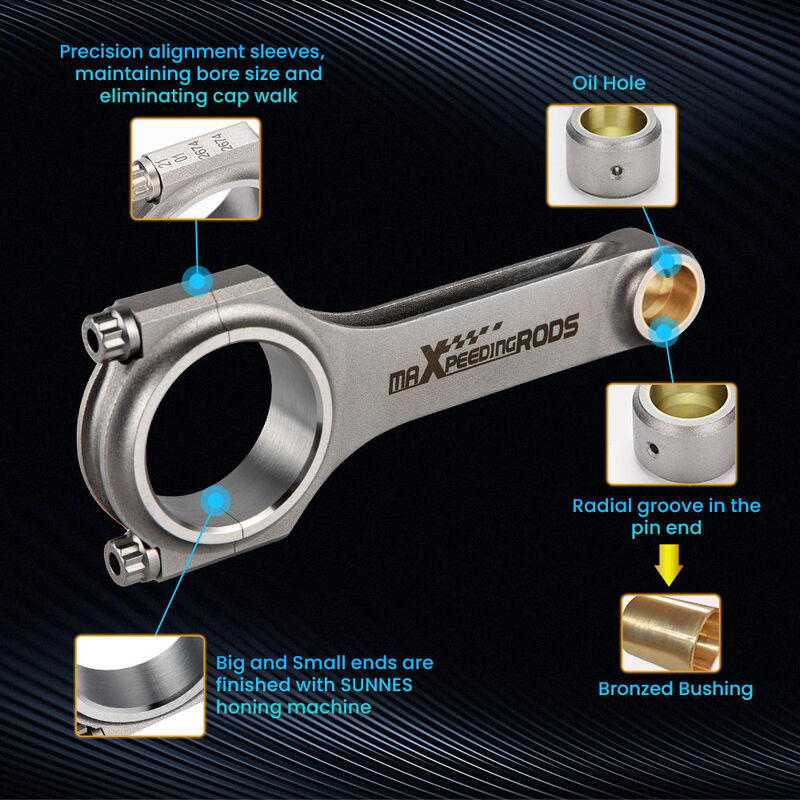

- 100% CNC machined,Precision rod cap alignment dowels
- Bores finished to +/- .01 mm
- Balanced to within +/- 1 g per rod
- Each rod is magnetic particle tested to ensure free of flaws
- 100% X-rayed, sonic tested

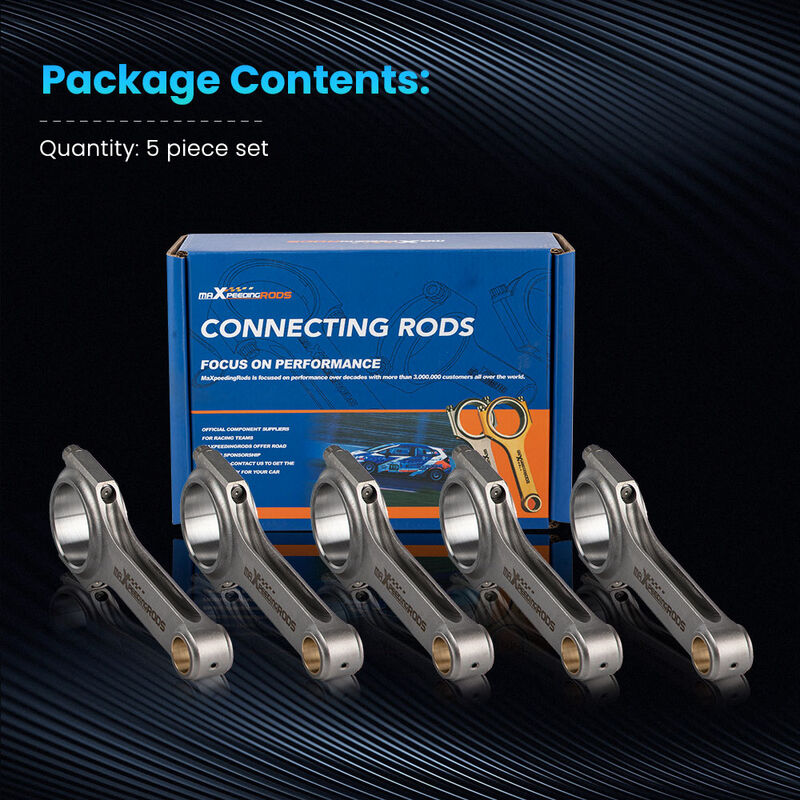

Package

5 x Connecting Rods

Notice

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
