Fitment

Fit For Toyota 4AG 4AGE 4AGZE AE86 Celica compatible for Corolla MR2 GTS 1.6L
Fit ForAA63 Carina 1983.06–1985
Fit For AT160 Carina 1985–1988
Fit For AT171 Carina 1988–1992
Fit For AA63 Celica 1983–1985
Fit For AT160 Celica 1985–1989
Fit For AE82 compatible for Corolla saloon, FX 1984.10–1987
Fit For AE86 compatible for Corolla Levin 1983.05–1987
Fit For AE92 compatible for Corolla 1987–1993
Fit For AE101 compatible for Corolla 1991–1995
Fit For AE101 Sprinter 1991–1995
Fit For AT141 Corona 1983.10–1985
Fit For AT160 Corona 1985–1988
Fit For AW11 MR2 1984.06–1989
Fit For AE82 Sprinter 1984.10–1987
Fit For AE86 Sprinter Trueno 1983.05–1987
Fit For AE92 Sprinter 1987–1992
Fit For AE82/AE92 compatible for Corolla GLi Twincam/Conquest RSi 1986–1993
Fit For Chevrolet for NOVA (based on compatible for Corolla AE82)
Fit For Geo Prizm GSi (based on compatible for Toyota AE92 chassis) 1990–1992
Pin Type: Floating Pin Piston

Specification

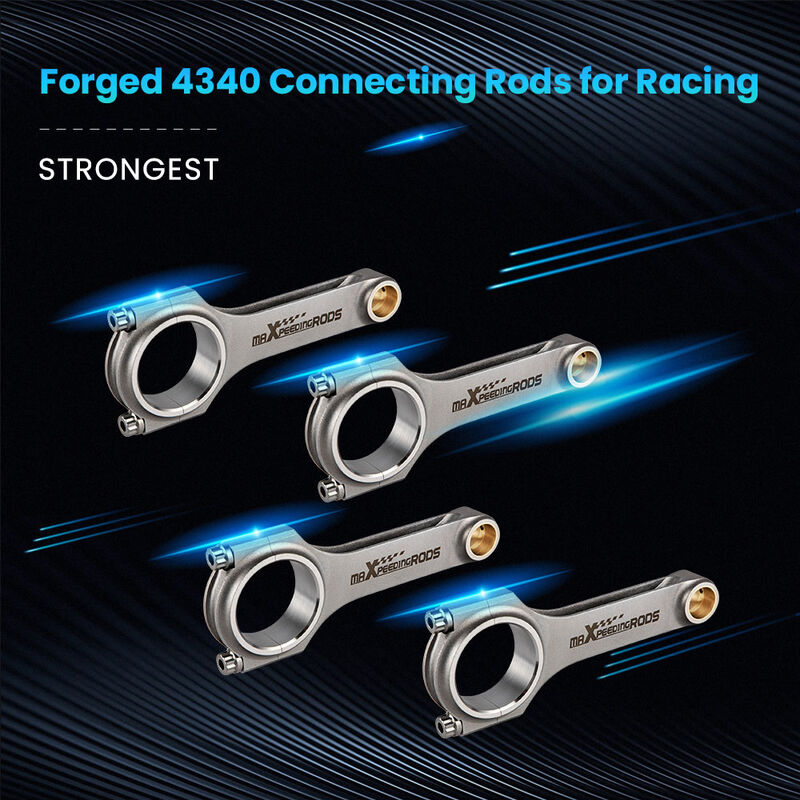

Type: Forged 4340 aircraft chrome moly quality steel for racing

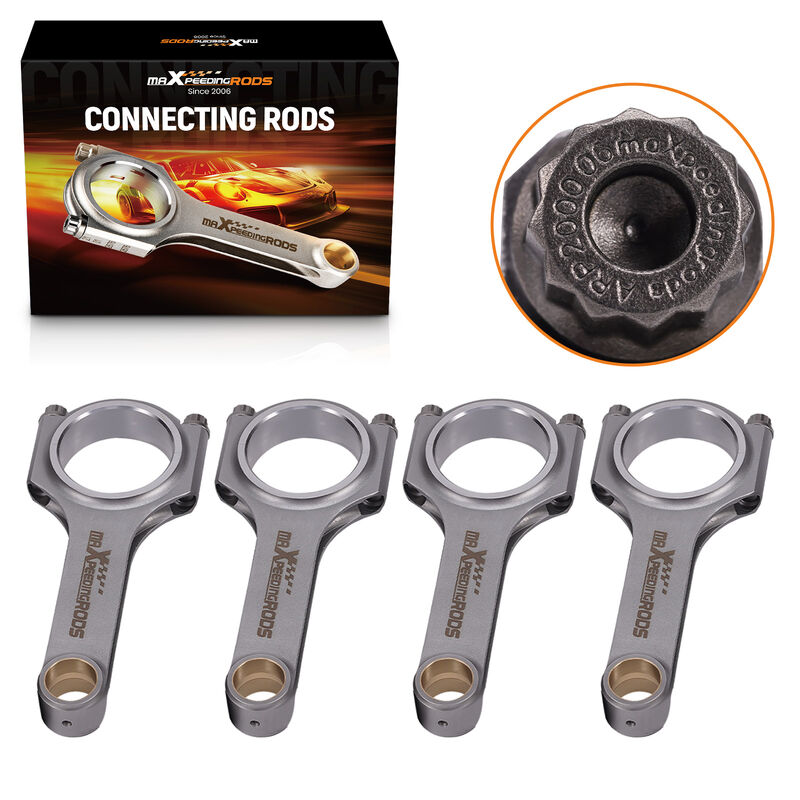

H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Advertised Horsepower Rating:200HP/piece
Top acceleration: 9000rpm

Dimension

Center to center length:122mm/4.803"
Big end diameter:45mm/1.772"
Small end diameter:20mm/0.787"
Big end width:21.8mm/0.858"
Small end width:21.8mm/0.858"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

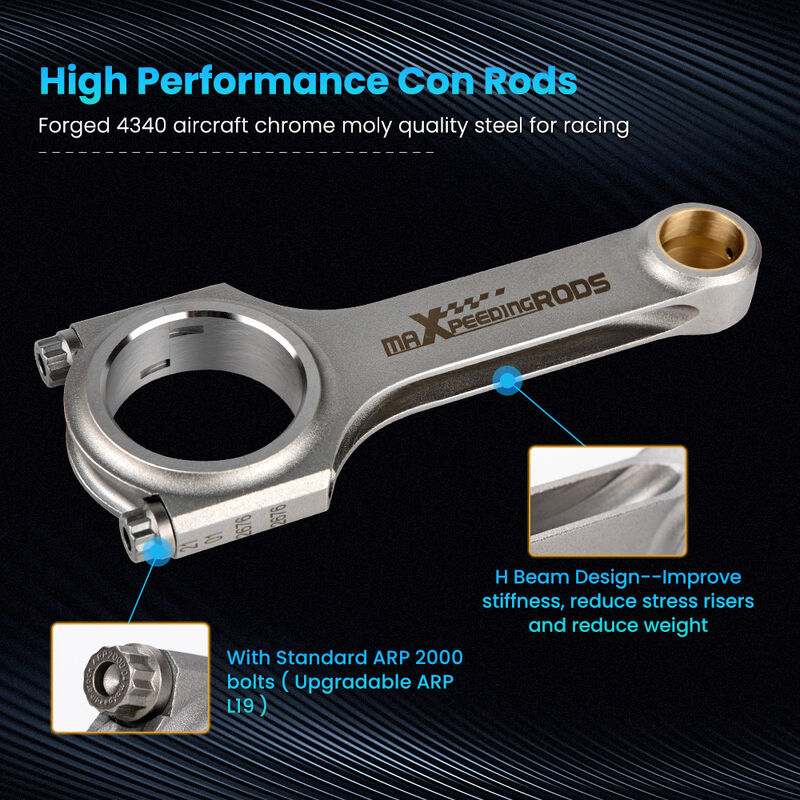

4. H-Beam design reduces weight without compromising strength；

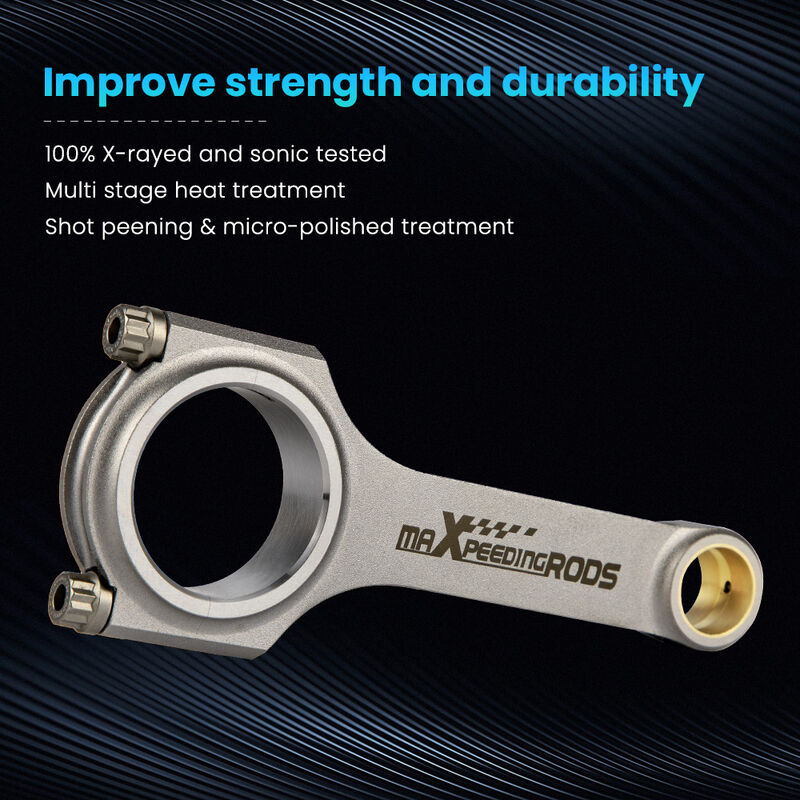

5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；

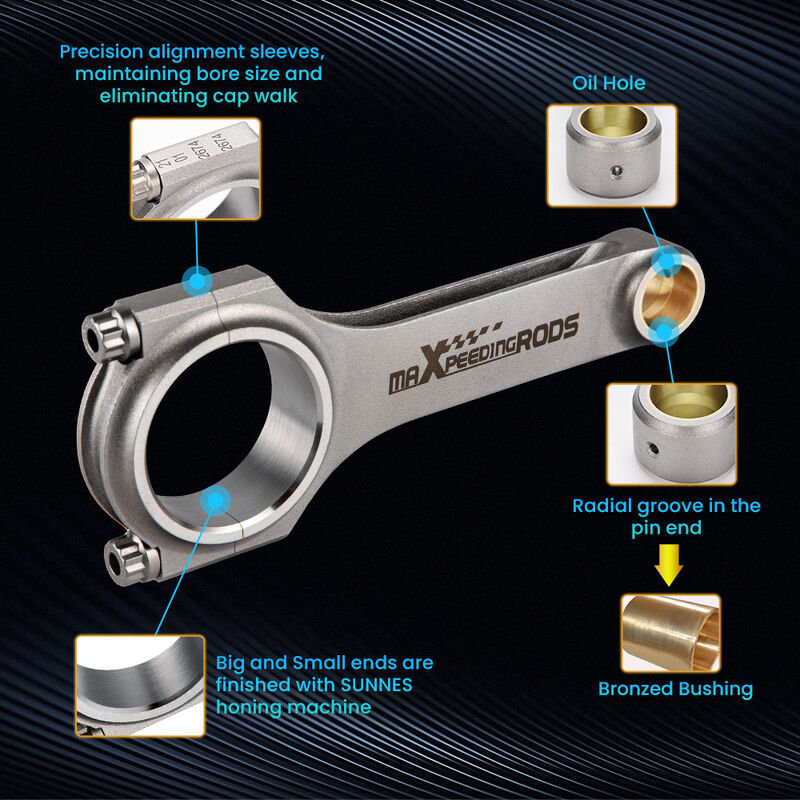

6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

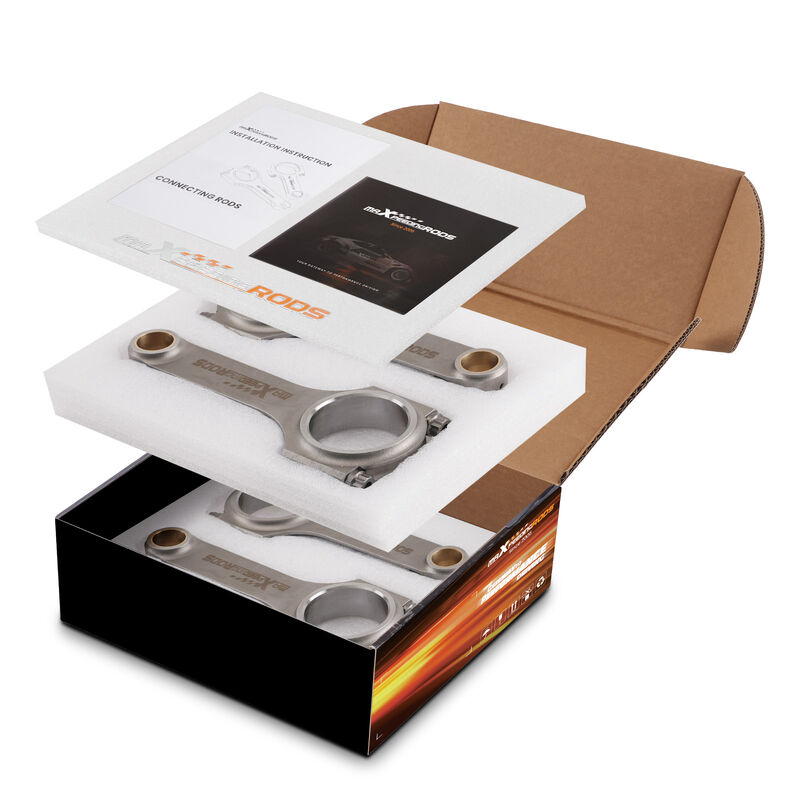

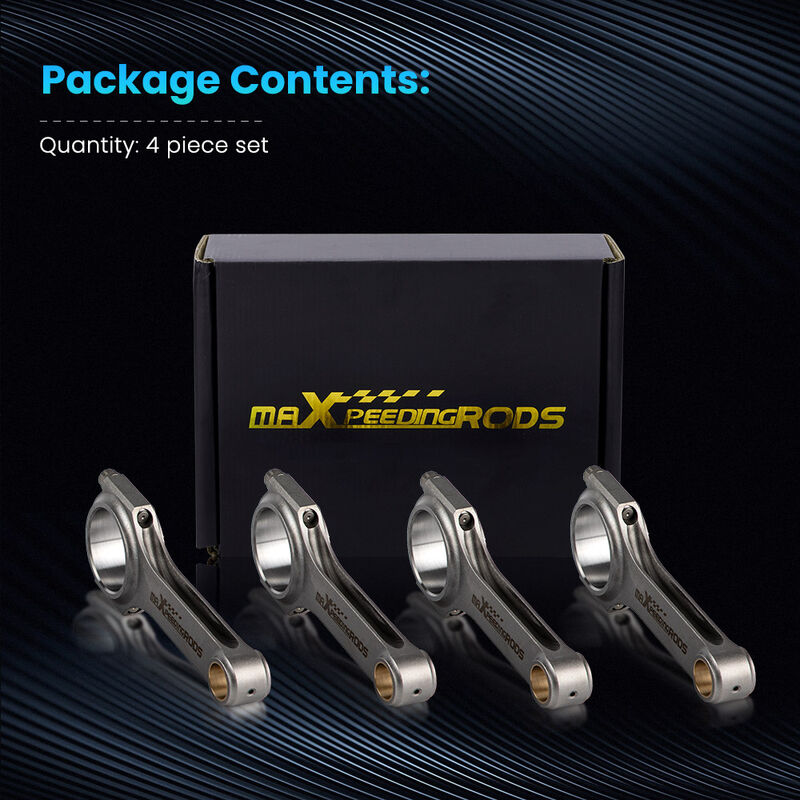

Package

4 x Connecting Rods

Note

Professional installation is highly recommended.
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
