Fitment

Fit For Audi TT 8N3 Coupe 3.2 24V VR6 quattro 2003-2006
Fit For Audi TT Roadster 8N9 Convertible 3.2 VR6 quattro 2003-2006
Fit For VW Bora 1J6 Estate 2.8 VR6 2000
Fit For VW Corrado 53I Coupe 2.9 VR6 1991-1995
Fit For VW Corrado 2.8 12V VR6 1991-1995
Fit For VW Golf MK III Hatchback 2.8 VR6 1992
Fit For VW Golf MK III Estate 2.9 VR6 Syncro 1998-1999
Fit For VW - Golf (MK4) 2.8L 12V VR6 & 2.8L 24V VR6 engines 1999-2005
Fit For VW Passat 3A2, 35I Saloon 2.8 VR6 1991-1996
Fit For VW Passat 3A5, 35I Estate 2.8 VR6, 2.9 VR6 Syncro 1991-1997
Fit For VW Sharan 7M8, 7M9, 7M6 MPV 2.8 VR6, 2.8 VR6 Syncro 1995-2000
Fit For VW Transporter MK IV Box 2.8 VR6 1996-2003
Fit For VW Transporter MK IV Platform/Chassis 2792ccm 204HP 150KW (Petrol) 2000-2003
Fit For VW Transporter/Caravelle MK IV Bus 2.8 VR6 1996-2003
Fit For VW Vento 1H2 Saloon 2.8 VR6 1992-1998
(Note: Please confirm the dimensions before purchase the connecting Rods)

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

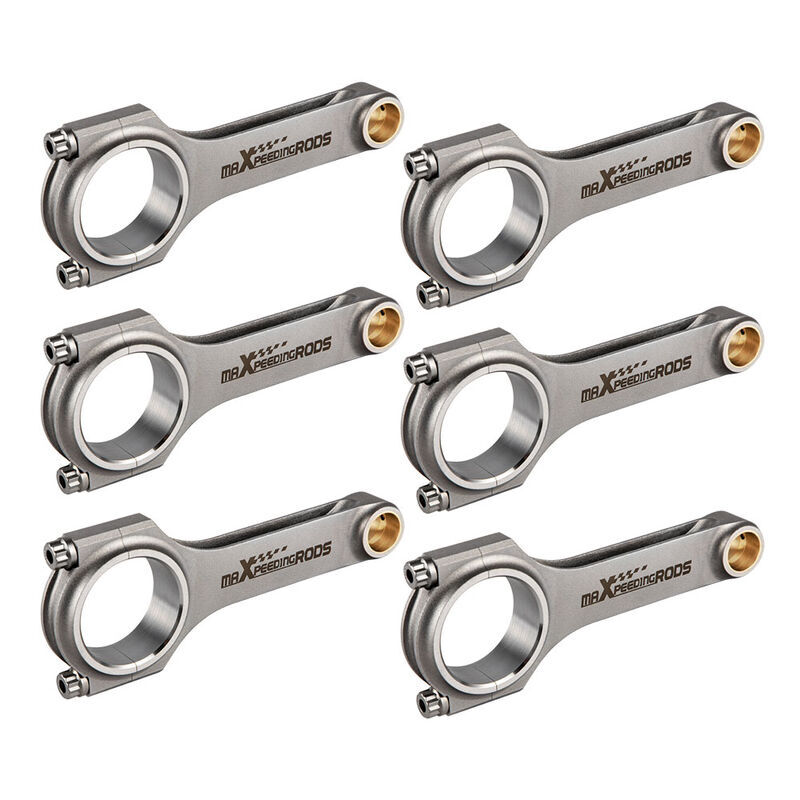

H-beam Conrods Quantity: 6 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Advertised Horsepower Rating:200HP/piece
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm

Dimensions

Center to center length: 164mm/6.457in
Big end diameter: 56.8mm/2.236in
Small end diameter: 20mm/0.787in
Big end width: 19.9mm/0.783in
Small end width: 19.9mm/0.783in

Feature

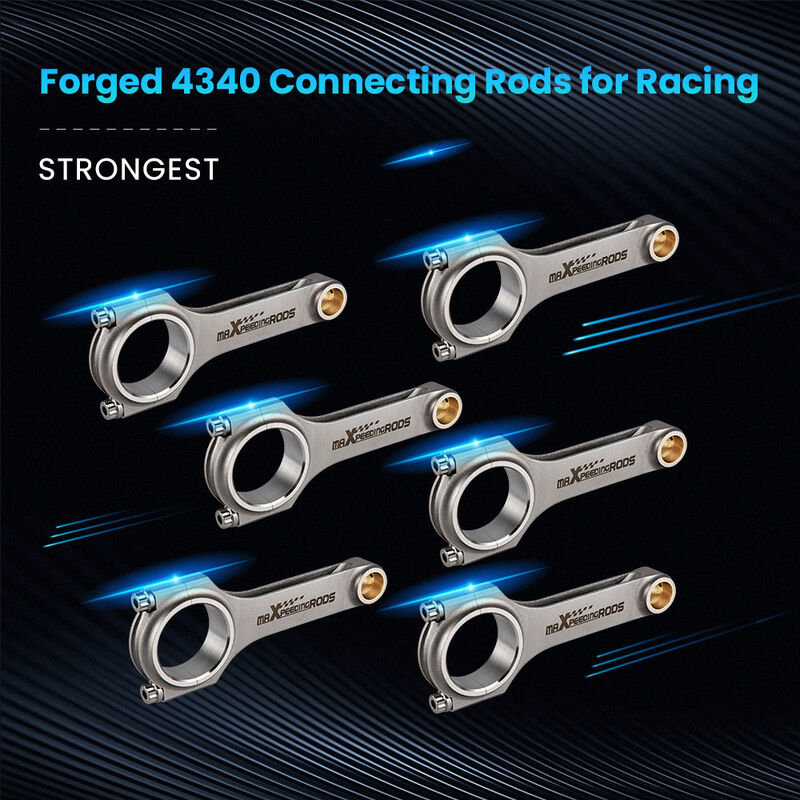

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Package

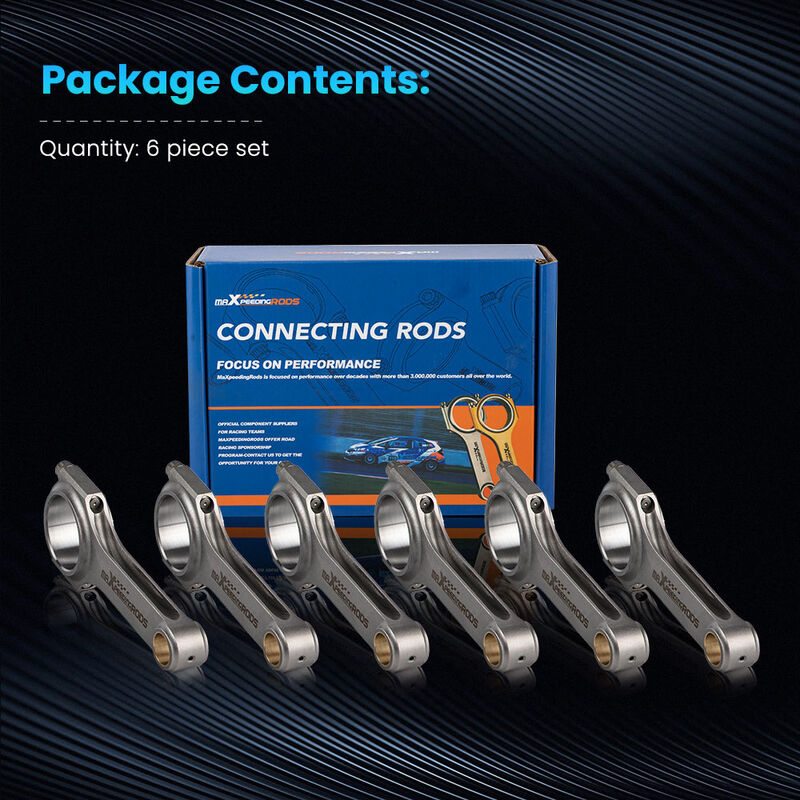

6 x Connecting Rods

Notice

Please confirm your old part number matches up with one of the part numbers above
Professional installation is highly recommended (No Instruction Included)
For any needs please contact us.
