Feature

Includes Zinc Tow Ball & Extreme Duty Drop Hitch Rated At 3500kg Towing Capacity / 350kg Ball Weight, Pin & Clip And D-Shackles

89mm x 89mm Extreme Duty Reinforced Crossbar

Two WLL 4500kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Bevelled Edges To Suit Soft-Shackles.

Flush Chassis-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Highly Durable, Textured Extreme Duty Powder Coated Finish

Dual Top-Mounted Trailer & Anderson Plug Mounts

Class 4 Towbar - 50mm Square Hitch Receiver

Disclaimer: This Is An Aftermarket Product Manufactured By TAG Manufacturing Pty Ltd. It Is Not a Toyota Genuine Part And Is Not Endorsed, Approved, Or Manufactured By Toyota Motor Corporation Or Toyota Motor Corporation Australia Limited. Toyota Is a Registered Trademark Of Toyota Motor Corporation. Due To The Safety-Critical Nature Of Towbars And Vehicle Manufacturing Variations, Professional Installation By a Qualified Fitter Is Strongly Recommended.

Specification

Diagnostic Coding: Not Required

Fog Cut Off: Not Applicable

Reverse Sensor Cut Off: Not Applicable

Wiring Option: Direct Fit Wiring Harness

Fitting Time [min.]: 30 (UNT272)

Fitting Time [min.]: 120 (TXR793)

Style: 7 Pin Flat

Type: Plugs & Sockets

Towbar Capacity [kg]: 4500

Ball Weight [kg]: 450

Towbar Class: Heavy Duty (4x4 Recovery)

Recovery Load-tested: 4500kg WLL

Recovery Points: 2

Hitch Type: 50mm Square Hitch Receiver

Tow Ball Mount: L4171TXR

Coating: Textured Powder Coated

Bumper Removed During Fitment: No

Bumper Cut Out Required: No

Exposure: Exposed

Fitment

Fit For Toyota Landcruiser GDJL79R Cab Chassis 1GD-FTV 2.8L Diesel D-4D 3.5t 4WD 09/2023-On

Fit For Toyota Landcruiser GDJL79 Cab Chassis 1GDFTV 2.8L Diesel GX GX+ Workmate GXL Automatic 4WD 09/2023-On

Fit For Toyota Landcruiser VDJL79R Cab Chassis 1VD-FTV 4.5L Diesel TD 32V 3.5t 4WD 09/2023-On

Fit For Toyota Landcruiser VDJ79 Cab Chassis 1VDFTV 4.5L GX GXL Workmate Manual 4WD 09/2022-On

Fit For Toyota Landcruiser VDJ79 VDJ79R Cab Chassis 1VDFTV 4.5L Diesel GXL Workmate Manual 4WD 09/2022-On

Fit For Toyota Landcruiser VDJ79R Single Cab 1VDFTV 4.5L Diesel GX GXL Workmate Manual 4WD 09/2022-On

Fit For Toyota Landcruiser HZJ79R Cab Chassis 1HZ 4.2L Diesel Manual 4WD 08/2016-On

Fit For Toyota Landcruiser 79 Series Double Cab Single Cab 1VD-FTV 4.5L Diesel VDJ79R with DPF AWD 01/2016-On

Fit For Toyota Landcruiser 79 Series Single Cab 1GR-FE 4.0L Petrol GRJ79R Automatic or Manual 4WD 01/2007-On

Fit For Toyota Landcruiser HZJ79L-TJM Cab Chassis 1H-Z 4.2L Diesel D Mine Spec AWD 08/1999-On

Fit For Toyota Landcruiser 79 Series Cab Chassis 1VD-FTV 4.5L Diesel VDJ79R 70th Anniversary Special Edition Workmate Manual 4WD 10/2012-09/2022

Fit For Toyota Landcruiser 79 Series Single Cab 1VD-FTV 4.5L Diesel VDJ79R 70th Anniversary Special Edition GX GXL Workmate Manual 4WD 03/2007-09/2022

Fit For Toyota Landcruiser VDJ79R Cab Chassis 1VD-FTV 4.5L Diesel TD 32V AWD 01/2007-08/2022

Fit For Toyota Landcruiser VDJ79R Single Cab 1VD-FTV 4.5L Diesel TD 32V AWD 01/2007-08/2022

Fit For Toyota Landcruiser 79 Series Double Cab 1VD-FTV 4.5L Diesel VDJ79R 4WD 10/2012-10/2016

Fit For Toyota Landcruiser 79 Series Single Cab 1HD-FTE 4.2L Diesel HDJ79R Manual 4WD 11/2001-06/2007

Fit For Toyota Landcruiser HDJ79R Cab Chassis 1HD-FT 4.2L  Diesel TD 24V AWD 08/2001-01/2007

Fit For Toyota Landcruiser HDJ79R Single Cab 1HD-FT 4.2L Diesel TD 24V AWD 08/2001-01/2007

Fit For Toyota Landcruiser 79 Series Single Cab 1H-Z 4.2L Diesel HZJ79R Manual 4WD 10/1999-10/2007

Fit For Toyota Landcruiser 79 Series Single Cab 1FZ-FE 4.5L Petrol FZJ79R Manual 4WD 01/1999-01/2007

Fit For Toyota Landcruiser 79 Series Single Cab 1H-Z 4.2L Diesel HZJ79R AWD 01/1999-01/2007

Fit For Toyota Landcruiser HZJ75RP HZJ79R Single Cab 1H-Z 4.2L Diesel D AWD 01/1990-01/2007

Fit For Toyota Landcruiser FZJ79R Single Cab 1FZ-FE 4.5L Petrol MPFi AWD 08/1999-04/2006

Fit For Toyota Landcruiser FZJ75RP Single Cab 1FZ-FE 4.5L Petrol AWD 08/1992-08/1999

Fit For Toyota Landcruiser 75 Series Single Cab 1FZ-FE 4.5L Petrol FZJ75R Manual 4WD 01/1992-01/1999

Fit For Toyota Landcruiser 75 Series Ute 1H-Z 4.2L Diesel HZJ75R Manual 4WD 03/1990-08/1999

Fit For Toyota Landcruiser 75 Series Ute 1H-Z 4.2L Diesel HZJ75R 4WD 03/1990-11/1999

Fit For Toyota Landcruiser 75 Series Wagon 3F 4.0L Petrol FJ75R Automatic or Manual 4WD 01/1985-12/1993

Fit For Toyota Landcruiser 75 Series Single Cab 3F 4.0L Petrol FJ75R Manual 4WD 01/1985-10/1992

Fit For Toyota Landcruiser 75 Series Ute 1P-Z 3.5L Diesel 4WD 01/1990-01/1991

Fit For Toyota Landcruiser HJ75RP Single Cab 2H 4.0L Diesel D AWD 11/1984-01/1990

Fit For Toyota Landcruiser 75 Series Ute 2H 4.0L Diesel HJ75R Manual 4WD 11/1984-03/1990

Fit For Toyota Landcruiser FJ75RP Cab Chassis 3F 4.0L Petrol 4WD 11/1984-12/1989

Fit For Toyota Landcruiser 75 Series Single Cab 3B 3.4L Diesel BJ75R Manual 4WD 11/1984-12/1989

Package

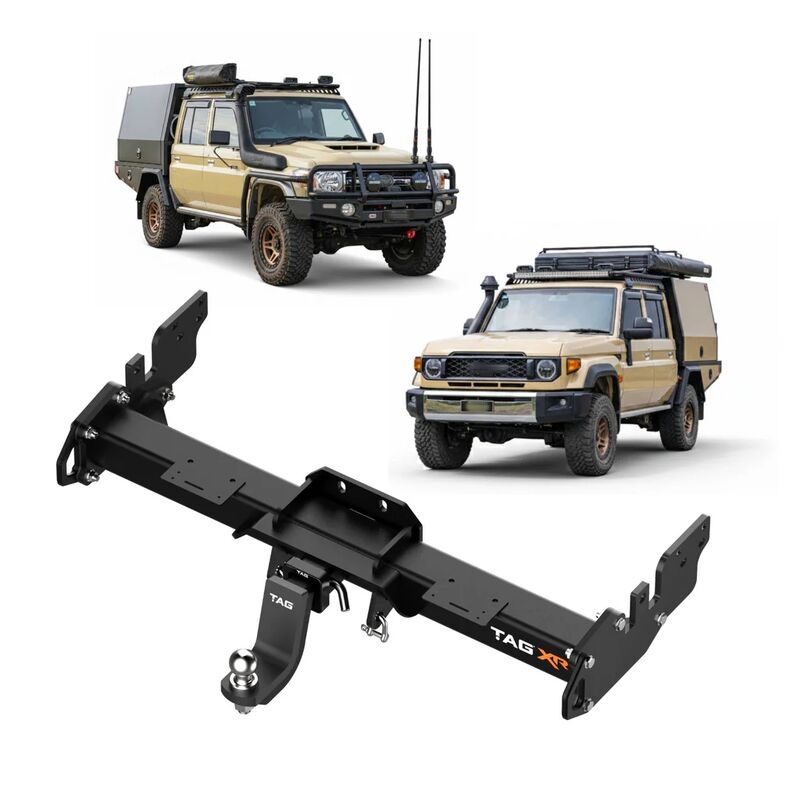

TAG 4x4 Recovery Towbar

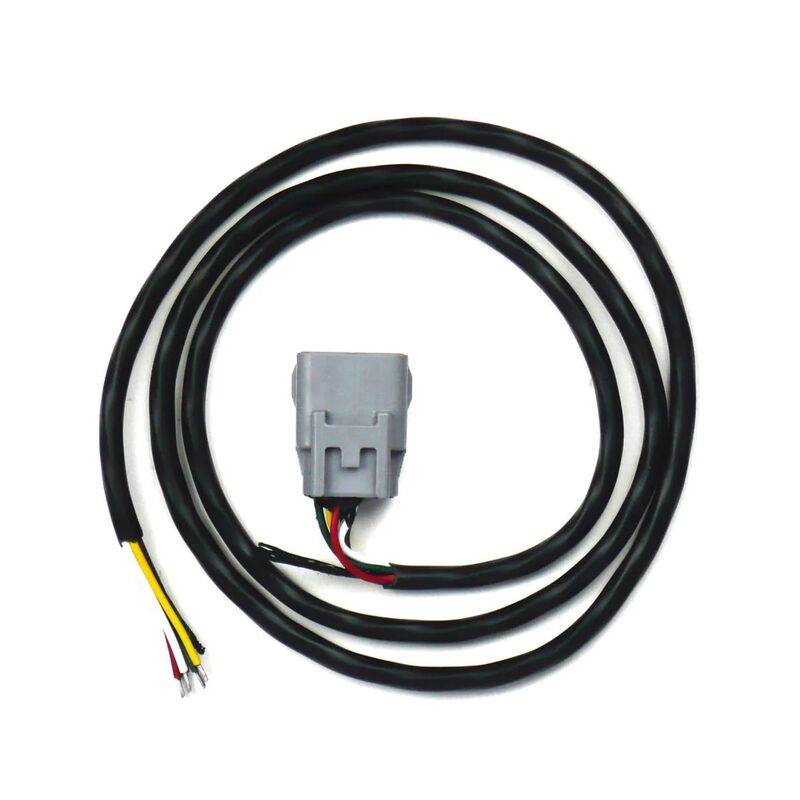

TAG Direct Fit Wiring Harness

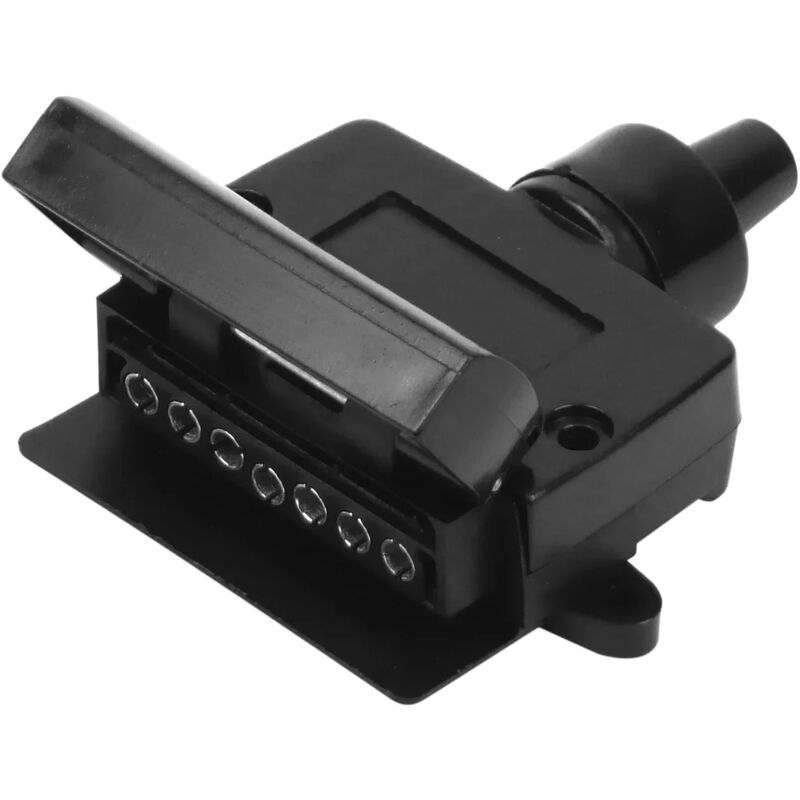

TAG 7 Pin Flat Socket - Vehicle Side
