Feature

Two WLL 4000kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Bevelled Edges To Suit Soft-Shackles.

Flush Chassis-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Textured Powder Coated Finish

Dual Top-Mounted Trailer & Anderson Plug Mounts

Class 4 Towbar - 50mm Square Hitch Receiver

Includes Zinc Tow Ball & Extreme Duty Drop Hitch Rated At 3500kg Towing Capacity / 350kg Ball Weight, Pin & Clip And D-Shackles

Tag Direct Fit Trailer Wiring Harness:TAG Direct-Fit Towbar Wiring Harnesses Are a Safe And Easy Solution To Power Your Trailer Or Caravan Lights While Not Harming Your Vehicle's Electronics.

The Plug-n-Play Design Is Bench Tested And Rated To ADR Standards, Providing a Safe And Seamless Integration Without Adversely Affecting Modern Vehicle Safety Features And Electrical Systems.

No Special Tools Or Soldering Required.

Compatible With Trailer Stability Programming (TSP), Lane Collision Avoidance Systems, Park Distance Controls (PDC).

Does Not Interfere With Brake Lights, Turning Signals And Live Wire Connection.

Please Note: A Towbar Is a Safety Critical Item And Not Always a Straightforward Fitment Due To Vehicle Manufacturing Variation. We Strongly Recommend You Get Your Towbar And Wiring Harness Installed By a Professional Towbar Or Vehicle Accessory Fitting Workshop.

Specification

Style: 7 Pin Flat

Type: Plugs & Sockets

Wiring Option: Direct Fit ECU

Fitting Time [min.]: 45 (UNT353)

Fitting Time [min.]: 90 (TXR852)

Towbar Class: Heavy Duty (4x4 Recovery)

Towbar Capacity [kg]: 3500

Recovery Load-tested: 4000kg WLL

Recovery Points: 2

Hitch Type: 50mm Square Hitch Receiver

Tow Ball Mount: L4045TXR

Coating: Textured Powder Coated

Bumper Removed During Fitment: Yes

Bumper Cut Out Required: Yes

Exposure: Concealed

Ball Weight [kg]: 350

Fitment

Fit For Nissan Patrol Y62 Wagon VK56VD 5.6L Petrol ST-L Ti Ti-L Automatic 4WD 02/2013-On

Fit For Nissan Patrol Y62 Wagon VK56VD 5.6L Petrol 4WD 12/2012-On

Package

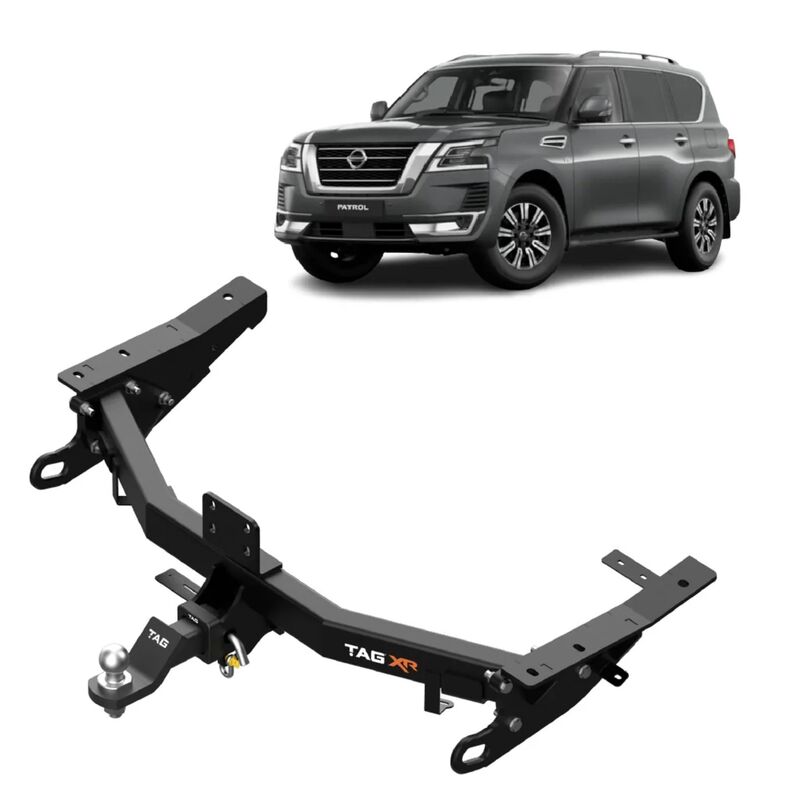

TXR852 Recovery Towbar

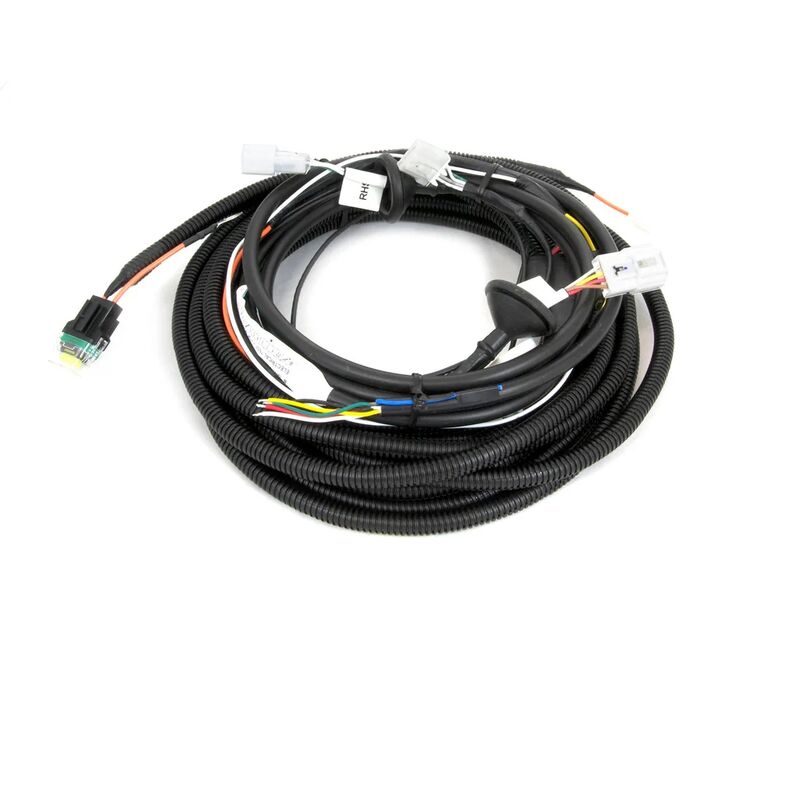

UNT353 Direct Fit Wiring Harness

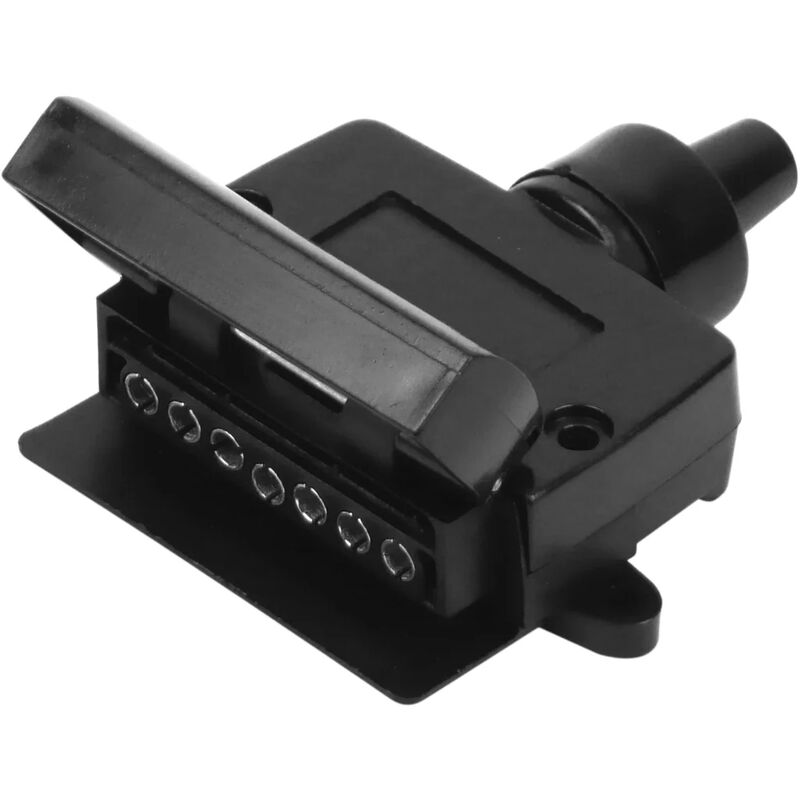

UNT032 7 Pin Flat Plug (Vehicle Side)
