Feature

Updated Design To Cater For Larger Tyres (265/70R17).

65mm x 65mm Extreme Duty Reinforced Crossbar.

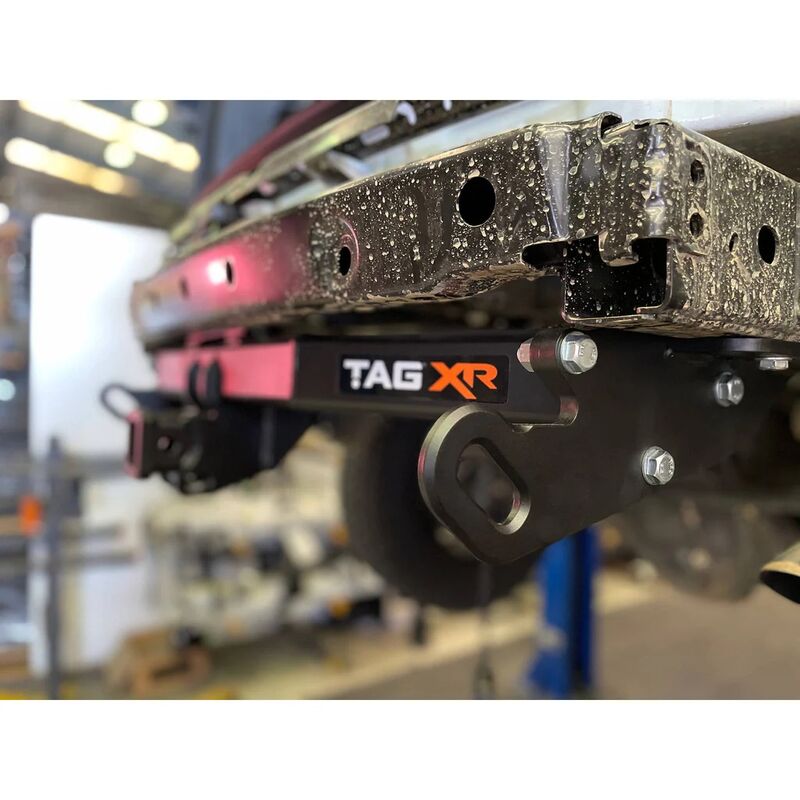

Two WLL 4000kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Bevelled Edges To Suit Soft Shackles.

Flush Chassis-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Highly Durable, Textured Extreme Duty Powder Coated Finish.

Dual Top-Mounted Trailer & Anderson Plug Mounts.

Class 4 Towbar - 50mm Square Hitch Receiver.

Includes Zinc Tow Ball & Extreme Duty Drop Hitch Rated At 3500kg Towing Capacity / 350kg Ball Weight, Pin & Clip And D-Shackles.

Fitting Instructions Now Include Bumper Cut Template.

Please Note: A Towbar Is a Safety Critical Item And Not Always a Straightforward Fitment Due To Vehicle Manufacturing Variation. We Strongly Recommend You Get Your Towbar And Wiring Harness Installed By a Professional Towbar Or Vehicle Accessory Fitting Workshop.

Specification

Diagnostic Coding: Not Required

Reverse Sensor Cut Off: Automatic

Wiring Option: Direct Fit ECU

Fitting Time [min.]: 30 (UNT351)

Fitting Time [min.]: 90 (TXR832)

Towbar Class: Heavy Duty (4x4 Recovery)

Towbar Capacity [kg]: 3500

Recovery Load-tested: 4500kg WLL

Recovery Points: 2

Hitch Type: 50mm Square Hitch Receiver

Tow Ball Mount: L4045STXR

Coating: Textured Powder Coated

Bumper Removed During Fitment: Yes

Bumper Cut Out Required: Yes

Exposure: Partially concealed

Ball Weight [kg]: 350

Fitment

Fit For Isuzu MU-X SUV TFS TFR UCR UCS RZ4E-TC 1.9L Diesel Ddi  AWD 11/2023-On

Fit For Isuzu MU-X SUV TFS TFR RZ4E-TC 1.9L Diesel Ddi RWD 11/2023-On

Fit For Isuzu MU-X SUV RJ 4JJ3-TCX 3.0L Diesel LS-M LS-T LS-U Automatic 4WD RWD 07/2021-On

Fit For Isuzu MU-X SUV TFS TFR 4JJ3-TCX 3.0L Diesel Ddi 4WD RWD 06/2021-On

Package

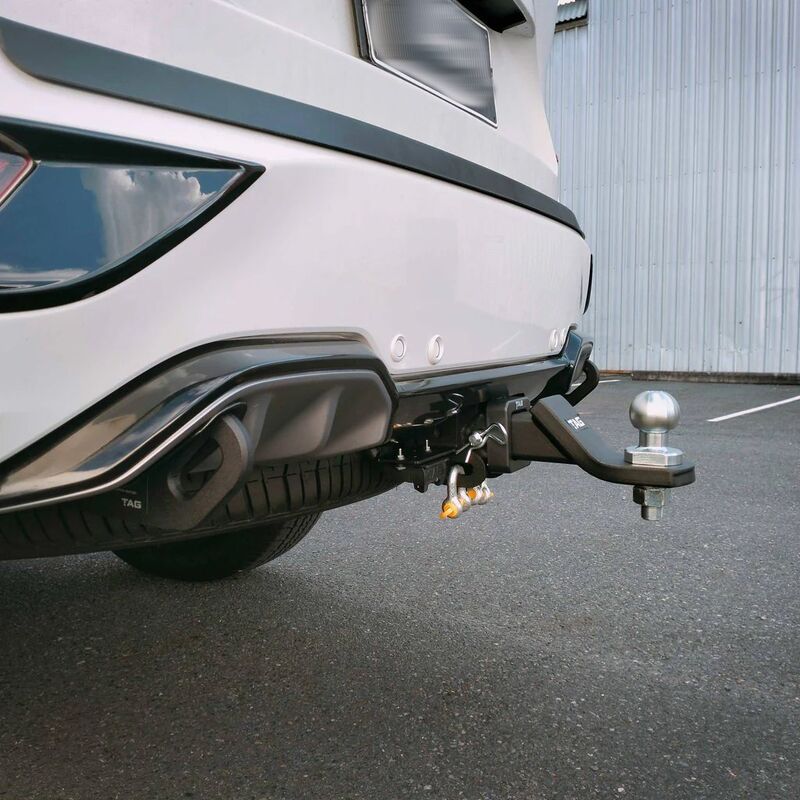

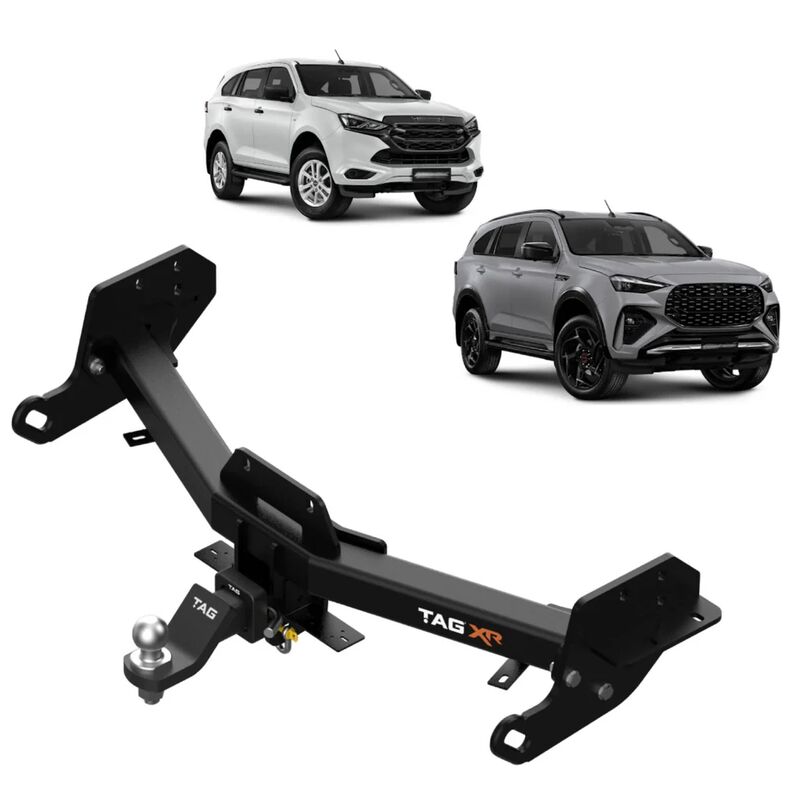

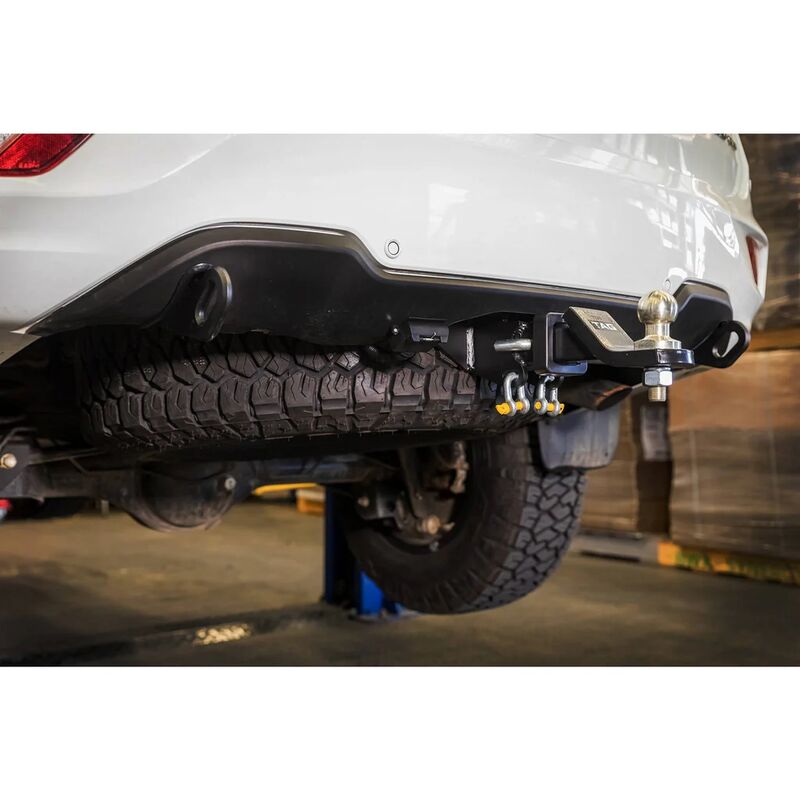

TAG 4x4 Recovery Towbar

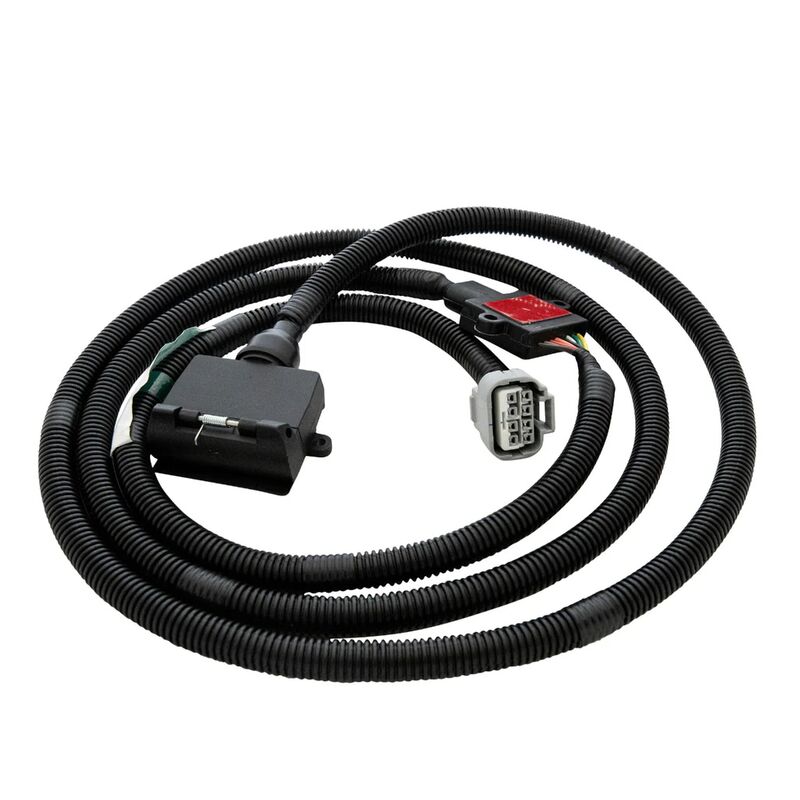

TAG Towbar Wiring Direct Fit - ECU

TAG 7 Pin Flat Socket - Vehicle Side
