TAG Heavy Duty Extended Towbar and Direct Fit Wiring Harness For Ford Ranger PX2 PX3 Cab Chassis 06/2015 - 05/2022
SKU code: SWD-TAG-T7F706-K102
T7F706-K102
Feature
TAG Heavy Duty Towbars are designed and manufactured in Australia
Extended, 3-Piece Design (Suits Extended Tray or Canopy)
Class 4 Towbar - 50mm Square Hitch Receiver
Durable Powder Coated Finish
Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles
Brink Wiring Harness:
No special tools or soldering required.
Compatible with Trailer Stability Programming (TSP), Lane Collision Avoidance systems, Park Distance Controls (PDC).
Does not interfere with brake lights, turning signals and live wire connection.
Each wiring kit includes harness, ECU module, 7-Pin Flat Socket, installation instructions and connection guide.
Full trailer light functionality and no fault codes without coding tool. For wiring harness to work with all factory sensors and features coding is required.
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications
Style: 7 Pin Flat
Type: Plugs & Sockets
Fitting Time [min.]: 60 (BR-712365)
Fitting Time [min.]: 30 (T7F706)
Wiring Option: CANBUS Direct Fit Wiring
Diagnostic Coding: Optional For All Features
Reverse Sensor Cut Off: Coding required
Fog Cut Off: Automatic

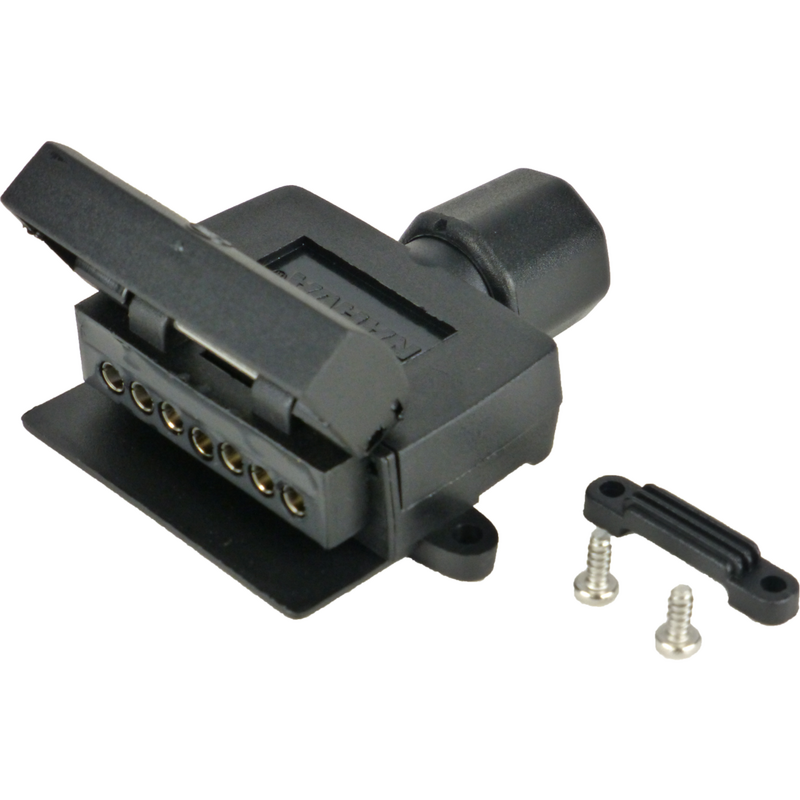

Plug Connection: 7 Pin Flat Socket
Towbar Class: Heavy Duty (Extended 3-Piece)
Towbar Capacity [kg]: 3500
Hitch Type: 50mm Square Hitch Receiver
Tow Ball Mount: L4045
Coating: Powder Coated
Bumper Removed During Fitment: No
Bumper Cut Out Required: No
Exposure: Exposed
Fits Vehicle Year From (Month): 09
Ball Weight [kg]: 350
Fitment
Ford Ranger (09/2011 - 06/2022)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Double Cab | 4WD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P5AT | 3.2L | Diesel | XL Double Cab | 4WD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Hi-Rider | RWD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Hi-Rider Double Cab | RWD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Hi-Rider Super Cab | RWD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Low Rider Single Cab | RWD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P5AT | 3.2L | Diesel | XL Single Cab | 4WD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P5AT | 3.2L | Diesel | XL Super Cab | 4WD |
| FORD | RANGER | 07/2016 | 05/2022 | Cab Chassis | PX (PX2, PX3) | P5AT | 3.2L | Diesel | XL, SPORT | Automatic/Manual 4WD |
| FORD | RANGER | 08/2015 | 05/2022 | Cab Chassis | PX2 | P4AT | 2.2L | Diesel | SUPER CAB XL HIRIDER | Manual RWD |
| FORD | RANGER | 08/2015 | 05/2022 | Cab Chassis | PX (PX2, PX3) | P4AT | 2.2L | Diesel | XL | Manual 4WD |
| FORD | RANGER | 08/2015 | 05/2022 | Cab Chassis | PX (PX2, PX3) | P4AT | 2.2L | Diesel | XL | Manual RWD |
| FORD | RANGER | 06/2015 | 05/2022 | Cab Chassis | PX (PXII, PXIII) | P4-AT | 2.2L | Diesel | TDdi | AWD |
| FORD | RANGER | 06/2015 | 05/2022 | Cab Chassis | PX (PXII, PXIII) | P4-AT | 2.2L | Diesel | TDdi | RWD |
| FORD | RANGER | 11/2011 | 05/2022 | Cab Chassis | PX (PX, PXII, PXIII) | P5-AT | 3.2L | Diesel | TDdi | 4WD |
| FORD | RANGER | 09/2011 | 06/2022 | Cab Chassis | PX (PX1, PX2, PX3) | P5AT | 3.2L | Diesel | SUPER CAB XL | Automatic/Manual 4WD |
| FORD | RANGER | 09/2011 | 03/2022 | Cab Chassis | PX (PX1, PX2, PX3) | P5AT | 3.2L | Diesel | XL, XL PLUS | Manual 4WD |
| FORD | RANGER | 11/2011 | 06/2015 | Cab Chassis | PX | P4-AT | 2.2L | Diesel | TDdi | RWD |
Note: Premium Powder Coated 3-Piece Heavy Duty Extended Towbar and Direct Fit Wiring Harness To Suit Cab Chassis Models With Extended Tray or Canopy
Package

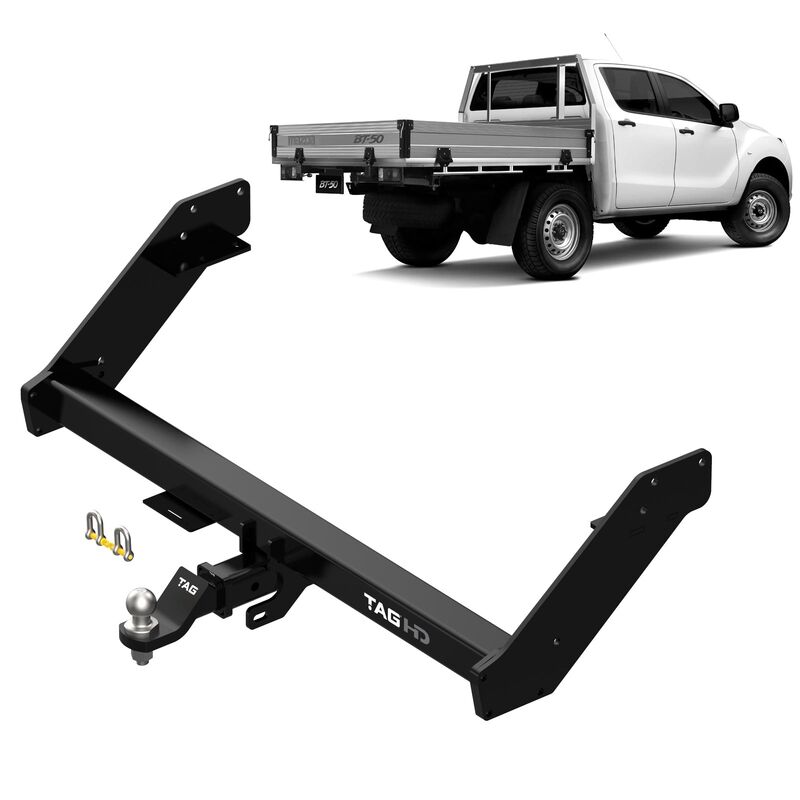

TAG Heavy Duty Extended 3-Piece Towbar
BRINK Direct Fit CANbus Wiring Harness with 7 Pin Flat plug
| SKU | SWD-TAG-T7F706-K102 |
| Brand | TAG |
| Shipping Weight | 50.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.300m |
| Shipping Length | 1.300m |
| Shipping Cubic | 0.195000000m3 |
