TAG Heavy Duty Towbar & Direct Fit Wiring For Toyota Prado 120 Series 09/2002 - 10/2009
SKU code: SWD-TAG-T7T729-K202
T7T729-K202
Feature
TAG Heavy Duty Towbars are designed and manufactured in Australia
3-Piece Design for easier installation
Class 4 Towbar - 50mm Square Hitch Receiver
Durable Powder Coated Finish
Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles
Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
Specifications
Diagnostic Coding: Not Required
Reverse Sensor Cut Off: Not Applicable
Fog Cut Off: Not Applicable
Wiring Option: Direct Fit Wiring Harness
Fitting Time [min.]: 30
Style: 7 Pin Flat
Type: Plugs & Sockets
Towbar Class: Heavy Duty (3-Piece Design)
Towbar Capacity [kg]: 3000
Hitch Type: 50mm Square Hitch Receiver
Coating: Powder Coated
Bumper Removed During Fitment: No
Bumper Cut Out Required: No
Exposure: Exposed
Ball Weight [kg]: 300
Fitment
Toyota Prado (09/2002 - 10/2009)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| TOYOTA | PRADO | 08/2005 | 07/2009 | SUV | GRJ120 | 1GR-FE | 4.0L | Petrol | AWD | |
| TOYOTA | PRADO | 08/2005 | 07/2009 | SUV | KZJ120 | 1KZTE | 3.0L | Diesel | D | AWD |
| TOYOTA | PRADO | 07/2005 | 08/2009 | SUV | GRJ120R | 1GRFE | 4.0L | Petrol | PRADO TX 4WD, PRADO TX LIMITED 4WD, 60TH SPECIAL EDITION 4WD | Automatic 4WD |
| TOYOTA | PRADO | 08/2004 | 08/2009 | SUV | TRJ120R | 2TRFE | 2.7L | Petrol | PRADO TX 4WD, PRADO TX LIMITED 4WD, 60TH SPECIAL EDITION 4WD | Automatic 4WD |
| TOYOTA | PRADO | 08/2004 | 10/2009 | Wagon | 120 Series | 1KD-FTV | 3.0L | Diesel | KDJ120R | AWD |
| TOYOTA | PRADO | 08/2004 | 10/2009 | Wagon | 120 Series | 3.0L | Diesel | KDJ120R | AWD |
| TOYOTA | PRADO | 03/2003 | 10/2009 | SUV | GRJ120R | 1GRFE | 4.0L | Petrol | Automatic 4WD | |
| TOYOTA | PRADO | 03/2003 | 10/2009 | SUV | GRJ120R | 1GRFE | 4.0L | Petrol | PRADO GX, PRADO GX LIMITED, PRADO GXL | Automatic/Manual 4WD |
| TOYOTA | PRADO | 03/2003 | 08/2009 | SUV | GRJ120 | 1GR-FE | 4.0L | Petrol | V6 WTi | AWD |
| TOYOTA | PRADO | 03/2003 | 08/2009 | Wagon | GRJ120 | 1GR-FE | 4.0L | Petrol | V6 WTi | AWD |
| TOYOTA | PRADO | 03/2003 | 02/2007 | SUV | KZJ120R | 1KZTE | 3.0L | Diesel | Automatic/Manual 4WD | |
| TOYOTA | PRADO | 10/2002 | 07/2007 | SUV | KDJ120R | 1KD-FTV | 3.0L | Diesel | PRADO TX, PRADO TX DIESEL TURBO 4WD, PRADO TX LIMITED 60TH SPECIAL EDITION DIESEL TURBO 4WD | Automatic 4WD |
| TOYOTA | PRADO | 09/2002 | 02/2007 | SUV | KZJ120 | 1KZ-TE | 3.0L | Diesel | D | AWD |
| TOYOTA | PRADO | 09/2002 | 02/2007 | Wagon | KZJ120 | 1KZ-TE | 3.0L | Diesel | D | AWD |
| TOYOTA | PRADO | 10/2002 | 06/2005 | SUV | VZJ120R | 5VZFE | 3.4L | Petrol | PRADO, PRADO TX, PRADO TX 4WD, PRADO TX LIMITED 4WD | Automatic/Manual 4WD |
| TOYOTA | PRADO | 10/2002 | 06/2005 | Wagon | KDJ125 | 1KDFTV | 3.0L | Diesel | RX, RZ | Automatic 4WD |
Package
TAG Heavy Duty 3-Piece Towbar
TAG Direct Fit Wiring Harness

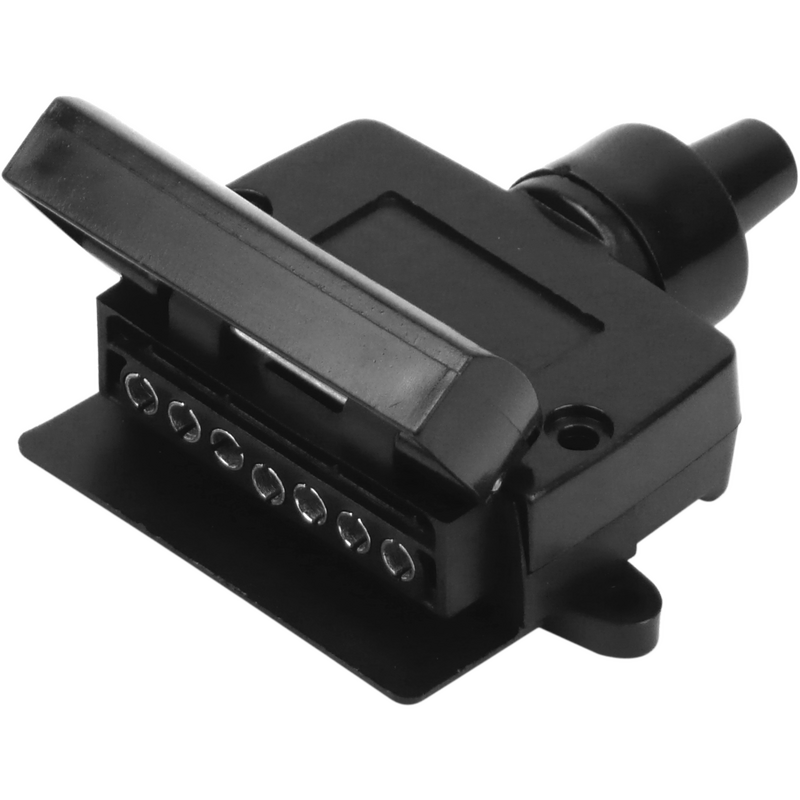

TAG 7 Pin Flat Socket - Vehicle Side
| SKU | SWD-TAG-T7T729-K202 |
| Brand | TAG |
| Shipping Weight | 50.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.300m |
| Shipping Length | 1.300m |
| Shipping Cubic | 0.195000000m3 |
