Product Description

Ultimate9 Nudge Bars Provide a Layer Of Protection For The Front Of Your Vehicle To Shield Vital Components Such As The Radiator In The Event Of An Accident.

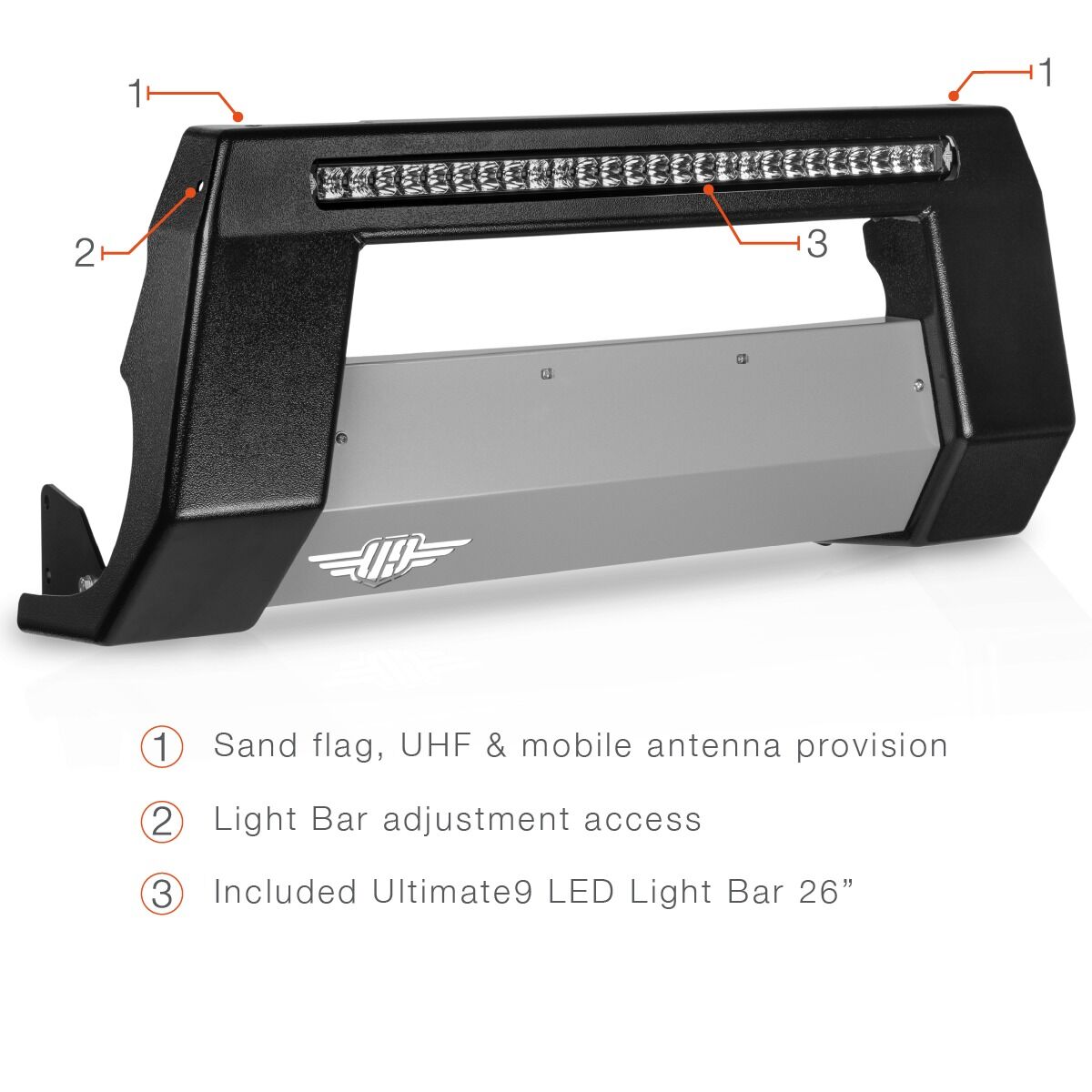

Their Design Has a Low Impact On Front-End Weight And Also Functions As a Mounting Platform With Provision For UHF & Mobile Phone Antennas, Sand Flags And Additional Ultimate9 LED Light Bars.

Designed, Engineered And Manufactured In Australia With Australian 3mm Steel, The Low-Profile, Over-Bumper Design Offers Minimal Forward Projection And Is Packaged With An Ultimate9 LED Light Bar Nestled In The Front Face.

Finished In a Black Textured Powder Coat With a Silver Coated Centre Pan For Corrosion Protection And a Modern Feel.

Feature

Australian-Made: Designed, Engineered, And Manufactured In Australia.

Steel Frame: 100% Australian-Made Steel.

Airbag Compatible: Tested For Airbag Compatibility

ADR Compliant: Designed To Meet ADR Standards.

Low Profile: Over Bumper Design With Minimal Forward Projection

LED Lighting: Includes An Ultimate9 LED Light Bar 26"

Lightweight: Weighing Under 30Kg With Included Light Bar

Corrosion Protected: Zinc-Plated.

Finish: Black Textured Powder Coat & Silver Coated Centre Pan

Specification

Material (Nudge Bar): 3mm Steel

Material (Centre Pan): 1.6mm Steel

Material (Mounts): 6mm Steel

Protective coat: Zinc Plated

Finish Coat (Nudge Bar): Black Textured Powder Coat

Finish Coat (Centre Pan): Silver Powder Coat

ADR Compliant

Airbag Compatible

Fitment

Fit For Isuzu D-Max 3rd Gen RG X-Terrain 2020-ON

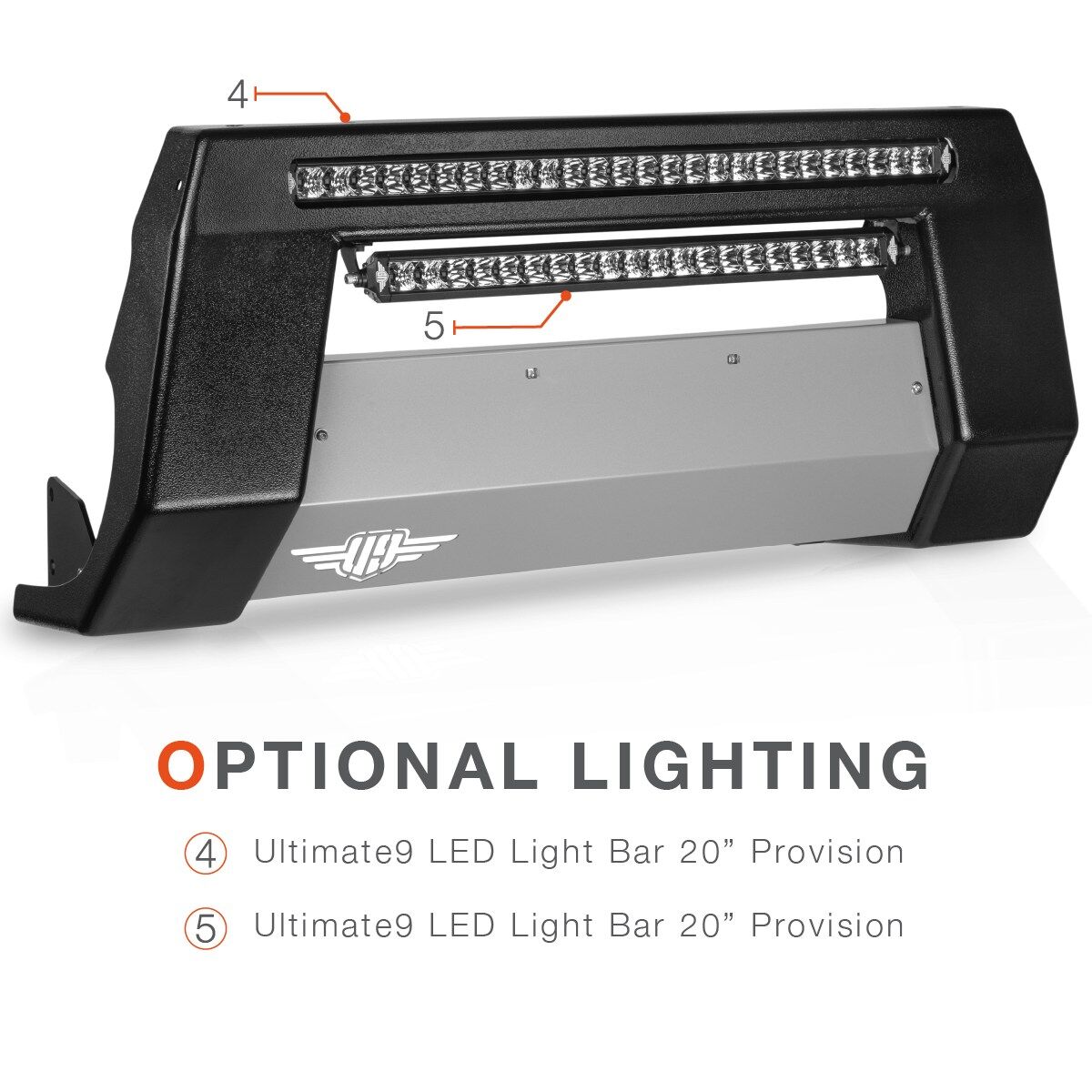

Optional Lighting

The Ultimate Nudge Bar to Suit Isuzu D-Max 2020 - On (3rd Gen) Is Designed To Fit The Below Light Bars Using Pre-Laser-Cut Points, Along With The Included Light Bar:

Ultimate9 LED Light Bar 20" - Installs On The Top Of The Nudge Bar

Ultimate9 LED Light Bar 20" - Installs On The Bottom Of The Nudge Bar

Note: The Harness Below Is Required When Adding All Three Light Bars.

Ultimate9 Auxiliary Loom Twin Output Connector

Package

Nudge Bar

Ultimate9 LED Light Bar 26"

Ultimate9 Auxiliary Loom Twin Output Connector

Parking Sensor Extension Looms

High Beam Adaptor (LED)

OE Style Light Switch

Installation Hardware

Instructions
