Feature

Extreme Pulling Capacity: Delivers 6803kg (15000lbs) of single-line pull, perfect for heavily loaded 4WDs and extreme off-road scenarios.

Dual Control Options: Comes standard with a wired remote (featuring a 3.6m / 11.8ft lead) and a wireless remote for flexible, safe operation.

Reliable Braking: An automatic brake in the motor bracket ensures absolute control and prevents rollback under heavy loads.

MegaPro Upgrades: Includes the Carbon Offroad MegaPro Premium CNC billet type 3 hard anodised multi-position fairlead for superior synthetic rope protection.

Specification

Part Number: CW-XD15-V3

Rated Line Pull: 6803kg (15000lbs) single-line

Motor: 12V DC 7.0 HP series wound

Geartrain: 3-Stage Planetary

Gear Ratio: 218:1

Brake: Automatic brake in the motor bracket

Synthetic Rope: 11mm x 24m (7/16" x 78.7ft)

Fairlead: MegaPro CNC billet type 3 hard anodised

Drum Dimensions: 63.5mm x 224mm (2.5" x 8.8")

Mounting Bolt Pattern: 254mm x 114.3mm (10.0" x 4.5")

Recommended Battery: 650 CCA minimum for winching

Winch Dimensions (L x W x H): 556.5mm x 158mm x 187mm (21.9" x 6.2" x 7.4")

Packing Dimensions (L x W x H): 580mm x 200mm x 220mm (22.8" x 7.9" x 8.7")

Installed Weight: 26.7kg (58.9 lbs)

12V DC Performance Specs

Package

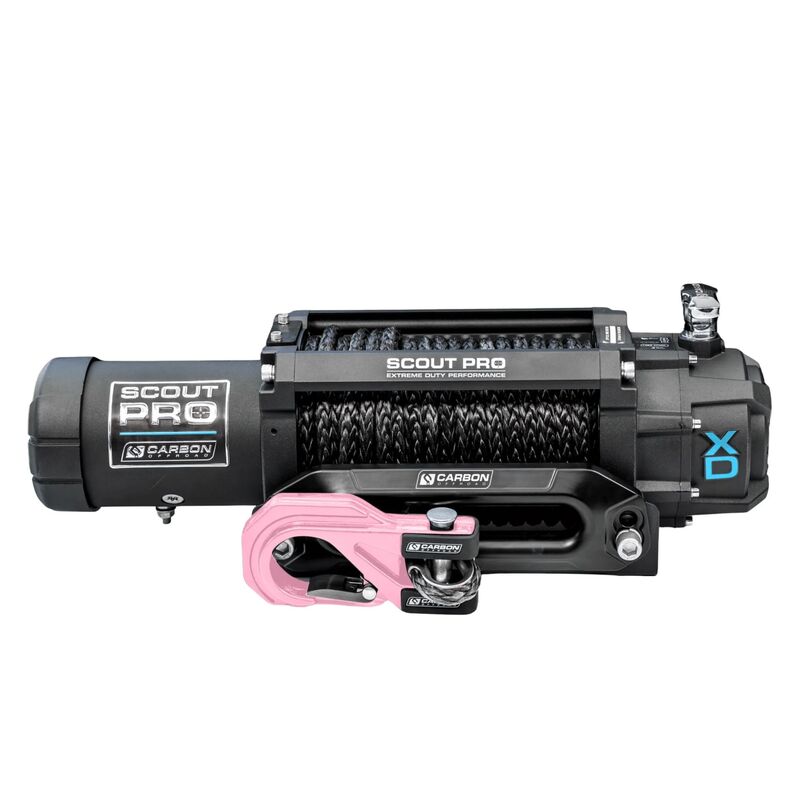

1 x Carbon Offroad CW-XD15-V3 Winch

1 x Synthetic Rope (11mm x 24m / 7/16" x 78.7ft)

1 x Carbon Offroad MegaPro Fairlead

1 x Control Box Complete with Cables

1 x Wired Remote Control (3.6m / 11.8ft lead)

1 x Wireless Remote Control

1 x Mounting Bolts Kit
