Fitment

Fit For Fiat Compatible for Lancia Delta 2.0 16v Turbo

Fit For Fiat 131 compatible for Abarth

Fit For Alfa 155 Q4 2.0 16v



Specification

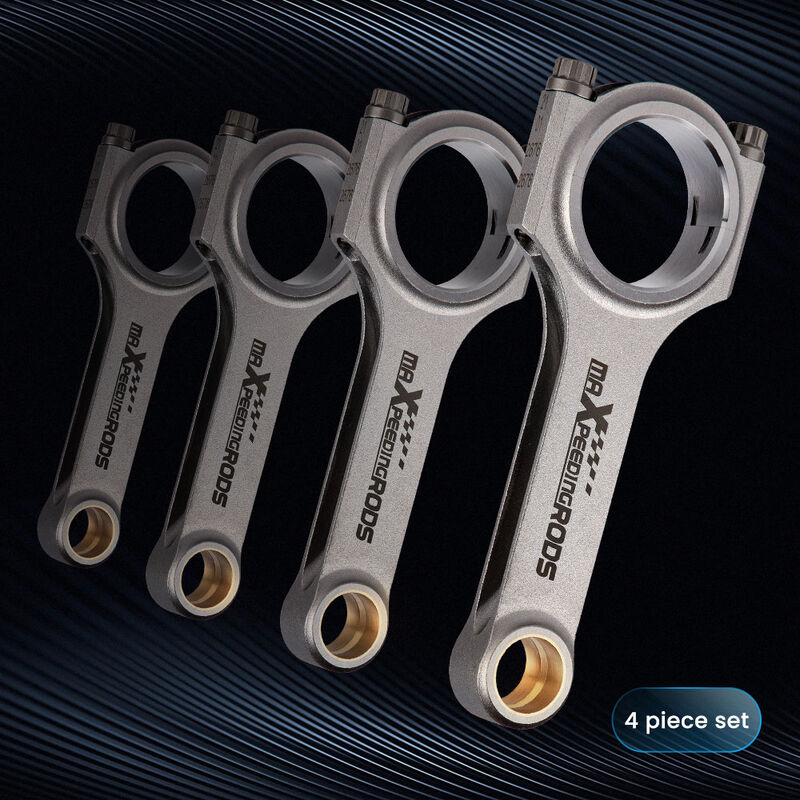

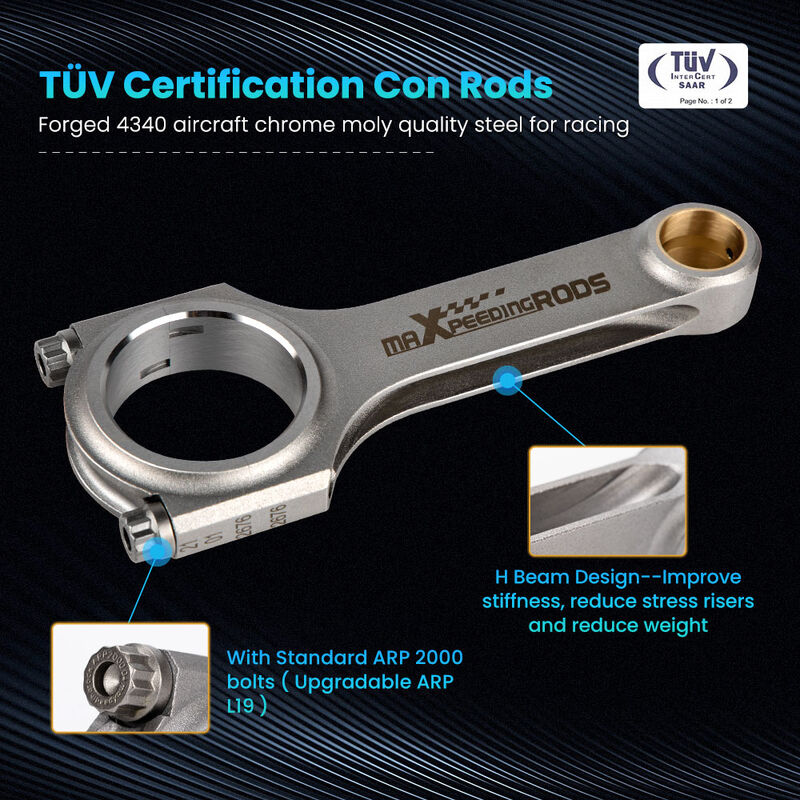

Performance Con Rods

Type: Forged 4340 aircraft chrome moly quality steel for racing

H-beam Conrods Quantity: 4 Pieces a set

Bolts: Including Genuine ARP 2000 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: ARP 2000 3/8" bolts

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 9000rpm



Dimensions

Length between the two centers: 145mm

Diameter of the big tip : 53.91mm

Diameter of the small tip: 22mm

Width of the big tip: 25.7mm

Width of the small tip: 25.7mm



Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

-Designed and processed by CNC machine.

-All big and small ends are finished with SUNNEN honing machine

-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

-100% X-rayed, sonic tested and magnafluxed

-Multi-stage heat treated

-Shot peened to relieve stress

-Come with the bronzed bushing suitable for the floating piston pin



Package

4 x Connecting Rods



Notice

Professional installation is highly recommended (No Instruction Included)

Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-FIA-145A
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
