Fitment

Fit For Nissan S13 Silvia 180SX Bluebird Sunny CA18 CA18DE CA18DET
Fit For Nissan Sunny B12 CA18DE 1985 - 1990
Fit For Nissan Bluebird U11 series CA18ET/DET turbo 1983 - 1987
Fit For Nissan Bluebird T12/T72 Turbo Violet T12 series 1.8 L CA18ET 1986 - 1990

Specification

- TÜV Certification Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing
- H-beam Conrods Quantity: 4 Pieces as showing in picture
- Bolts: Including Genuine ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 3/8" bolts
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800PS per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 9000rpm

Dimensions

Center to center length: 133mm
Big end diameter: 48mm
Small end diameter: 20mm
Big end width: 24.2mm
Small end width: 21mm

Feature

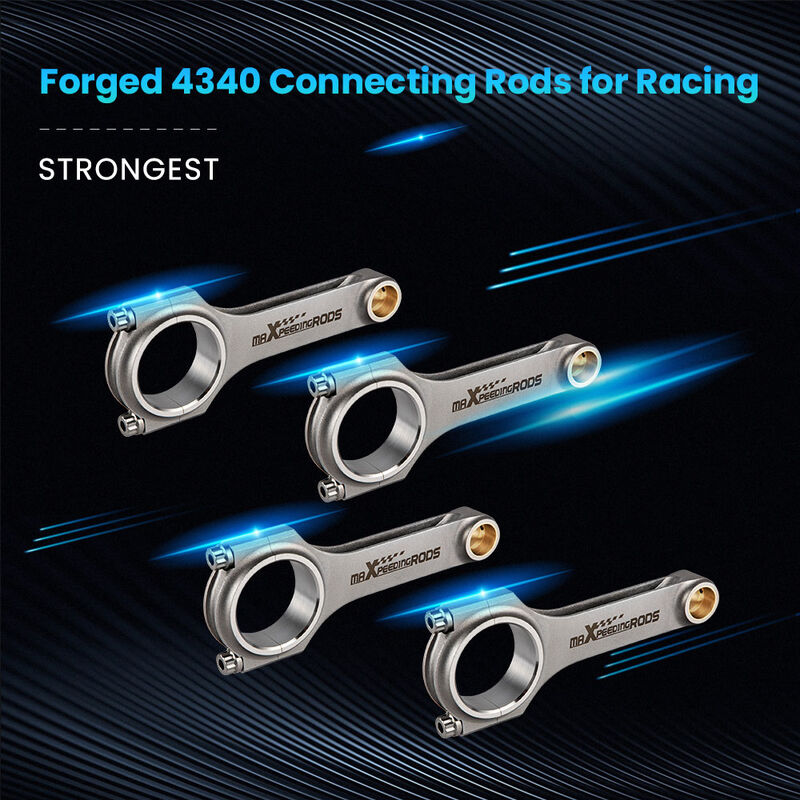

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

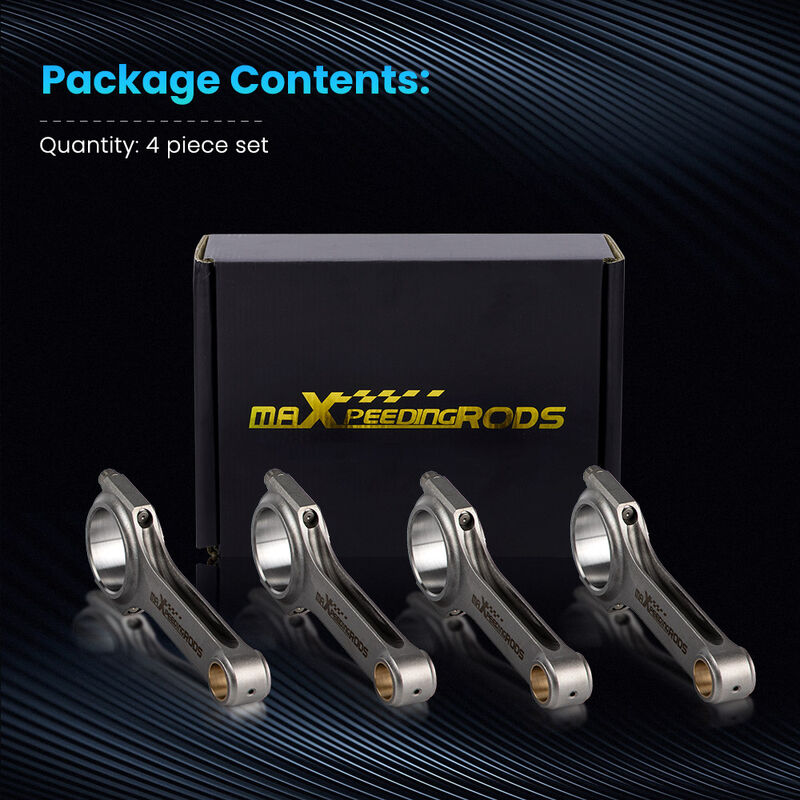

Package

4 x Connecting Rods

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
