**Supplier Stock

• Ships Directly From Our Supplier
• No Pickup Available
• Not Eligible For Same-Day Dispatch



Fitment

Fit For Honda/Acura K24 K24A1 K24A2 K24A3 K24A4 K24A6 K24A8 K24Z 2.4L

Specification

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

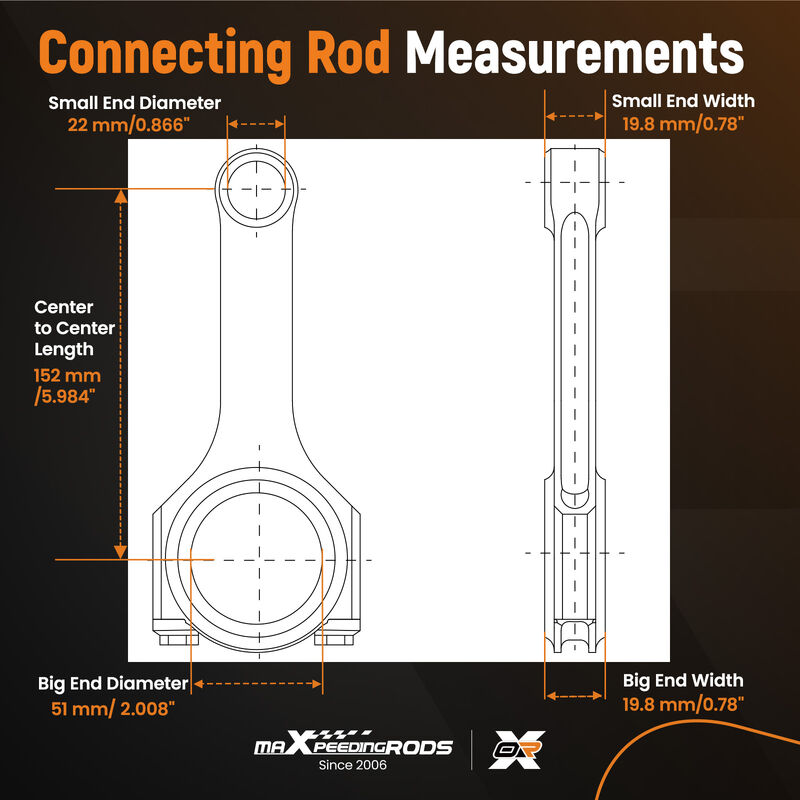

Dimension

Connecting Rod Length Center to Center: 152.00mm/5.984in
Approximate Connecting Rod Weight: 528g
Big End Bore Diameter: 51.00mm/2.008in
Pin End Bore Diameter: 22.00mm/0.866in
Big End Width: 19.80mm/0.780in
Small end width: 19.80mm/0.780in

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm

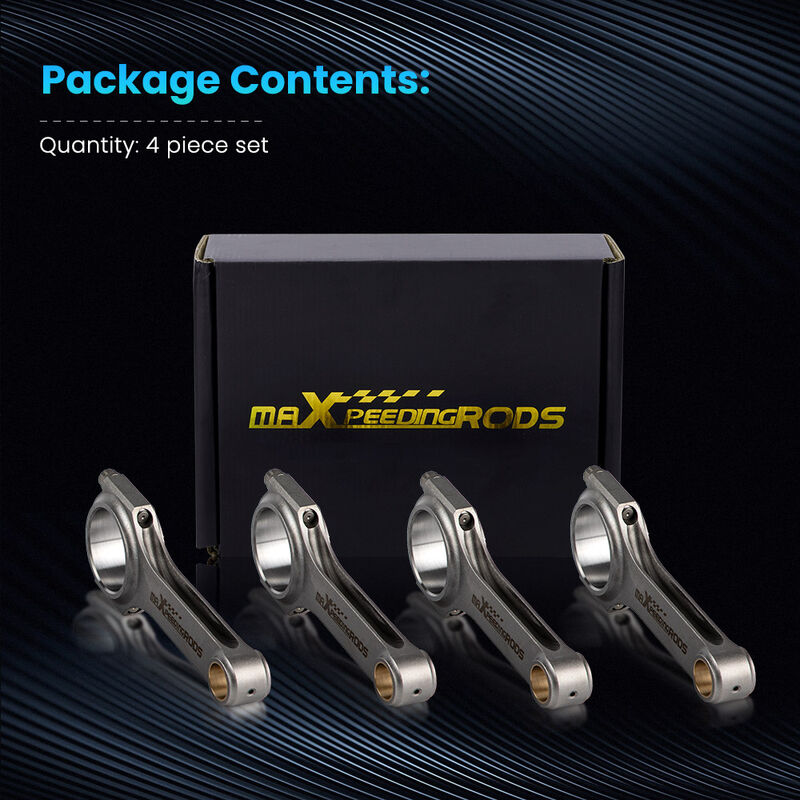

Package

4 x Connecting Rods

SKU MPR-CR-HON-152
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
