Fitment

Fit For Ford YB Fit For Sierra Escort 2.0 RS 16V Cosworth RS500

Specification

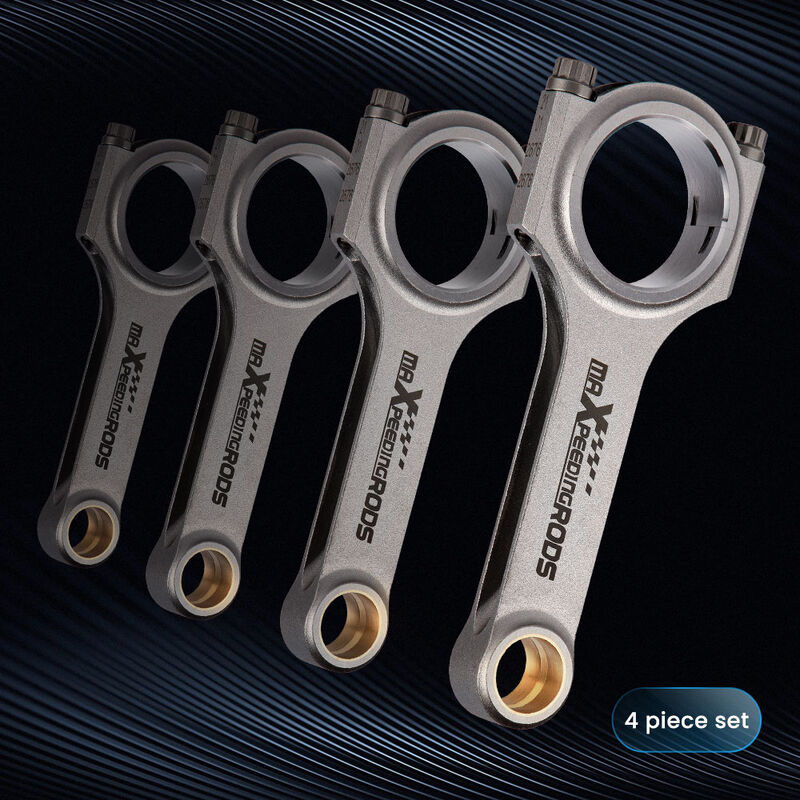

Type: 4340 EN24 H-Beam Connecting Rod
Quantity: 4 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 bolts
Bolts size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Note: Extra cost for upgrading to ARP L19 bolts

Dimensions

Center to center length: 128.55mm(133.58mm is also available,contact us please)
Big end diameter: 55.00mm
Small end diameter: 24.00mm
Big end width: 25.90mm
Small end width: 25.90mm

Feature

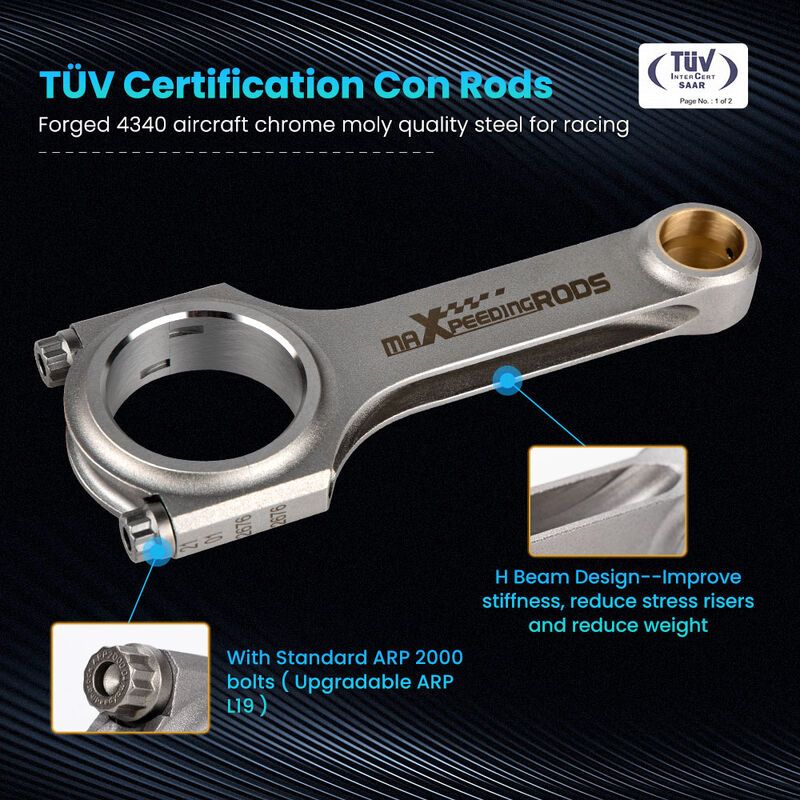

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Package

4 x Connecting Rods



Note

Professional installation is highly recommended (No Instruction Included)
For any needs please contact us

SKU MPR-CR-FOR-128.55
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
