Fitment

Fit For Ford Fiesta CVH 1.6L RS Turbo
Fit For Ford Escort Mk 3 (Europe)1.6 L Turbo 1980-1986
Fit For Ford Escort Mk 4 (Europe)1.6 L Turbo 1986-1990
Fit For Ford Fiesta Mk 3 1.6 L Turbo 1989-1995

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Dimensions

Center to center length:132mm/5.197"
Big end diameter:50.91mm/2.004"
Small end diameter:20.63mm/0.812"
Big end width:24.3mm/0.957"
Small end width:24.3mm/0.957"

Specification

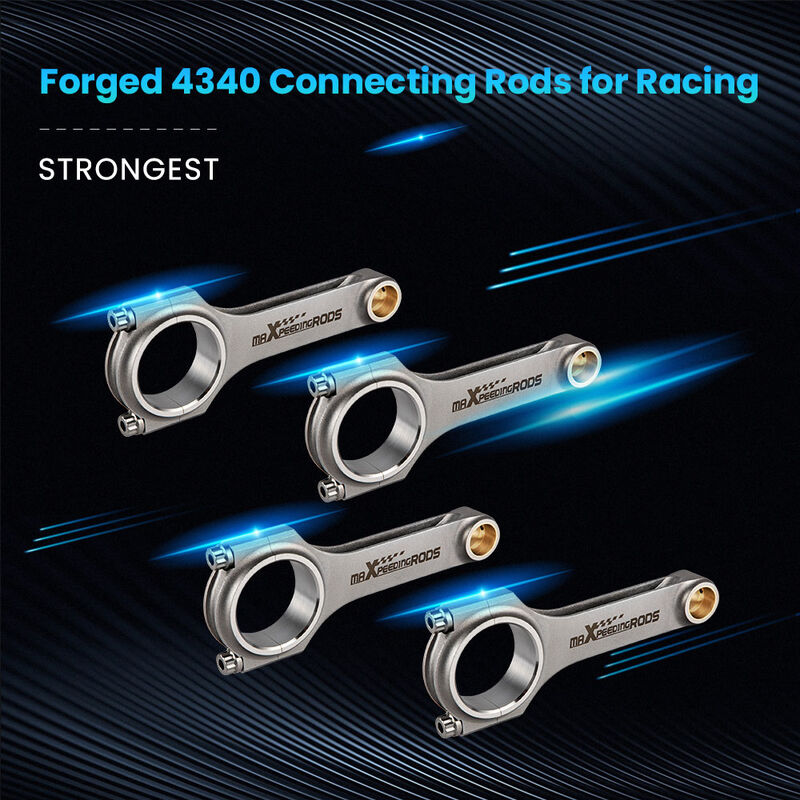

- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing
- H-beam Conrods Quantity: 4 Pieces as showing in picture
- Bolts: Including ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 5/16" bolts
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600~800HP
- Strength of the fastening (PSI): :200,000 - 230,000PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 7000-9000 rpm

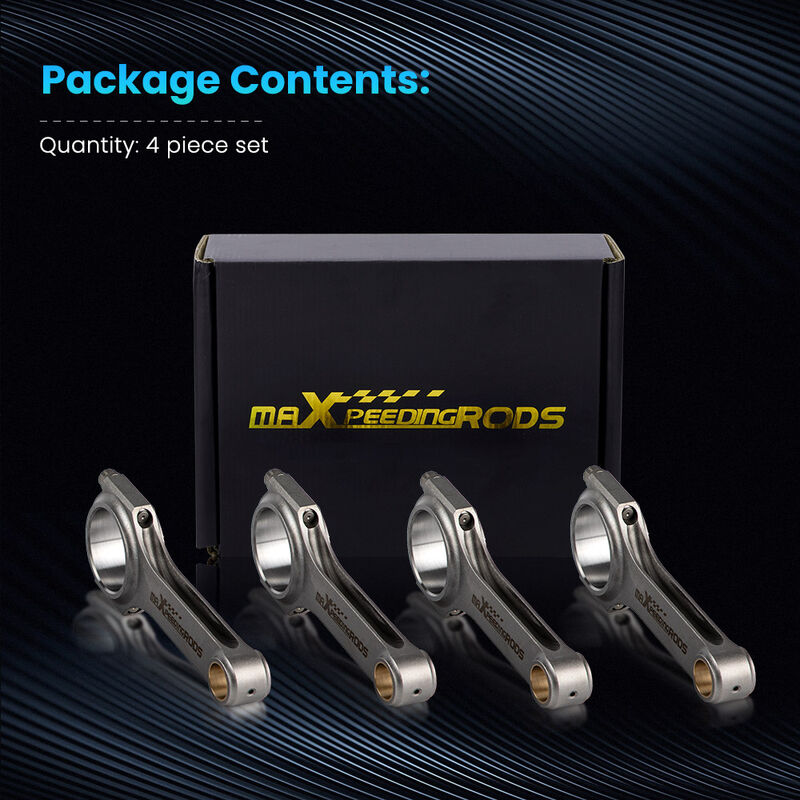

Package

4 x Connecting Rods



Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-FOR-132
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
