Fitment

Fit For Nissan Patrol Safari 4.2L TD42 Turbo Diesel with 30mm pin

Specification

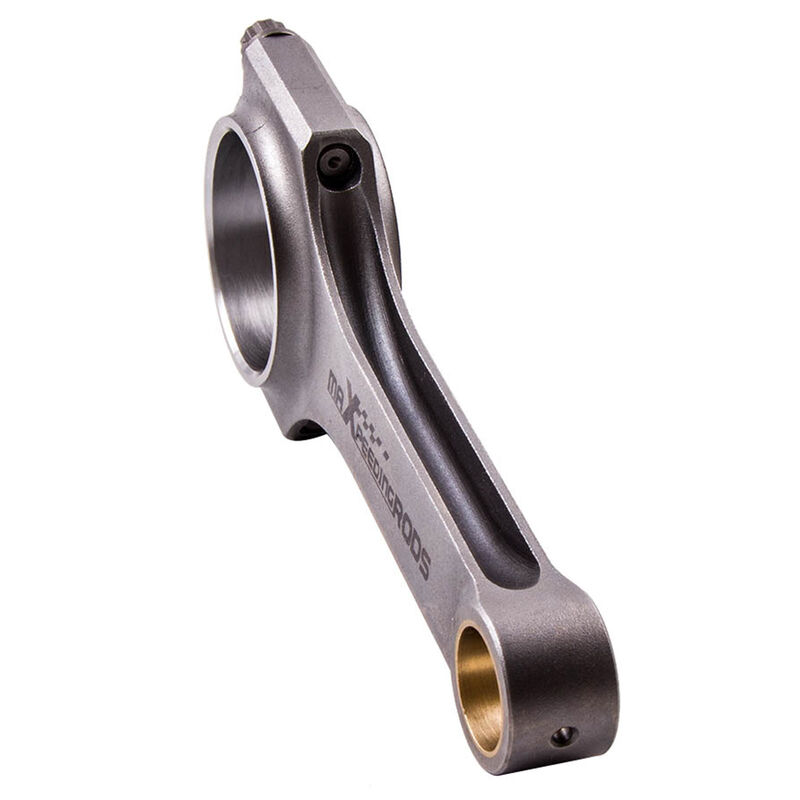

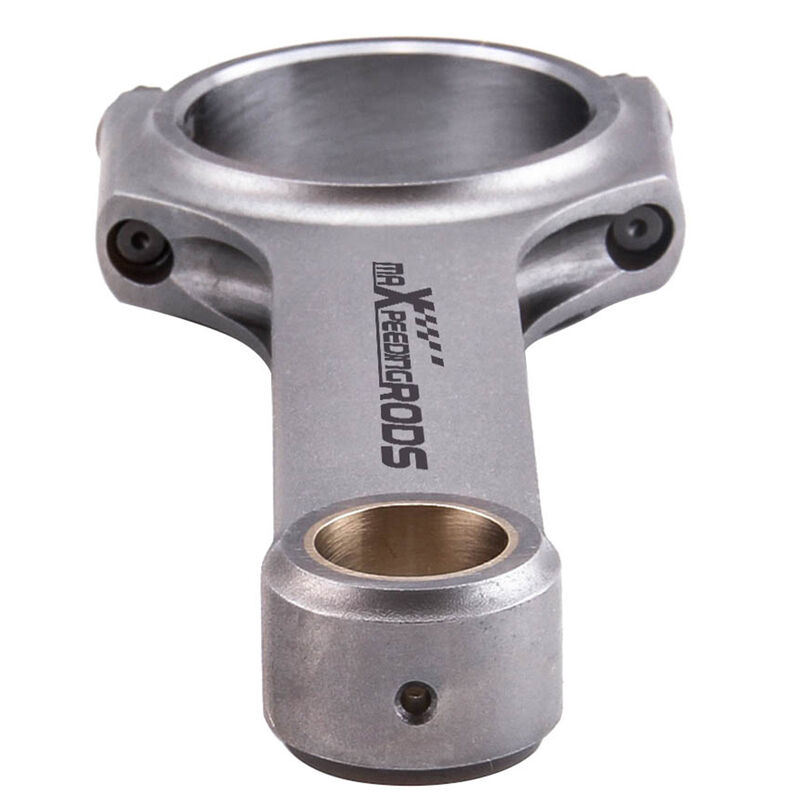

Performance Con Rods

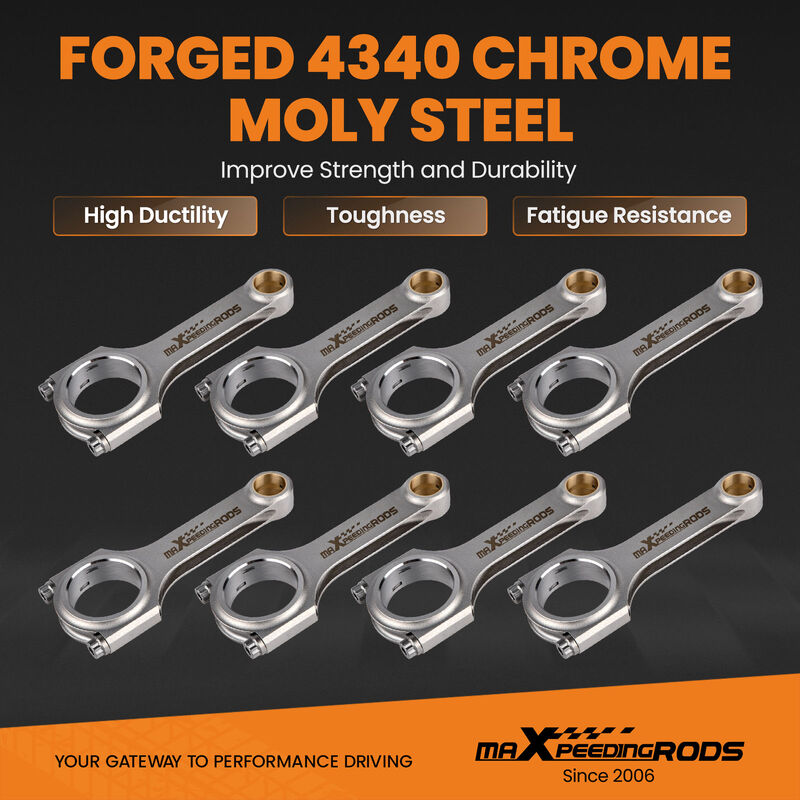

Type: Forged 4340 aircraft chrome moly quality steel for racing

H-beam Conrods Quantity: 6 Pieces a set

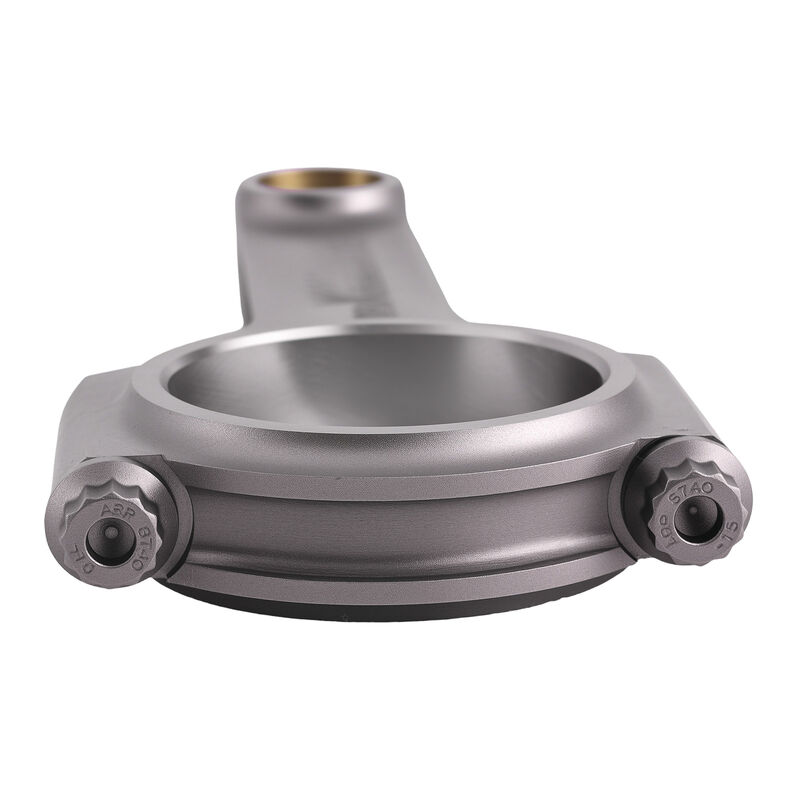

Bolts: Including Genuine ARP 8740 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: 7/16"

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

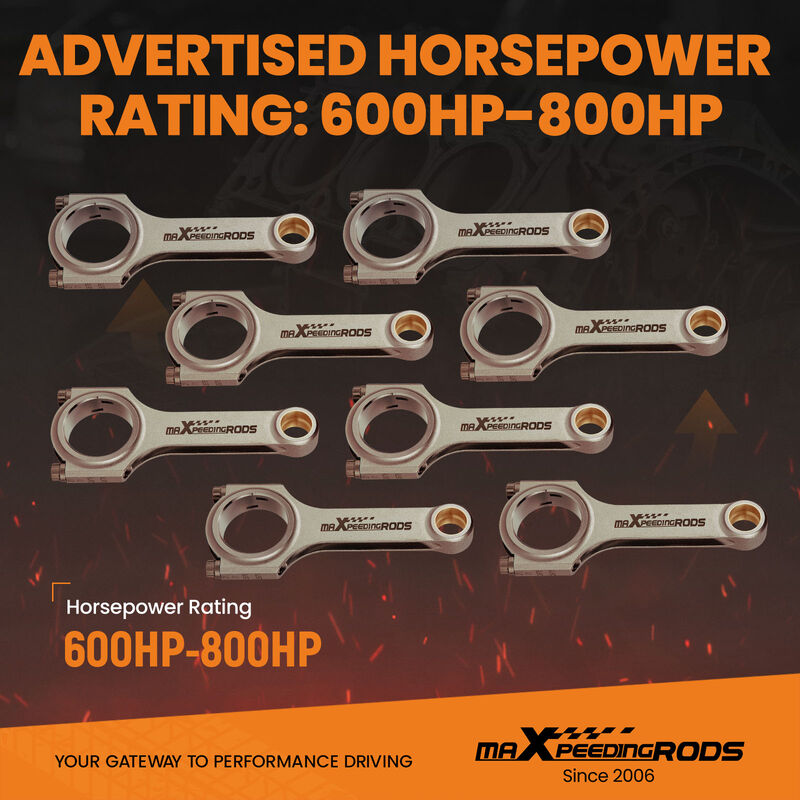

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 9000rpm



Dimensions

Center to center length: 157mm

Big end diameter: 59.97mm

Small end diameter: 30mm

Big end width: XX

Small end width: XX



Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

- Designed and processed by CNC machine.

- All big and small ends are finished with SUNNEN honing machine

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

- 100% X-rayed, sonic tested and magnafluxed

- Multi-stage heat treated

- Shot peened to relieve stress

- Come with the bronzed bushing suitable for the floating piston pin



Package

6 x Connecting Rods



Note

These connecting rods are for TD42 Turbo diesel. Please confirm the dimensions before buying. Early model conrods are also available. Please contact us for details.

Professional installation is highly recommended (No Instruction Included)

Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-NIS-157-30
Brand MAX PEEDING RODS
Shipping Weight 4.0000kg
Shipping Width 0.210m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006300000m3
