Fitment

Fit For Mercedes Benz M270 DE16 1.6T engine
Fitment Details:
Engine: M270 DE16 LA R
75 kW:
Fit For Mercedes-Benz W176 A160 2015–2018
Fit For Mercedes-Benz W246 B160 2015–on
90 kW:
Fit For Mercedes-Benz W246 B180 2011–on
Fit For Mercedes-Benz W176 A180 2012–2018
Fit For Mercedes-Benz C117 CLA180 2013–on
Fit For Mercedes-Benz X156 GLA180 2015–on
Engine: M270 DE16 LA
Fit For Mercedes-Benz W246 B200 2011–present
Fit For Mercedes-Benz W176 A200 2012–2018
Fit For Mercedes-Benz C117 CLA200 2013–present
Fit For Mercedes-Benz X156 GLA200 2014–present

Specification

TüV Certification Con Rods
Power: 800+hp per set

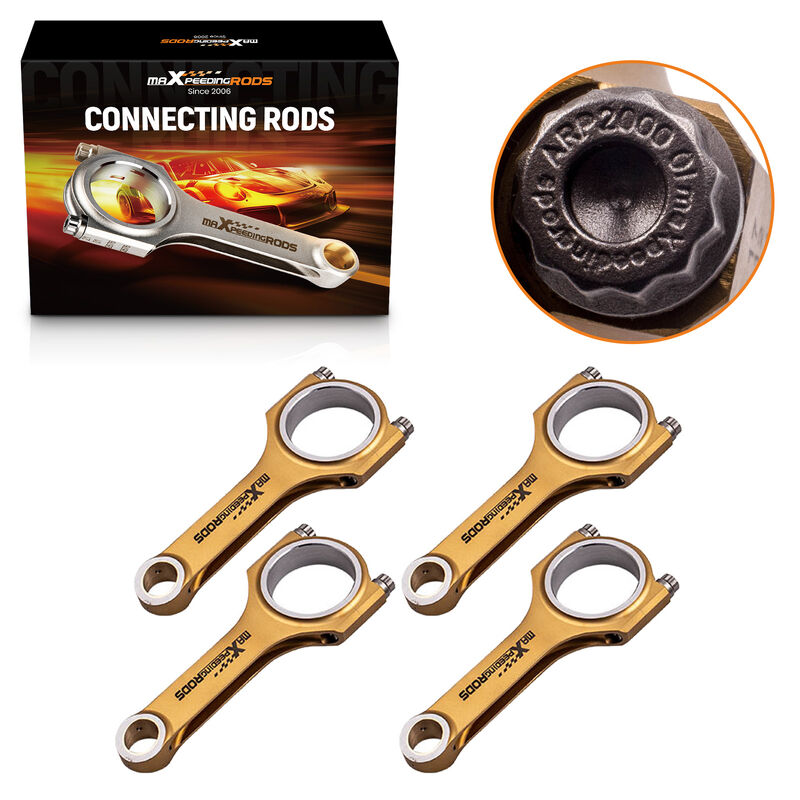

Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts (Note Extra cost for upgrading to ARP L19 bolts)

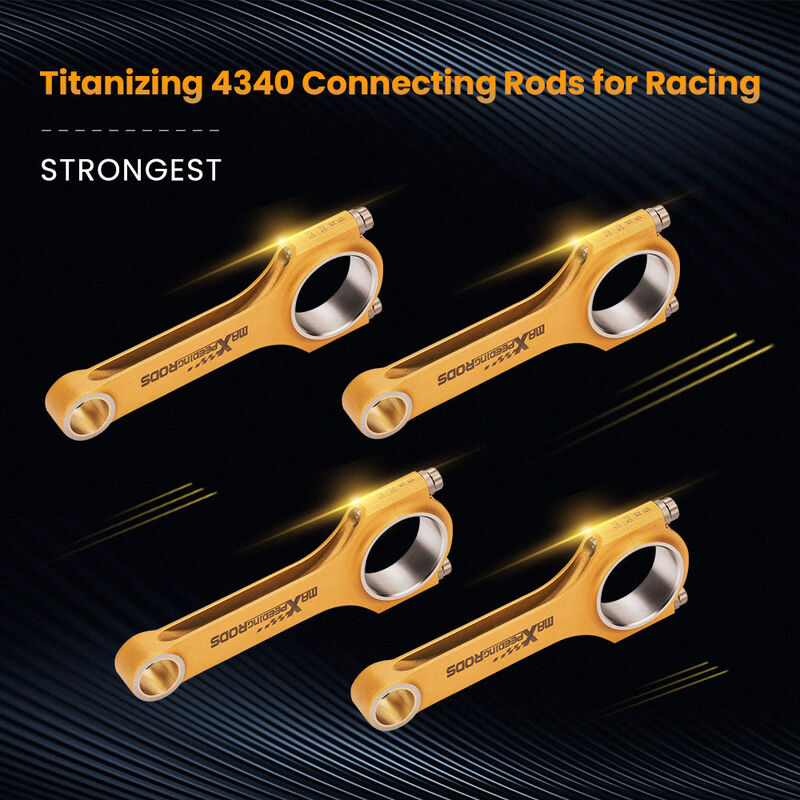

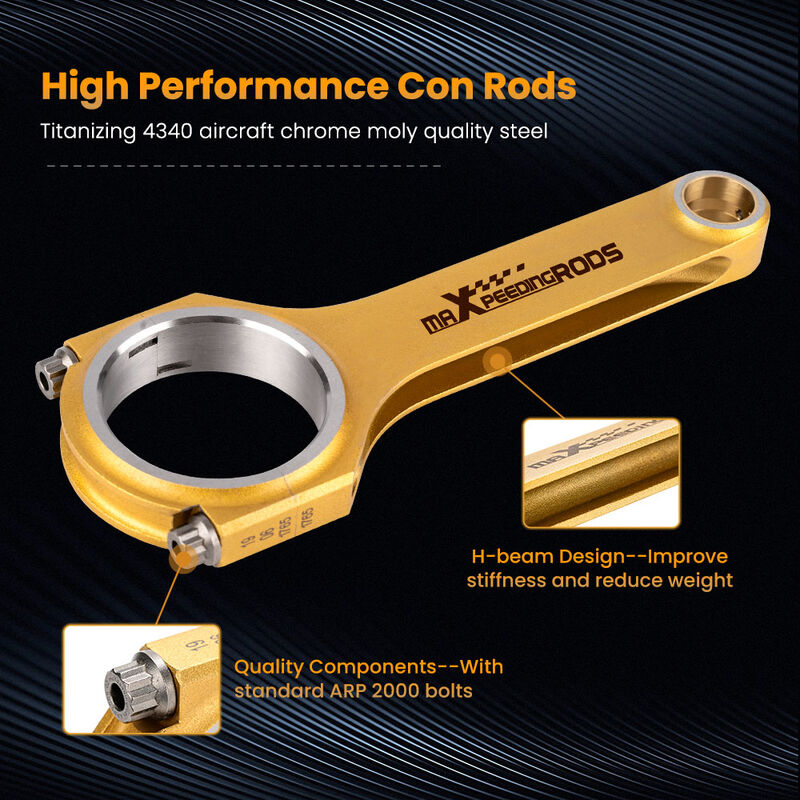

Material: Titanizing 4340 EN24 aircraft chrome moly quality steel for racing

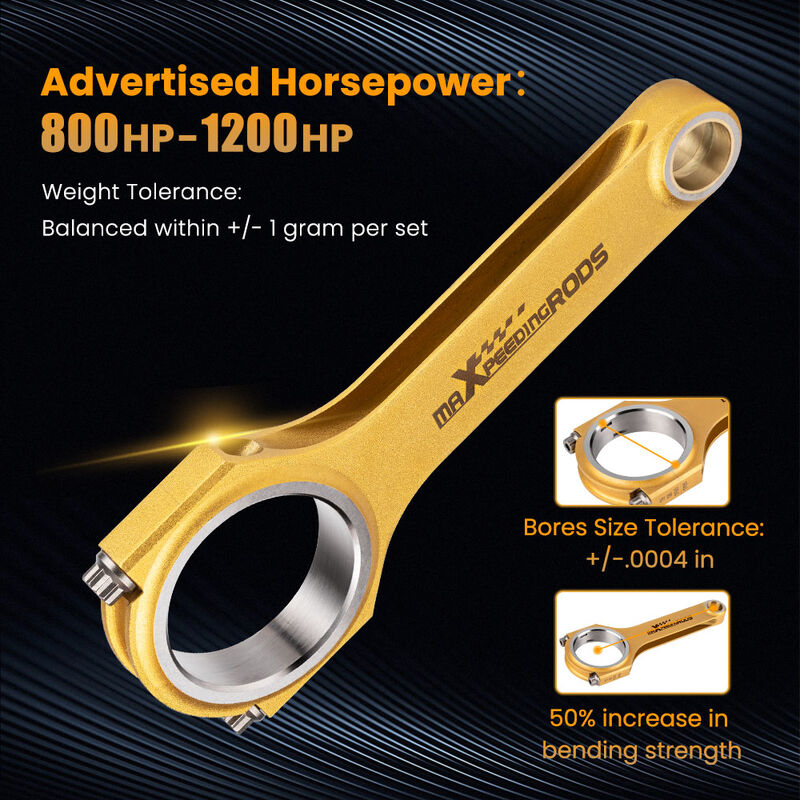

Weight Tolerance: Balanced to +/- 1 gram in set

Dimensions

Center to center length: 152.2mm
Big end diameter: 45mm
Small end diameter: 20mm
Big end width: 20mm
Small end width: 20mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.

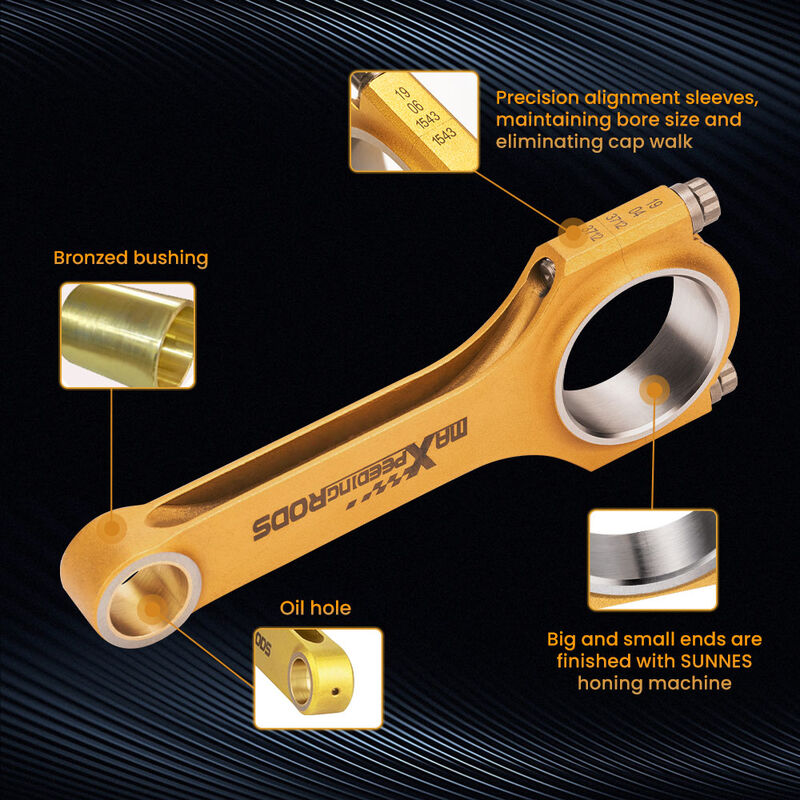

- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

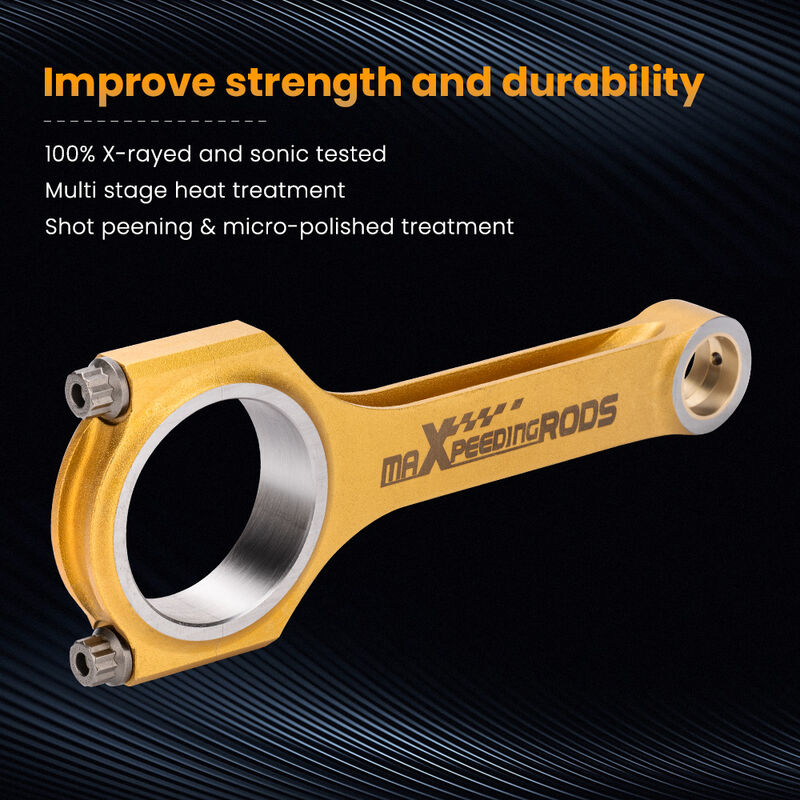

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

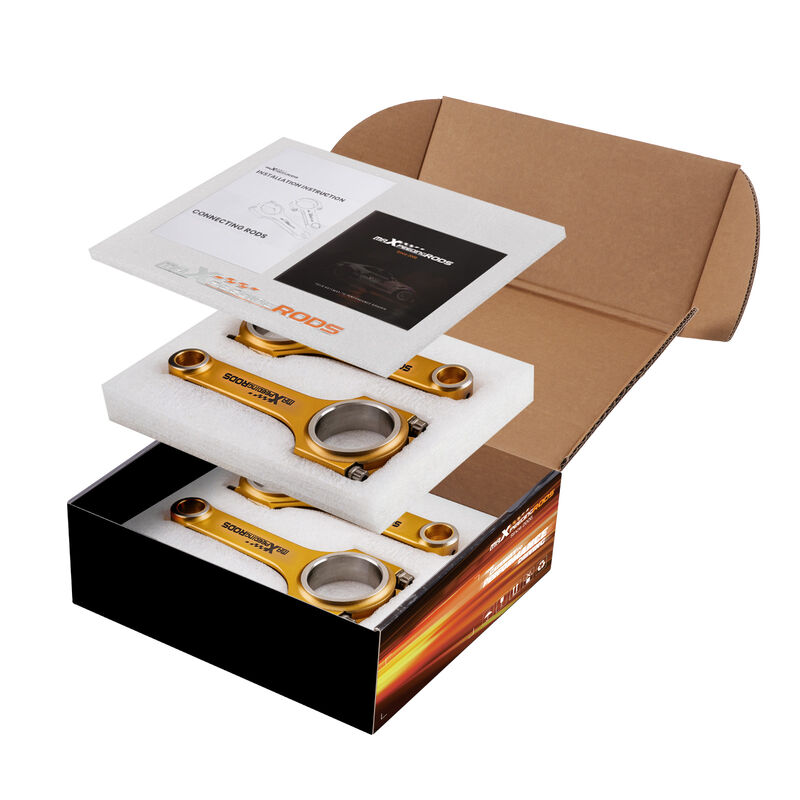

Package

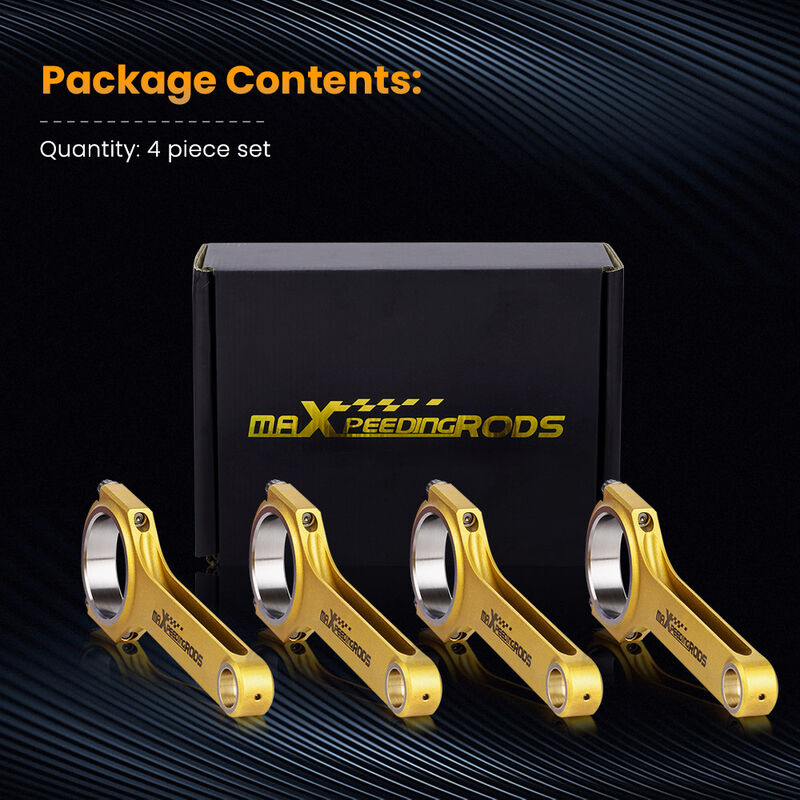

4 x Connecting Rods

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
