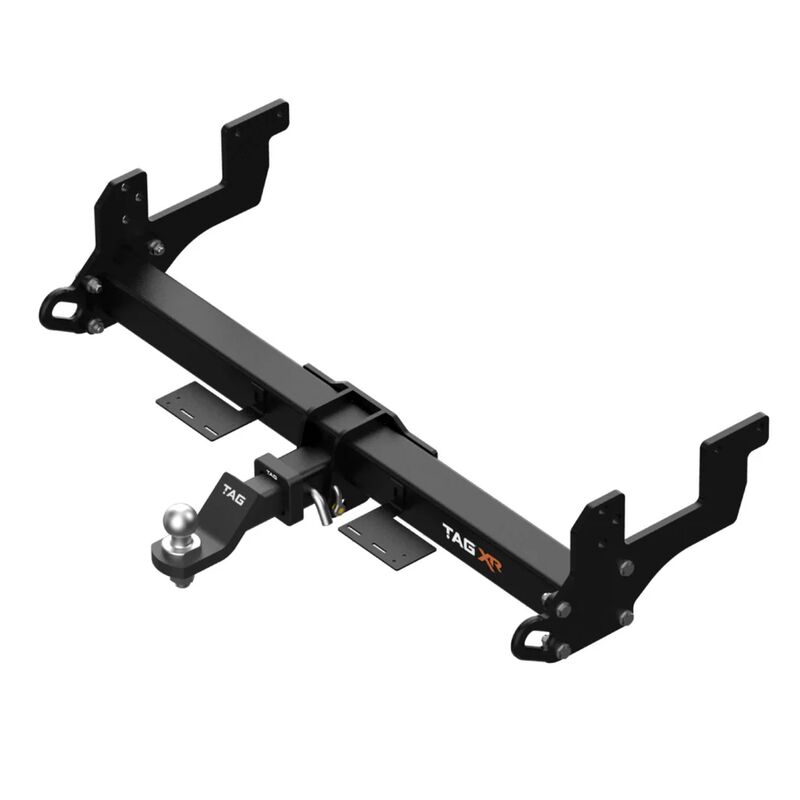

Feature

Extreme Duty Reinforced Crossbar

Two WLL 4000kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Bevelled Edges To Suit Soft-Shackles.

Flush Chassis-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Textured Powder Coated Finish

Dual Top-Mounted Trailer & Anderson Plug Mounts

Class 4 Towbar - 50mm Square Hitch Receiver

Includes Zinc Tow Ball & Extreme Duty Drop Hitch Rated At 3500kg Towing Capacity / 350kg Ball Weight, Pin & Clip And D-Shackles

Disclaimer: This Is An Aftermarket Product Manufactured By TAG Manufacturing Pty Ltd. It Is Not a Toyota Genuine Part And Is Not Endorsed, Approved, Or Manufactured By Toyota Motor Corporation Or Toyota Motor Corporation Australia Limited. Toyota Is a Registered Trademark Of Toyota Motor Corporation. Due To The Safety-Critical Nature Of Towbars And Vehicle Manufacturing Variations, Professional Installation By a Qualified Fitter Is Strongly Recommended.

Specification

Diagnostic Coding: Not Required

Fog Cut Off: Not Applicable

Reverse Sensor Cut Off: Not Applicable

Wiring Option: Direct Fit Wiring Harness

Fitting Time [min.]: 30 (UNT272)

Fitting Time [min.]: 90 (TXR862)

Style: 7 Pin Flat

Type: Plugs & Sockets

Ball Weight [kg]: 350

Towbar Class: Heavy Duty (4x4 Recovery)

Towbar Capacity [kg]: 3500

Recovery Load-tested: 4000kg WLL

Recovery Points: 2

Hitch Type: 50mm Square Hitch Receiver

Tow Ball Mount: L4045TXR

Coating: Textured Powder Coated

Bumper Removed During Fitment: Yes

Bumper Cut Out Required: No

Exposure: Partially Concealed

Fitment

Fit For Toyota Landcruiser GDJL78 Troop Carrier 1GDFTV 2.8L Diesel GXL+ Workmate Automatic 4WD 09/2023-On

Fit For Toyota Landcruiser VDJ78R VDJ78 Troop Carrier 1VDFTV 4.5L Diesel GXL Workmate Manual 4WD 09/2022-On

Fit For Toyota Landcruiser 78 Series Troop Carrier 1VD-FTV 4.5L Diesel VDJ78R With DPF 4WD 09/2016-On

Fit For Toyota Landcruiser VDJ78R Troop Carrier 1VD-FTV 4.5L Diesel GXL Workmate Manual 4WD 03/2007-On

Fit For Toyota Landcruiser 78 Series Troop Carrier 1VD-FTV 4.5L Diesel VDJ78R Manual 4WD 03/2007-On

Fit For Toyota Landcruiser 78 Series Troop Carrier 1HD-FTE 4.2L Diesel HDJ78R Manual 4WD 11/2001-02/2007

Fit For Toyota Landcruiser 78 Series Troop Carrier 1H-Z 4.2L Diesel HZJ78R Manual 4WD 10/1999-02/2007

Fit For Toyota Landcruiser HZJ70RV HZJ73 HZJ75RV HZJ78R Troop Carrier 1H-Z 4.2L Diesel D 4WD 01/1990-02/2007

Fit For Toyota Landcruiser 78 Series Troop Carrier 1H-Z 4.2L Diesel HZJ78R Manual 4WD 10/1990-02/2007

Package

Extreme Recovery Towbar

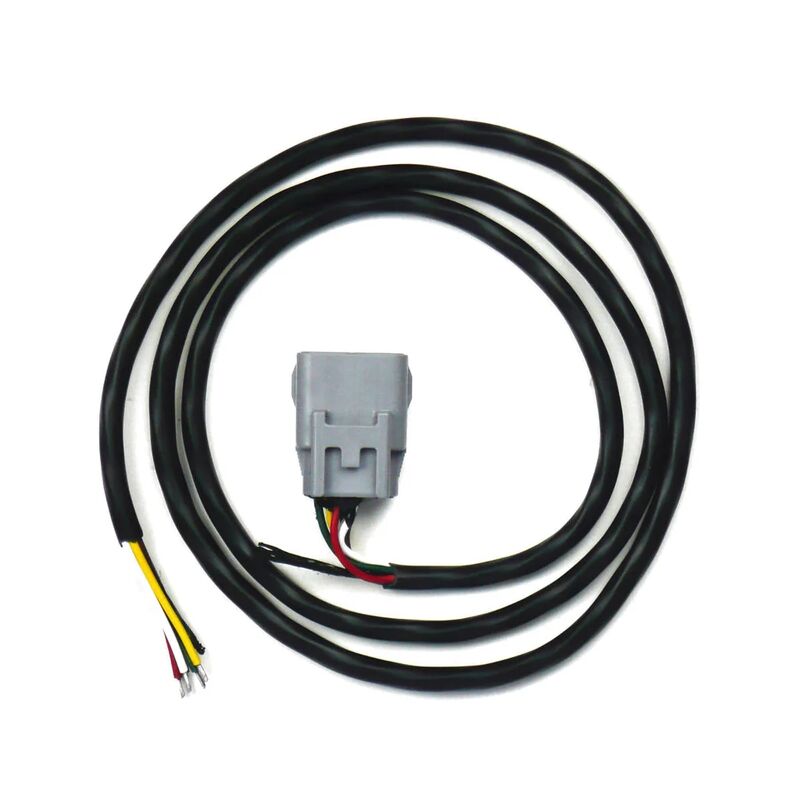

Direct Fit Wiring Harness

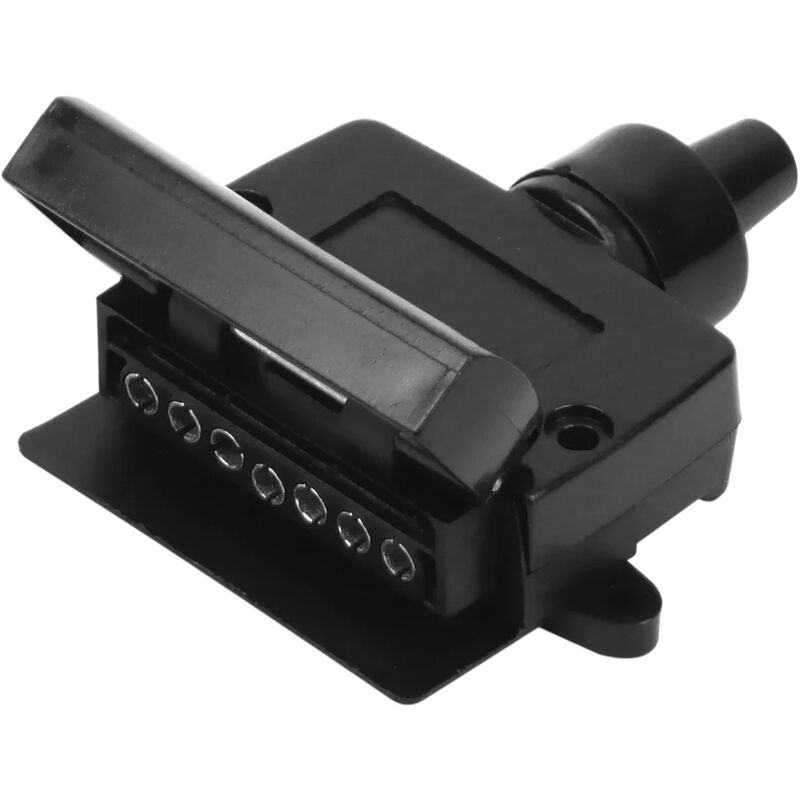

7 Pin Flat Socket (Vehicles Side)
