Feature

Extreme Duty Reinforced Crossbar

Two WLL 4000kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Bevelled Edges To Suit Soft-Shackles.

Flush Chassis-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Textured Powder Coated Finish

Dual Top-Mounted Trailer & Anderson Plug Mounts

Class 4 Towbar - 50mm Square Hitch Receiver

Includes Zinc Tow Ball & Extreme Duty Drop Hitch Rated At 3500kg Towing Capacity / 350kg Ball Weight, Pin & Clip And D-Shackles

Spacers Included With Towbar To Suit 2024 Model

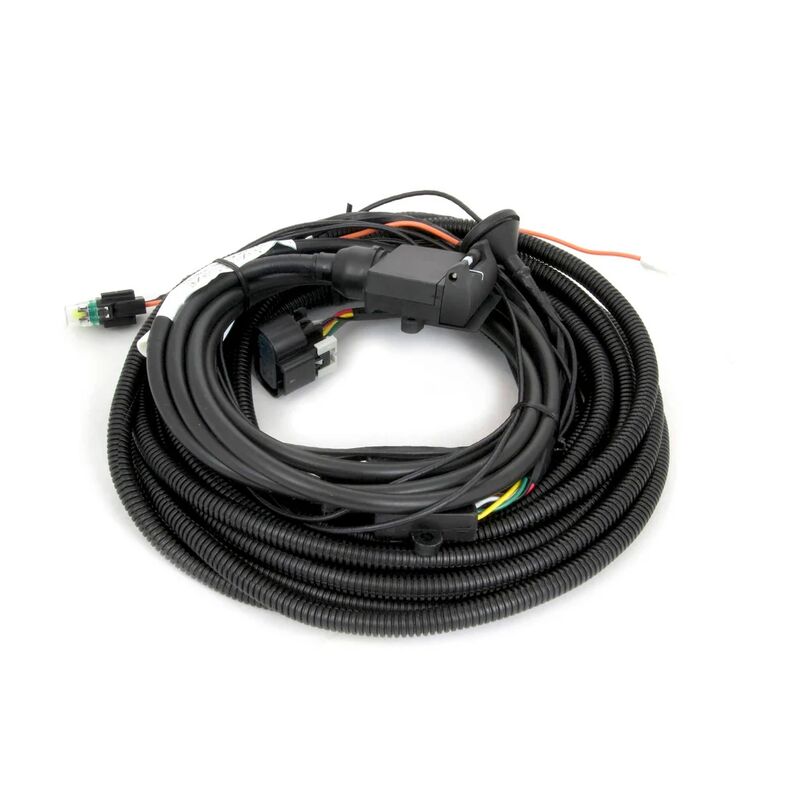

Wiring Harness:

The Plug-n-Play Design Is Bench Tested And Rated to ADR Standards, Providing a Safe And Seamless Integration Without Adversely Affecting Modern Vehicle Safety Features And Electrical Systems.

No Special Tools Or Soldering Required.

Compatible With Trailer Stability Programming (TSP), Lane Collision Avoidance Systems, Park Distance Controls (PDC).

Does Not Interfere With Brake Lights, Turning Signals And Live Wire Connection.

Please Note: A Towbar Is a Safety Critical Item And Not Always a Straightforward Fitment Due To Vehicle Manufacturing Variation. We Strongly Recommend You Get Your Towbar And Wiring Harness Installed By a Professional Towbar Or Vehicle Accessory Fitting Workshop.

Specification

Diagnostic Coding: No

Fitting Time [min.]: 45 (UNT354)

Fitting Time [min.]: 60 (TXR868)

LED Support: yes

Includes Trailer Plug: Yes

Reed Switch: Normally Open Circuit

Wiring Type: Direct Fit

Reverse Sensor Cut Off: Automatic

Wiring Option: Direct Fit ECU

Style: 7 Pin Flat

Type: Plugs & Sockets

Towbar Class: Heavy Duty (4x4 Recovery)

Towbar Capacity [kg]: 3500

Recovery Load-tested: 4000kg WLL

Recovery Points: 2

Hitch Type: 50mm Square Hitch Receiver

Tow Ball Mount: L4045TXR

Coating: Textured Powder Coated

Bumper Removed During Fitment: Yes

Bumper Cut Out Required: No

Exposure: Partially Concealed

Ball Weight [kg]: 350

Fitment

Fit For LDV T60 SK8C Ute SC20M218Q5 2.0L Diesel DTT AWD RWD 07/2017-03/2024

Fit For LDV T60 SK8C Ute SC20M163Q5 2.0L Diesel AWD RWD 07/2017-03/2024

Fit For LDV T60 Ute D20 2.0L Diesel Trailrider 2 Automatic And Manual 4WD 07/2017-03/2024

Fit For LDV T60 Ute SC28R150Q5 2.8L Diesel Luxe Pro Trailrider Automatic And Manual 4WD 07/2017-03/2024

Fit For LDV T60 SK8C Ute SC28R150Q5 2.8L Diesel RWD AWD 07/2017-03/2024

Package

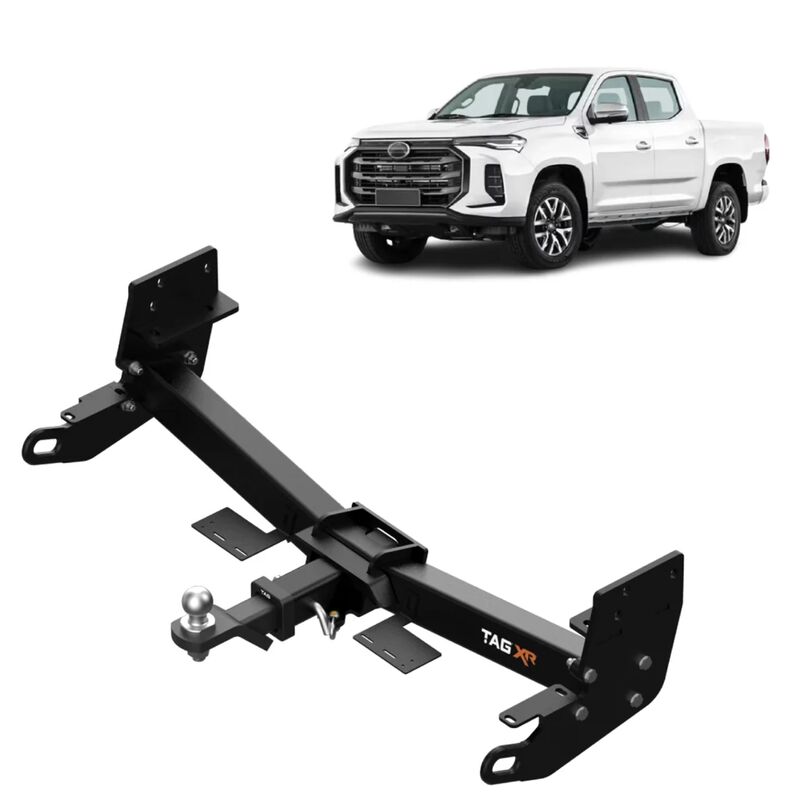

TAG 4x4 Recovery Towbar

TAG Direct Fit Wiring Harness

TAG 7 Pin Flat Socket - Vehicle Side
