Feature

89mm x 89mm Extreme Duty Reinforced Crossbar.

Two WLL 4500kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Beveled Edges To Suit Soft-Shackles.

Flush Chassis-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Highly Durable, Textured Extreme Duty Powder Coated Finish.

Dual Top-Mounted Trailer & Anderson Plug Mounts.

Class 4 Towbar - 50mm Square Hitch Receiver.

Includes Zinc Tow Ball & Extreme Duty Drop Hitch Rated At 3500kg Towing Capacity / 350kg Ball Weight, Pin & Clip And D-Shackles.

Direct Fit Wiring:

TAG Direct-Fit Towbar Wiring Harnesses Are a Safe And Easy Solution To Power Your Trailer Or Caravan Lights While Not Harming Your Vehicle's Electronics.

The Plug-n-Play Design Is Bench Tested And Rated To ADR Standards, Providing a Safe And Seamless Integration Without Adversely Affecting Modern Vehicle Safety Features And Electrical Systems.

No Special Tools Or Soldering Required.

Compatible With Trailer Stability Programming (TSP), Lane Collision Avoidance Systems, Park Distance Controls (PDC).

Does Not Interfere With Brake Lights, Turning Signals And Live Wire Connection.

Please Note: A Towbar Is a Safety Critical Item And Not Always a Straightforward Fitment Due To Vehicle Manufacturing Variation. We Strongly Recommend You Get Your Towbar And Wiring Harness Installed By a Professional Towbar Or Vehicle Accessory Fitting Workshop.

Specification

Fitting Time [min.]: 45 (UNT354)

Fitting Time [min.]: 60 (TXR870)

LED Support: yes

Includes Trailer Plug: Yes

Reed Switch: Normally Open Circuit

Wiring Type: Direct Fit

Reverse Sensor Cut Off: Automatic

Wiring Option: Direct Fit ECU

Style: 7 Pin Flat

Type: Plugs & Sockets

Towbar Class: Heavy Duty (4x4 Recovery)

Towbar Capacity [kg]: 3500

Recovery Load-tested: 4500kg WLL

Recovery Points: 2

Tow Ball Mount: L4171TXR

Coating: Textured Powder Coated

Bumper Removed During Fitment: No

Bumper Cut Out Required: No

Exposure: Exposed

Hitch Type: 50mm Square Hitch Receiver

Ball Weight [kg]: 350

Fitment

Fit For LDV T60 SK8C Cab Chassis SC20M218Q5 2.0L Diesel DTT AWD RWD 07/2017 - 02/2024

Fit For LDV T60 SK8C Cab Chassis SC20M163Q5 2.0L Diesel AWD RWD 07/2017 - 02/2024

Fit For LDV T60 SK8C Cab Chassis Converted 2.0 07/2017 - 02/2024

Fit For LDV T60 SK8C Cab Chassis SC28R150Q5 2.8L Diesel AWD RWD 07/2017 - 02/2024

Package

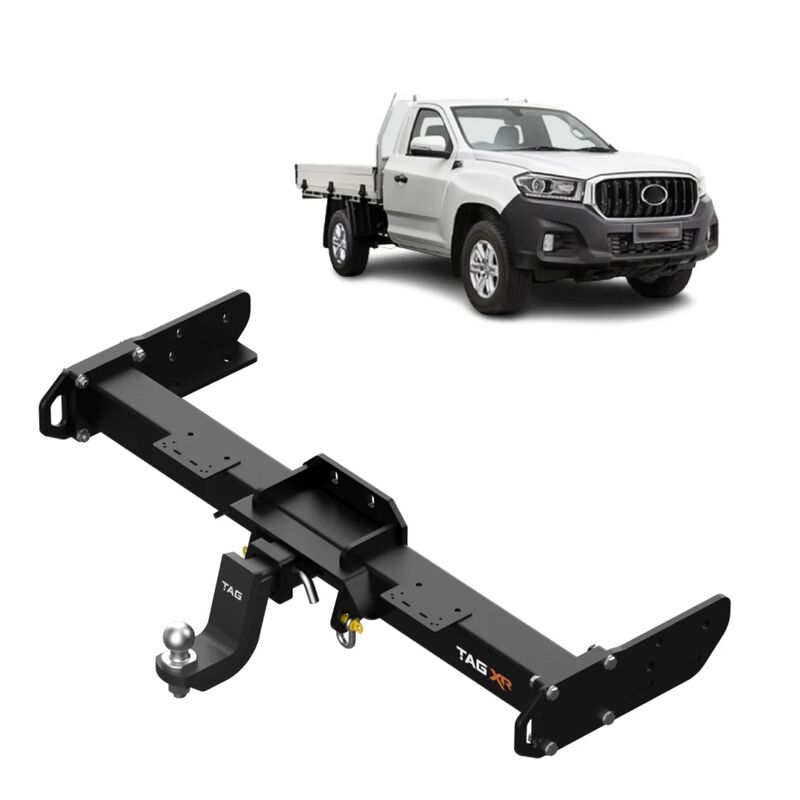

TXR870 - Extreme Recovery Towbar

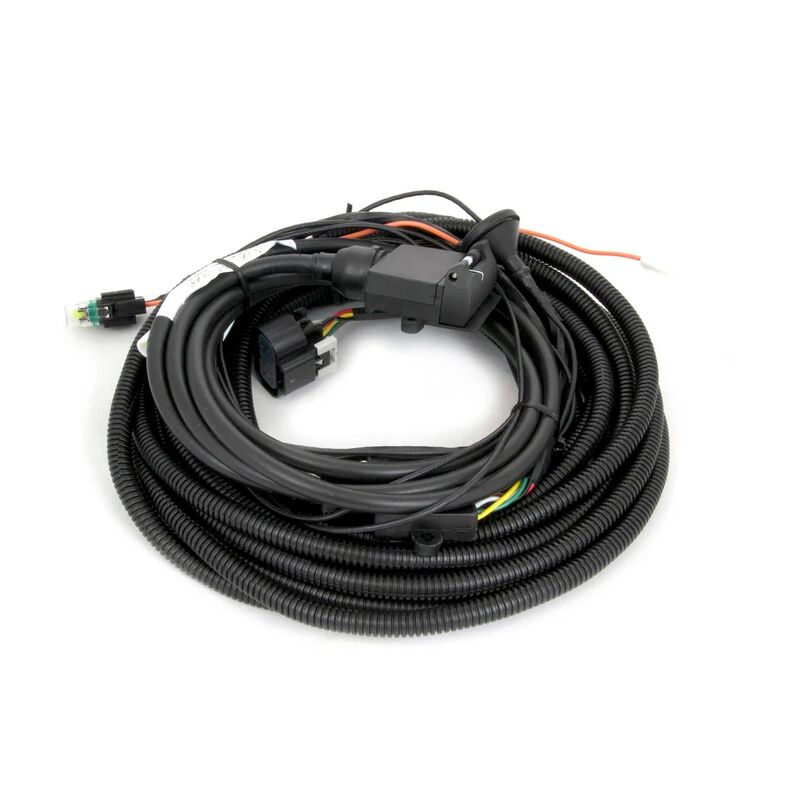

UNT354 - Direct fit wiring

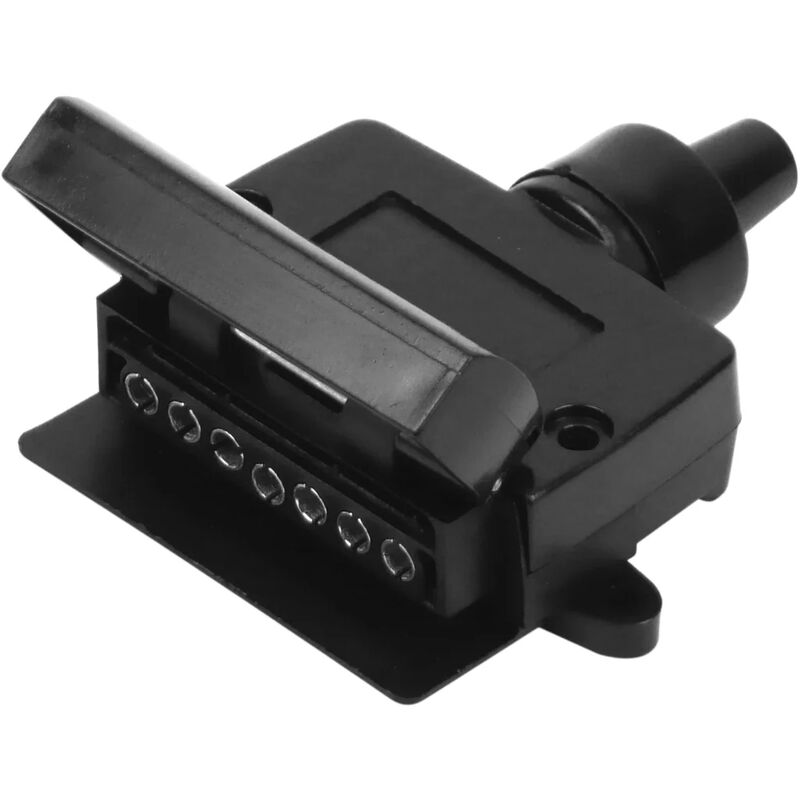

UNT032 - 7 Pin Flat Socket (Vehicle Side)
