Fitment

Fit For Nissan Fit For Datsun 510 L16

Specification

Fit For Datsun 510 L16

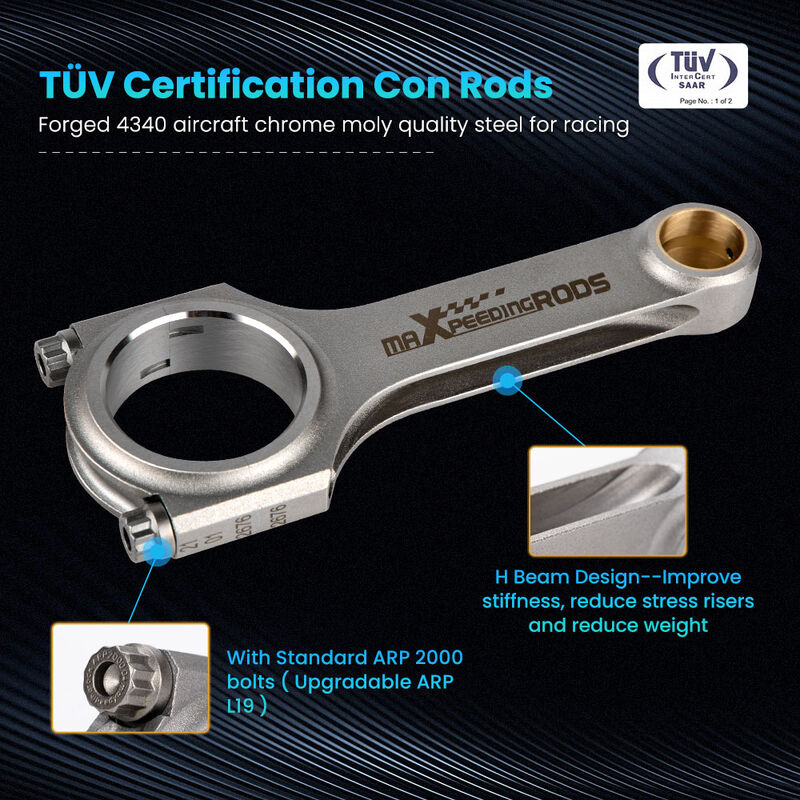

Type 4340 EN24 H-Beam Connecting Rod
Quantity 4 Pieces as showing in picture
Bolts Including Genuine ARP 2000 bolts
Bolts size ARP 2000 3/8" bolts
Tolerance Balanced to +/- 1 gram in set
Note Extra cost for upgrading to ARP L19 bolts
Accessories: You will get exactly as shown in the picture above
Condition: New

Dimensions

Center to center length: 133mm
Big end diameter: 53mm
Small end diameter: 21mm
Big end width: 26.8mm
Small end width: 24mm

Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine
-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin

Package

4 x Connecting Rods



Note

Professional installation is highly recommended (No Instruction Included)
Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-DAT-133-4
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
