Features

4,500 lb (2,040 kg) Line Pull For Strong And Reliable Performance.

Power In & Out Operation With Load-Holding And Dynamic Braking.

Sealed Permanent Magnet Motor For High Efficiency With Low Amp Draw.

Full Metal 3-Stage Planetary Gear Train For Greater Pulling Force And Durability.

Synthetic Rope For Lightweight, High-Strength, And Safer Winching.

Aluminium Hawse Fairlead To Reduce Friction And Extend Rope Life.



Specification

Rated Line Pull: 4,500 lbs (2,040 kg)

Motor: 12V DC, 1.9HP

Remote Control: Handlebar Mini-Rocker & Wireless Remote (Included)

Geartrain: 3-Stage Planetary, 176:1 ratio

Brake: Dynamic & Mechanical

Synthetic Rope: 43’ (13m) x 1/4” (6.35mm)

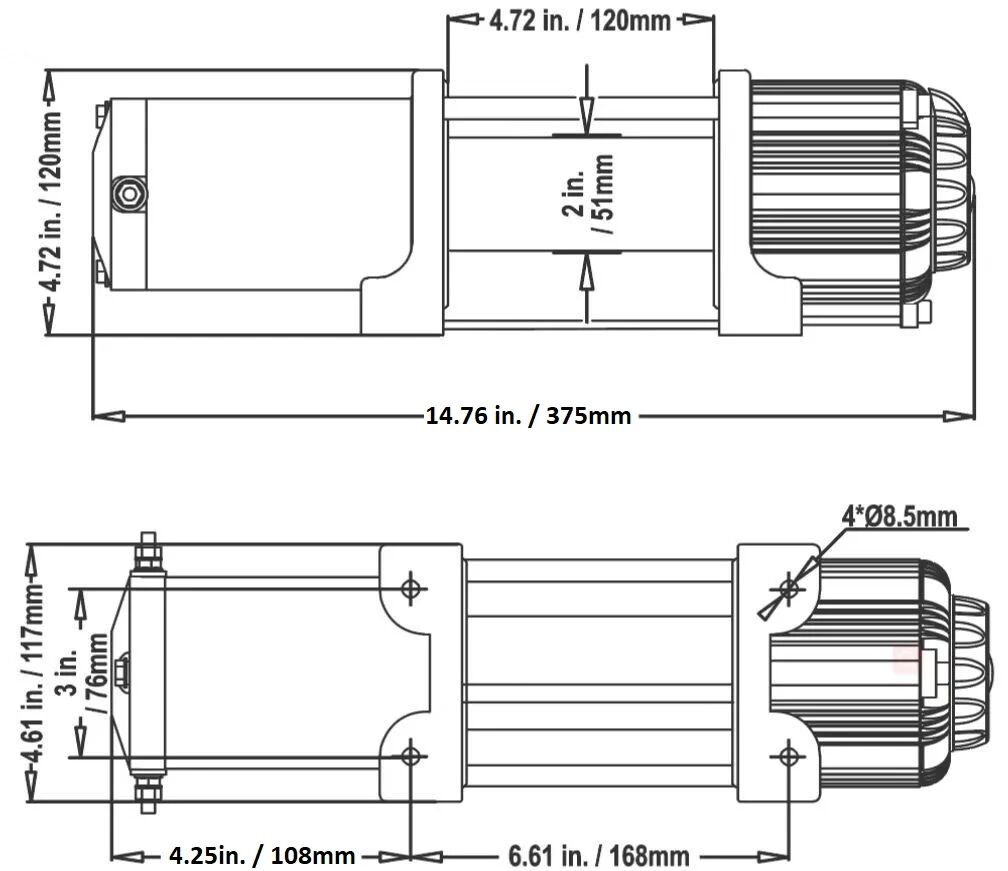

Mounting Bolt Pattern: 3.0” x 6.59” (76mm x 167mm)

Winch Dimensions: 14.9” x 4.7” x 4.5” (379mm x 120mm x 115mm)

Shipping Weight: 12.2 kg



Package

1 x Winch

SKU CBN-CW-45
Brand CARBON OFFROAD
Shipping Weight 13.0000kg
Shipping Width 0.170m
Shipping Height 0.230m
Shipping Length 0.530m
Shipping Cubic 0.020723000m3
