Feature

The Carbon Offroad Scout Pro Extreme Duty Performance Series Winches Are Built With The Frequent Use Winching User In Mind Who Is Tackling Harsh Offroad Conditions On a Regular Basis, Or The Owner Of Vehicles Which Are Extremely Heavy, Kitted Out Or Towing In Offroad Conditions.



Specification

Rated Line Pull: 9000lbs, (4082kg) Single-Line

Motor: 12V DC 7 HP Series Wound Motor

Remote Control: Wired With 3.6m Lead

Wireless Remote Control: Included

Geartrain: 3-Stage Planetary

Gear Ratio: 104:1

Rotating Ring Gear

Brake: Automatic Brake In The Motor Bracket

Fairlead: Carbon Offroad MEGAPRO Premium CNC Billet Type 3 Hard Anodised Multi Position Fairlead

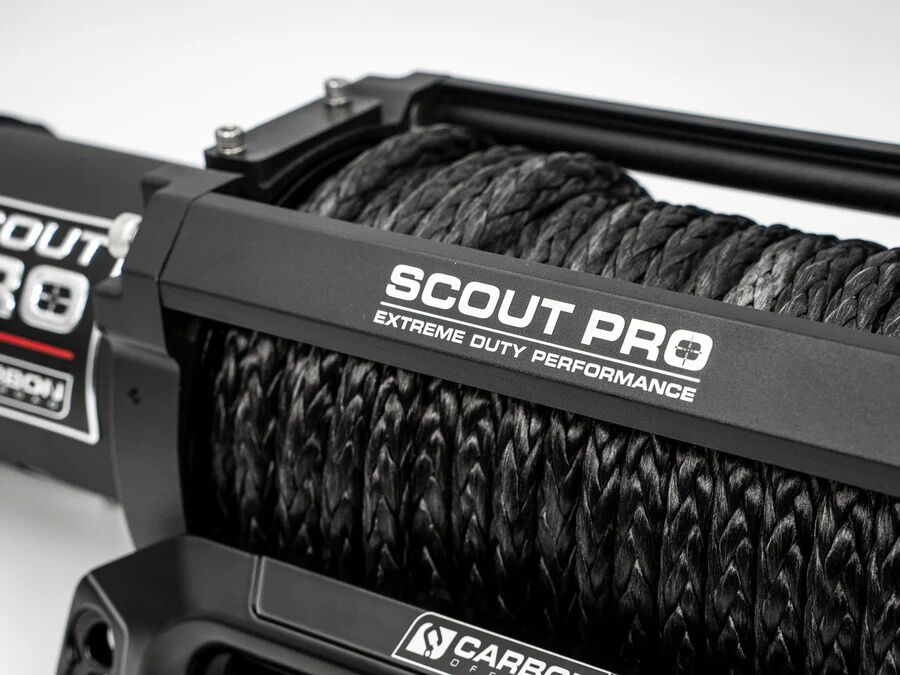

Synthetic Rope: 24m x 11mm Diameter

Drum Diameter/Length: 63.5mm x 224mm

Mounting Bolt Pattern: 254mm x 114.3mm

Recommended Battery: 650 CCA Minimum For Winching

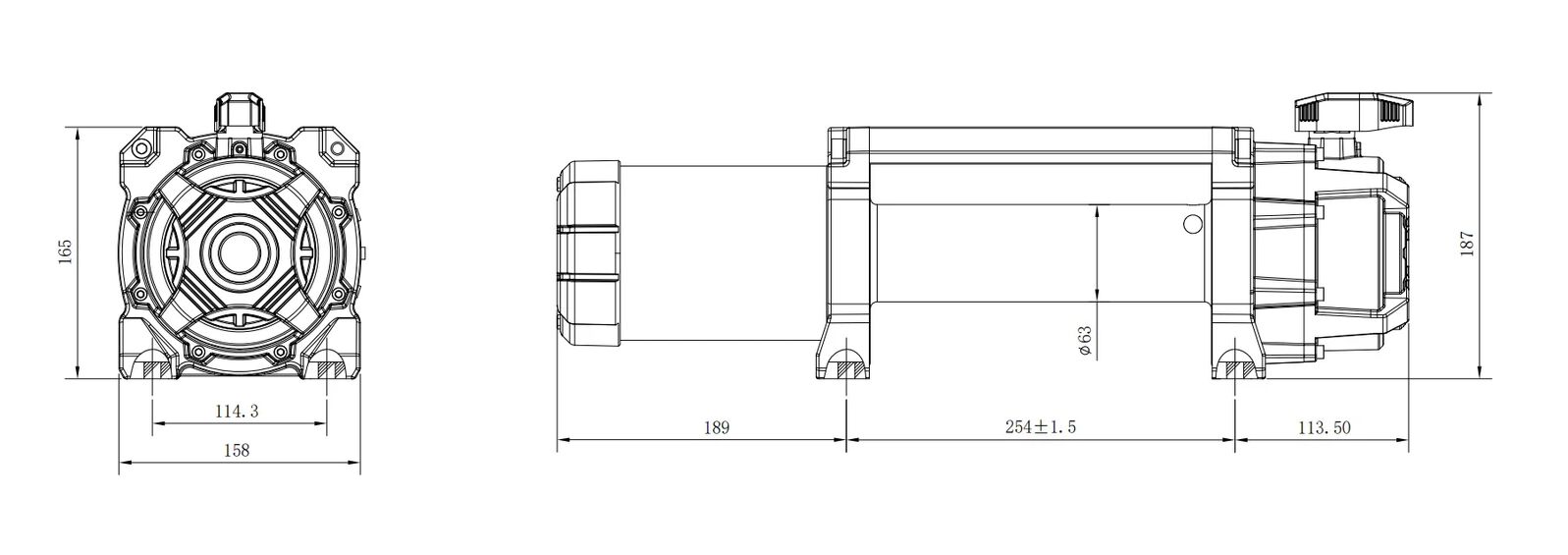

Winch Dimensions (L x W x H): 535 x 158 x 187mm

Winch Weight Including Synthetic Rope, Control Box Complete With Cables, Mounting Bolts & Fairlead: 26.7



Package

1 x Winch V3

SKU CBN-CW-XD9V3
Brand CARBON OFFROAD
Shipping Weight 27.0000kg
Shipping Width 0.200m
Shipping Height 0.220m
Shipping Length 0.580m
Shipping Cubic 0.025520000m3
