MAX PEEDING RODS Connecting Rods Fit For Datsun 240Z Fit For Nissan L24 Skyline Laurel Cedric Conrod
SKU code: MPR-CR-DAT-133-6
Fitment
Fit For Datsun 240Z L24
Fit For Nissan Skyline L24
Fit For Nissan Laurel L24
Fit For Nissan Cedric L24
Fit For Datsun 240Z—150 hp 1970–1973
Fit For Nissan Cedric/Gloria 130 1970–1971
Fit For Nissan Cedric/Gloria 230 1971–1972
Fit For Datsun 240K (C110) 1972–1977
Fit For Datsun 240K-GT (C210) 1978–1981
Fit For Nissan Laurel C230 1979–1980
Fit For Nissan Laurel C31 (export) 1980–1984
Specification
Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

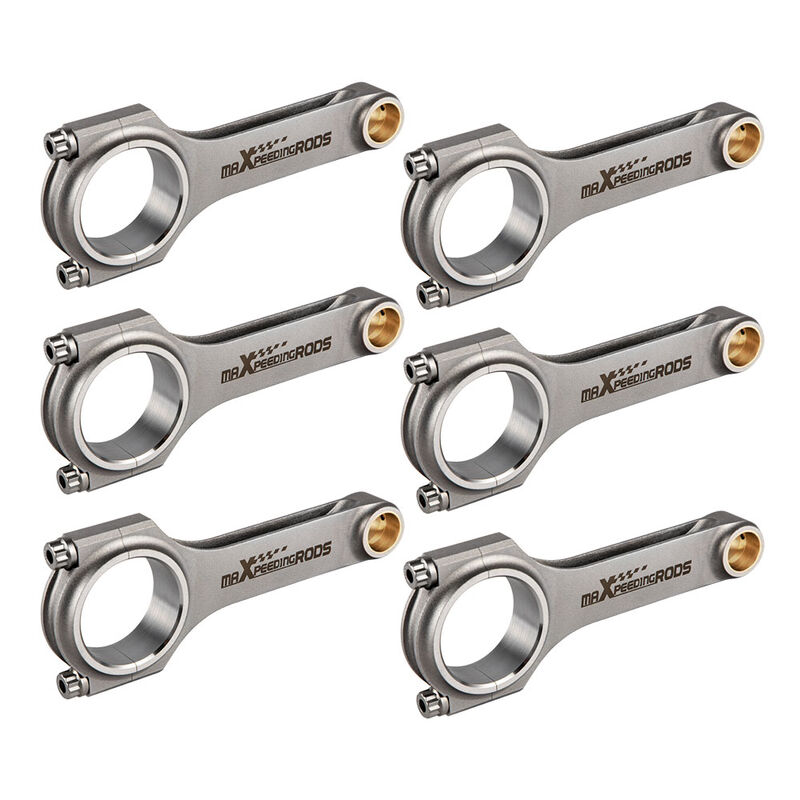

H-beam Conrods Quantity: 6 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
Dimensions
Center to center length: 133mm
Big end diameter: 53mm
Small end diameter: 21mm
Big end width: 26.8mm
Small end width: 23.9mm
Feature
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
Package

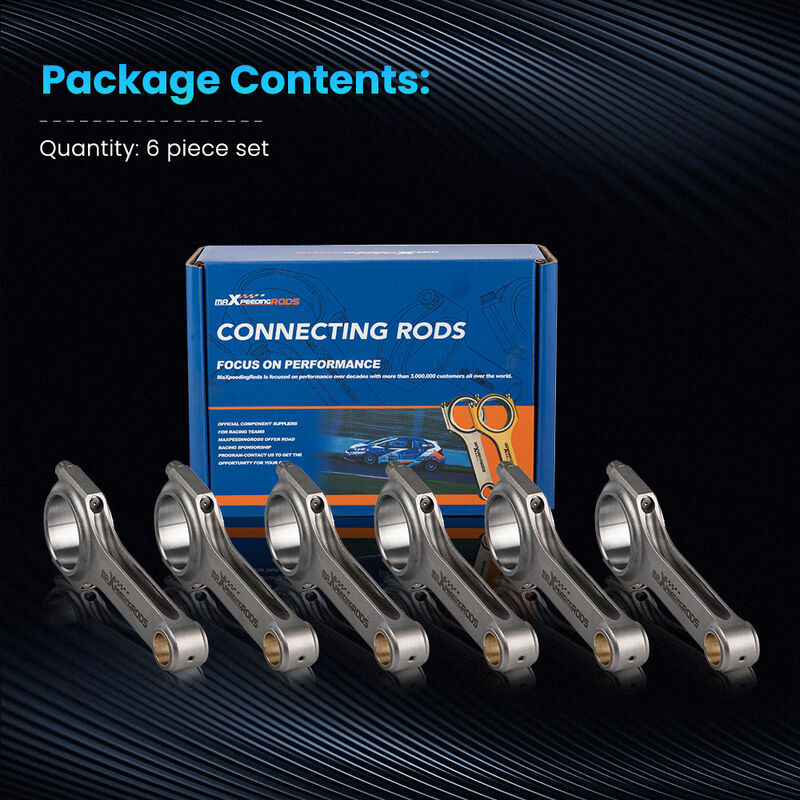

6 x Connecting Rods
Note
Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
| SKU | MPR-CR-DAT-133-6 |
| Brand | MAX PEEDING RODS |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.006000000m3 |
