Feature

89mm x 89mm Extreme Duty Reinforced Crossbar.

Two WLL 4500kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Bevelled Edges To Suit Soft-Shackles.

Flush Chassis-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Highly Durable, Textured Extreme Duty Powder Coated Finish.

Dual Top-Mounted Trailer & Anderson Plug Mounts.

Class 4 Towbar - 50mm Square Hitch Receiver.

Includes Zinc Tow Ball & Extreme Duty Drop Hitch Rated At 3500kg Towing Capacity / 350kg Ball Weight, Pin & Clip And D-Shackles.

Please Note: A Towbar Is a Safety Critical Item And Not Always a Straightforward Fitment Due To Vehicle Manufacturing Variation. We Strongly Recommend You Get Your Towbar And Wiring Harness Installed By a Professional Towbar Or Vehicle Accessory Fitting Workshop.

Specification

Fitting Time [min.]: 60 (BR-712365)

Fitting Time [min.]: 90 (TXR843)

Wiring Option: CANBUS Direct Fit Wiring

Diagnostic Coding: Optional For All Features

Reverse Sensor Cut Off: Coding required

Fog Cut Off: Automatic

Plug Connection: 7 Pin Flat Socket

Style: 7 Pin Flat

Type: Plugs & Sockets

Towbar Class: Heavy Duty (4x4 Recovery)

Towbar Capacity [kg]: 3500

Recovery Load-tested: 4500kg WLL

Recovery Points: 2

Hitch Type: 50mm Square Hitch Receiver

Tow Ball Mount: L4180TXR

Coating: Textured Powder Coated

Bumper Removed During Fitment: Yes

Bumper Cut Out Required: Yes

Exposure: Partially concealed

Ball Weight [kg]: 350

Fitment

Fit For Volkswagen Amarok NF Ute DXKB 2.0L Diesel TDI405 Core 4Motion Automatic AWD 12/2022-On

Fit For Volkswagen Amarok NF Ute DXKA 2.0L Diesel TDI500 4Motion Automatic AWD 12/2022-On

Fit For Volkswagen Amarok NF Ute DXWA 3.0L Diesel TDI600 4Motion Automatic AWD 12/2022-On

Fit For Volkswagen Amarok NF Ute DXVA 2.2L Petrol TSI452 Aventura 4Motion Automatic AWD 12/2022-On

Fit For Volkswagen Amarok Ute DXKA YN2S 2.0L Diesel AWD 09/2022-On

Fit For Volkswagen Amarok Ute DXWA BF2S 3.0L Diesel AWD 09/2022-On

Fit For Volkswagen Amarok Ute DXVA N32S 2.3L Petrol AWD 09/2022-On

Fit For Volkswagen Amarok Ute DXKB P02X 2.0L Diesel TDI AWD 09/2022-On

Fit For Ford Ranger PY Ute C42X 2.3L Petrol Turbo PHEV 4WD 06/2022-11/2024

Fit For Ford Ranger PY Ute YN2X 2.0L Diesel Bi-Turbo Euro 6 4WD 06/2022-11/2024

Fit For Ford Ranger PY T6.2 Ute P02S 2.0L Diesel XL Hi-Rider Super Cab Automatic RWD 06/2022-11/2024

Fit For Ford Ranger PY Ute YN2S 2.0L Diesel Bi-Turbo AWD RWD 06/2022-11/2024

Fit For Ford Ranger T6.2 Ute 3.0LPetrol Raptor Automatic 4WD 06/2022-11/2024

Fit For Ford Ranger T6.2 Ute 2.0L Diesel Sport Wildtrak XL XLS XLT Automatic 4WD 06/2022-11/2024

Fit For Ford Ranger PY Ute P02S 2.0L Diesel Turbo AWD RWD 06/2022-11/2024

Fit For Ford Ranger PY T6.2 Ute P02S 2.0L Diesel XL Automatic 4WD 06/2022-11/2024

Fit For Ford Ranger T6.2 Ute 2.0L Diesel XL Automatic 4WD 06/2022-11/2024

Fit For Ford Ranger T6.2 Ute 2.0L Diesel XL Hi-Rider Automatic RWD 06/2022-11/2024

Fit For Ford Ranger T6.2 Ute 2.0L Diesel XLS XLT Hi-Rider Automatic RWD 06/2022-11/2024

Fit For Ford Ranger T6.2 Ute 2.0L Diesel XLT Automatic 4WD 06/2022-11/2024

Fit For Ford Ranger PY T6.2 Ute YN2S 2.0L Diesel XLT Automatic 4WD 06/2022-11/2024

Fit For Ford Ranger T6.2 Ute 3.0L Diesel XLT Sport Wildtrak Automatic 4WD 06/2022-11/2024

Fit For Ford Ranger PY T6.2 Ute YN2S 2.0L Diesel XLT Super Cab Automatic 4WD 06/2022-11/2024

Package

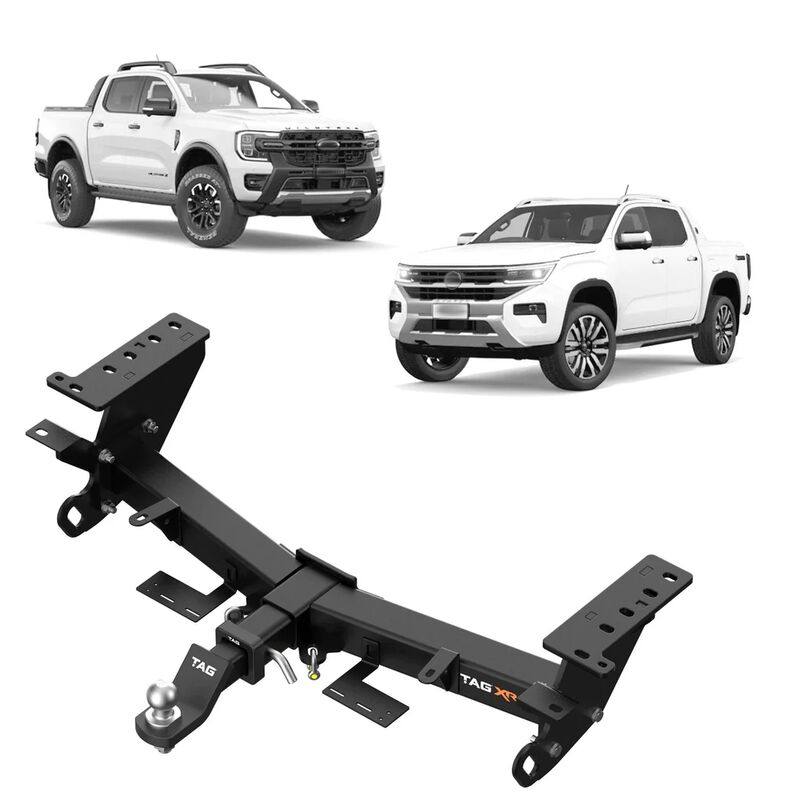

TXR843 Extreme Recovery Towbar

750150EJ CAN-Bus Wiring Harness

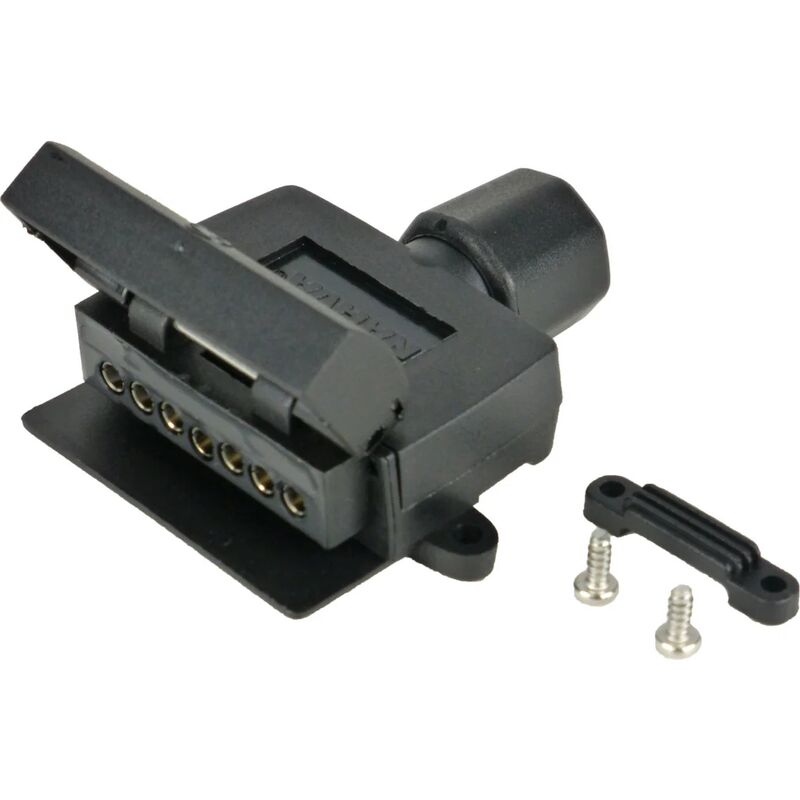

7 Pin Flat Plug
