Feature

89mm x 89mm Extreme Duty Reinforced Crossbar

Two WLL 4500kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Bevelled Edges To Suit Soft-Shackles.

Flush Chassis-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Highly Durable, Textured Extreme Duty Powder Coated Finish

Dual Top-Mounted Trailer & Anderson Plug Mounts

Class 4 Towbar - 50mm Square Hitch Receiver

Includes Zinc Tow Ball & Extreme Duty Drop Hitch Rated At 3500kg Towing Capacity / 350kg Ball Weight, Pin & Clip And D-Shackles

Please Note: A Towbar Is a Safety Critical Item And Not Always a Straightforward Fitment Due To Vehicle Manufacturing Variation. We Strongly Recommend You Get Your Towbar And Wiring Harness Installed By a Professional Towbar Or Vehicle Accessory Fitting Workshop.

Specification

Style: 7 Pin Flat

Type: Plugs & Sockets

Wiring Option: Direct Fit ECU

Fitting Time [min.]: 45 (UNT353)

Fitting Time [min.]: 120 (TXR799)

Towbar Class: Heavy Duty (4x4 Recovery)

Towbar Capacity [kg]: 3500

Ball Weight [kg]: 350

Recovery Load-tested: 4500kg WLL

Recovery Points: 2

Coating: Textured Powder Coated

Hitch Type: 50mm Square Hitch Receiver

Bumper Removed During Fitment: No

Bumper Cut Out Required: No

Exposure: Exposed

Fitment

Fit For Nissan Patrol Wagon Y62 VK56VD 5.6L Petrol AWD 12/2012-On

Package

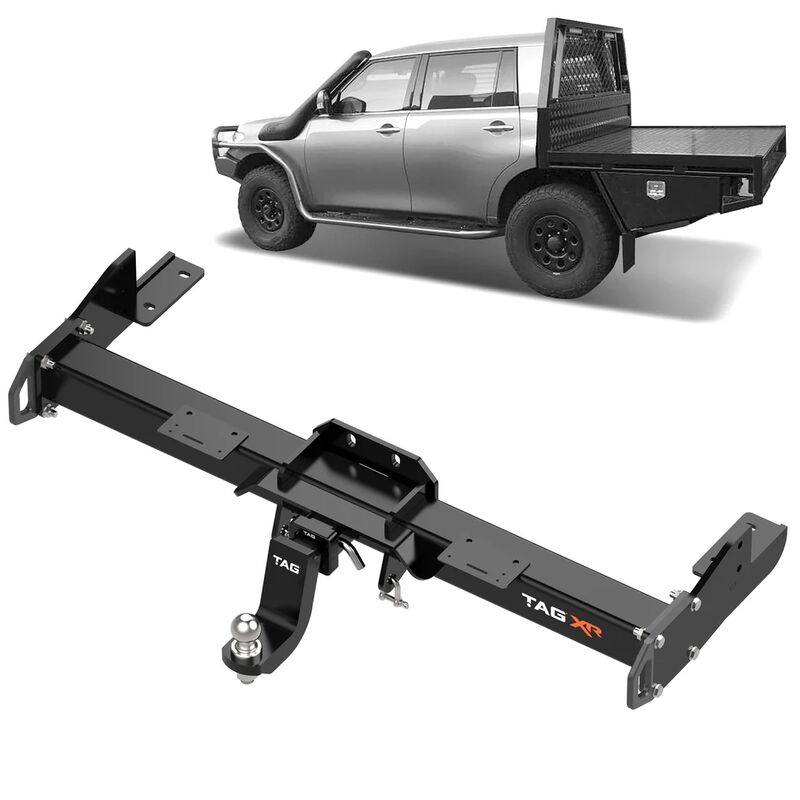

TAG 4x4 Recovery Towbar (Ute Chopped Y62 Only)

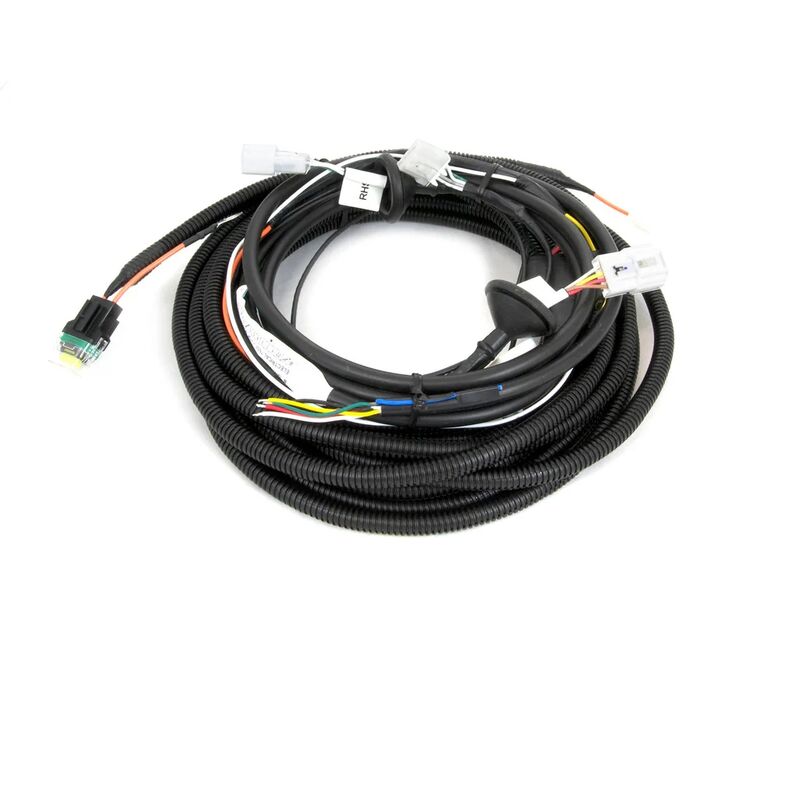

TAG Direct Fit Wiring Harness

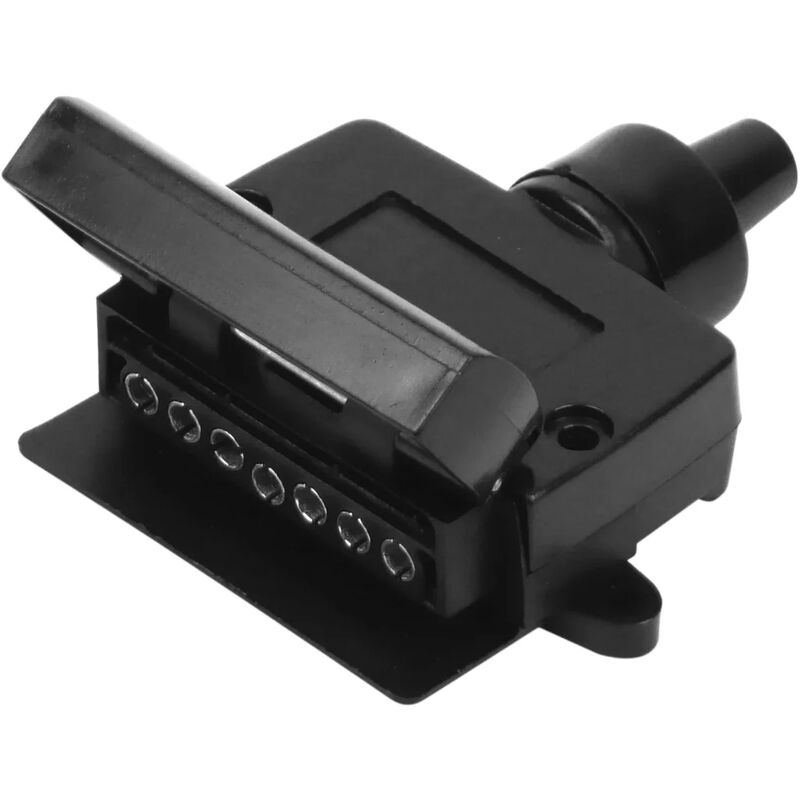

TAG 7 Pin Flat Socket - Vehicle Side
