Feature

75mm x 75mm Extreme Duty Reinforced Crossbar.

Two WLL 4500kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Bevelled Edges To Suit Soft-Shackles.

Flush Chassis-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Highly Durable, Textured Extreme Duty Powder Coated Finish.

Trailer & Anderson Plug Mounts.

Class 4 Towbar - 50mm Square Hitch Receiver.

Includes Zinc Tow Ball & Extreme Duty Hitch Rated At 3500kg Towing Capacity / 350kg Ball Weight, Pin & Clip And D-Shackles.

Please Note: A Towbar Is a Safety Critical Item And Not Always a Straightforward Fitment Due To Vehicle Manufacturing Variation. We Strongly Recommend You Get Your Towbar And Wiring Harness Installed By a Professional Towbar Or Vehicle Accessory Fitting Workshop.

Specification

Diagnostic Coding: Not Required

Reverse Sensor Cut Off: Automatic

Wiring Option: Direct Fit ECU

Fitting Time [min.]: 30 (UNT351)

Fitting Time [min.]: 90 (TXR822)

Ball Weight [kg]: 350

Towbar Class: Heavy Duty (4x4 Recovery)

Towbar Capacity [kg]: 3500

Recovery Load-tested: 4500kg WLL

Recovery Points: 2

Coating: Textured Powder Coated

Bumper Removed During Fitment: No

Bumper Cut Out Required: No

Exposure: Exposed

Hitch Type: 50mm Square Hitch Receiver

Fitment

Fit For Isuzu D-Max TFR TFS Cab Chassis RZ4E-TC 1.9L Diesel RWD 10/2021-On

Fit For Isuzu D-Max Cab Chassis 4JJ3-TCX 3.0L Diesel SX Automatic or Manual 4WD RWD 07/2020-On

Fit For Isuzu D-Max Single Cab 4JJ3-TCX 3.0L Diesel SX Automatic or Manual 4WD RWD 07/2020-On

Fit For Isuzu D-Max TFS40 Ute 4JJ3-TCX 3.0L Diesel CRD Automatic or Manual 4WD 07/2020-On

Fit For Isuzu D-Max TFR40 Ute 4JJ3-TCX 3.0L Diesel LS-U SX Automatic RWD 07/2020-On

Fit For Isuzu D-Max TFS40 Ute 4JJ3-TCX 3.0L Diesel LS-U SX Spacecab Automatic or Manual 4WD 07/2020-On

Fit For Isuzu D-Max TFS TFS40 Ute 4JJ3-TCX 3.0L Diesel SX Automatic or Manual 4WD 07/2020-On

Fit For Isuzu D-Max TFR40 Ute 4JJ3-TCX 3.0L Diesel SX Automatic or Manual RWD 07/2020-On

Fit For Isuzu D-Max TFR40 Ute 4JJ3-TCX 3.0L Diesel SX Spacecab Automatic RWD 07/2020-On

Fit For Isuzu D-Max TFR TFS Cab Chassis 3.0L Diesel DDI 4WD 07/2020-On

Fit For Isuzu D-Max TFR TFS Cab Chassis 4JJ3-TCX 3.0L Diesel DDI AWD RWD 07/2020-On

Fit For Isuzu D-Max TFR TFS TFR40J Cab Chassis 4JJ3-TCX 3.0L Diesel DDI RWD 07/2020-On

Fit For Mazda BT-50 TF Cab Chassis RZ4E-TC 1.9L Diesel  AWD RWD 11/2021-On

Fit For Mazda BT-50 819C Cab Chassis RZ4E-TC 2.0L Diesel XS Automatic RWD 11/2021-On

Fit For Mazda BT-50 TF Ute RZ4E-TC 1.9L Diesel 4WD 11/2021-On

Fit For Mazda BT-50 819C Ute RZ4E-TC 2.0L Diesel XS Automatic 4WD RWD 11/2021-On

Fit For Mazda BT-50 TF Ute RZ4E-TC 1.9L Diesel 4x2 RWD 01/2021-On

Fit For Mazda BT-50 B30B Cab Chassis 4JJ3-TCX 3.0L Diesel XT Automatic or Manual 4WD 08/2020-On

Fit For Mazda BT-50 B30B Cab Chassis 4JJ3-TCX 3.0L Diesel XT Automatic RWD 08/2020-On

Fit For Mazda BT-50 B30B Cab Chassis 4JJ3-TCX 3.0L Diesel XT Freestyle Automatic or Manual 4WD 08/2020-On

Fit For Mazda BT-50 B30B Cab Chassis 4JJ3-TCX 3.0L Diesel XT Freestyle Automatic RWD 08/2020-On

Fit For Mazda BT-50 B30B Ute 4JJ3-TCX 3.0L Diesel GT XT XTR Automatic or Manual 4WD 08/2020-On

Fit For Mazda BT-50 B30B Ute 4JJ3-TCX 3.0L Diesel XT XT Automatic RWD 08/2020-On

Fit For Mazda BT-50 TF Cab Chassis 4JJ3-TCX 3.0L Diesel 4WD RWD 07/2020-On

Fit For Mazda BT-50 TF TFS40JDR TFS40JPR Cab Chassis 4JJ3-TCX 3.0L Diesel AWD RWD 07/2020-On

Package

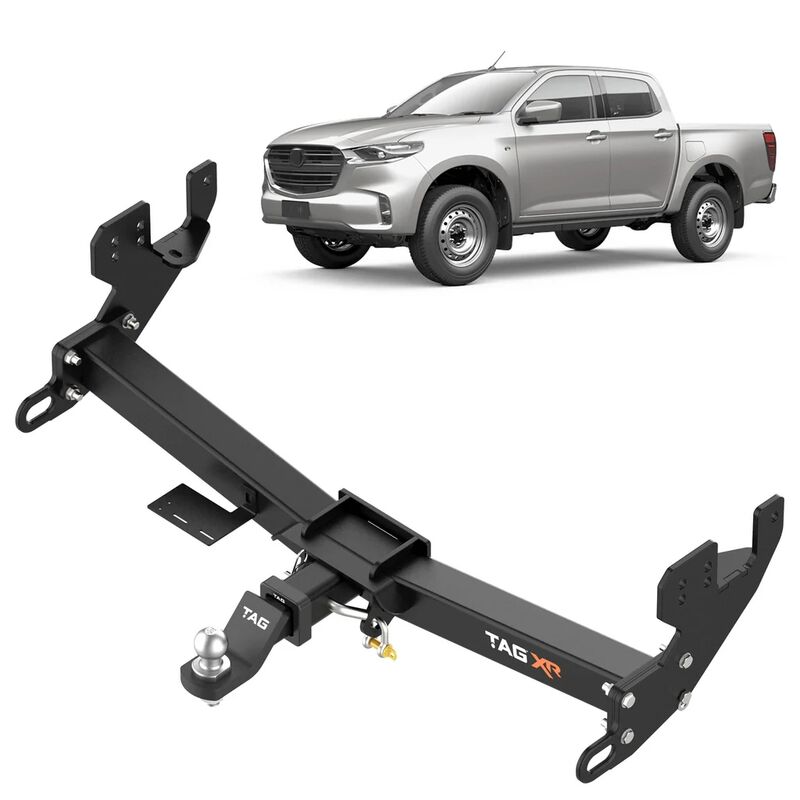

TAG 4x4 Recovery Towbar - Suits Styleside models

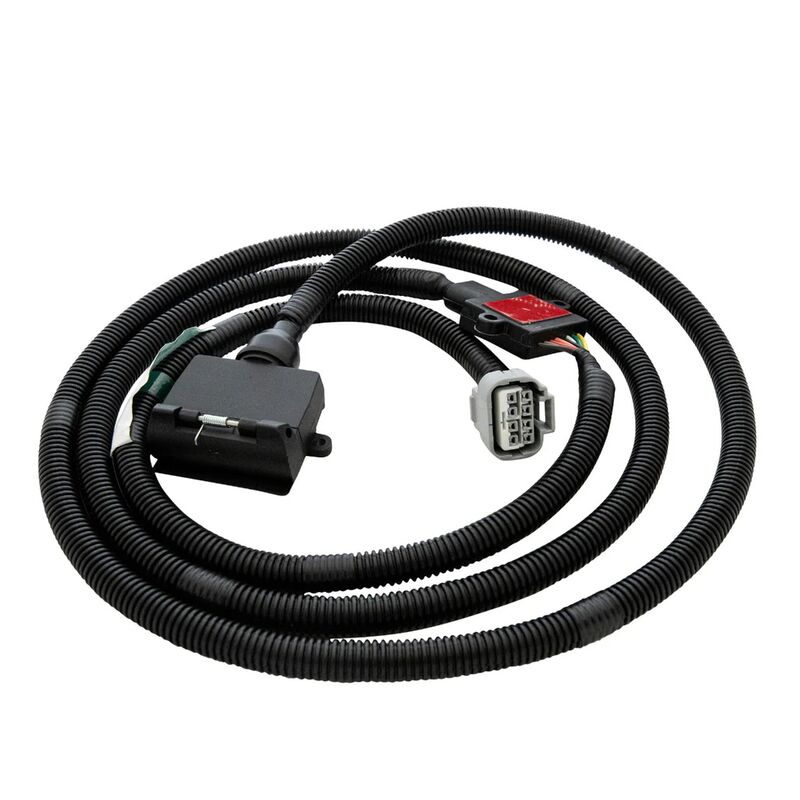

TAG Towbar Wiring Direct Fit - ECU

TAG 7 Pin Flat Socket - Vehicle Side
